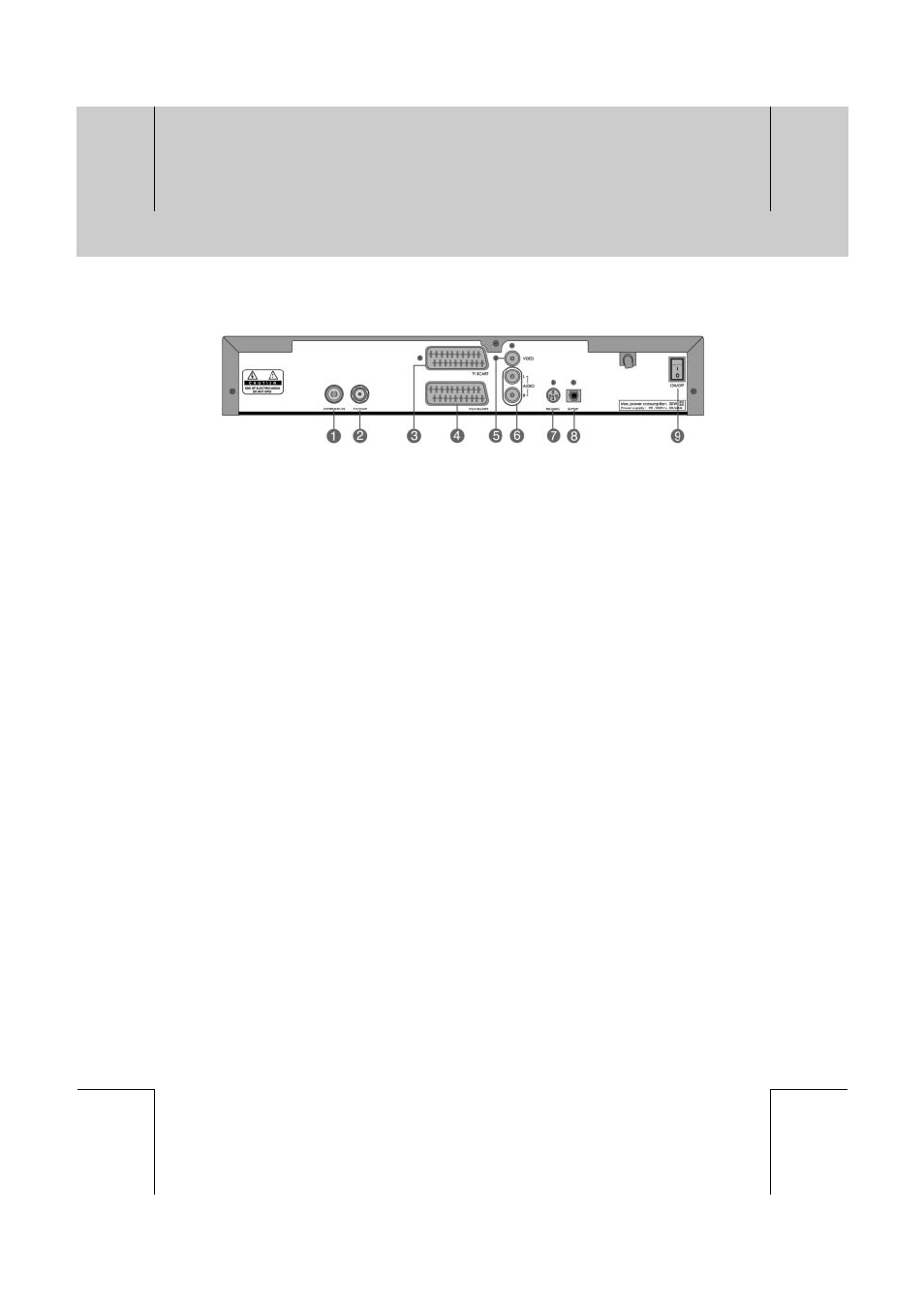

1.3 Rear Panel
**
1. ANTENNA IN
**
Connects an Aerial to an Antenna input jack on the receiver.
2. TV / VCR
**
Connects a RF signal from your receiver to RF (ANT) input jack on your TV or VCR.
3. TV SCART
**
Connects to a TV using SCART cable.
4. VCR SCART
**
Connects to a VCR using SCART cable.
5. VIDEO
**
Connects to your TV or VCR using RCA cable to output Video signals.
6. AUDIO L/R
**
Connects to your TV or VCR using RCA cable to output Audio signals.
7. RS-232C
**
Connects to your PC to update product's software.
8. S/PDIF
**
Connects to a Digital Amplifier to output Digital Audio signals.
9. ON/OFF
**
Power on/off.
**
