5. Assemble the outer rails by completing the following steps:
a. As an aid in assembly, two rubber washers have been included to help
keep the rear slotted portion of the outer rail flush against the rear
rail-tray brackets. Install them as shown in
Figure 6 .

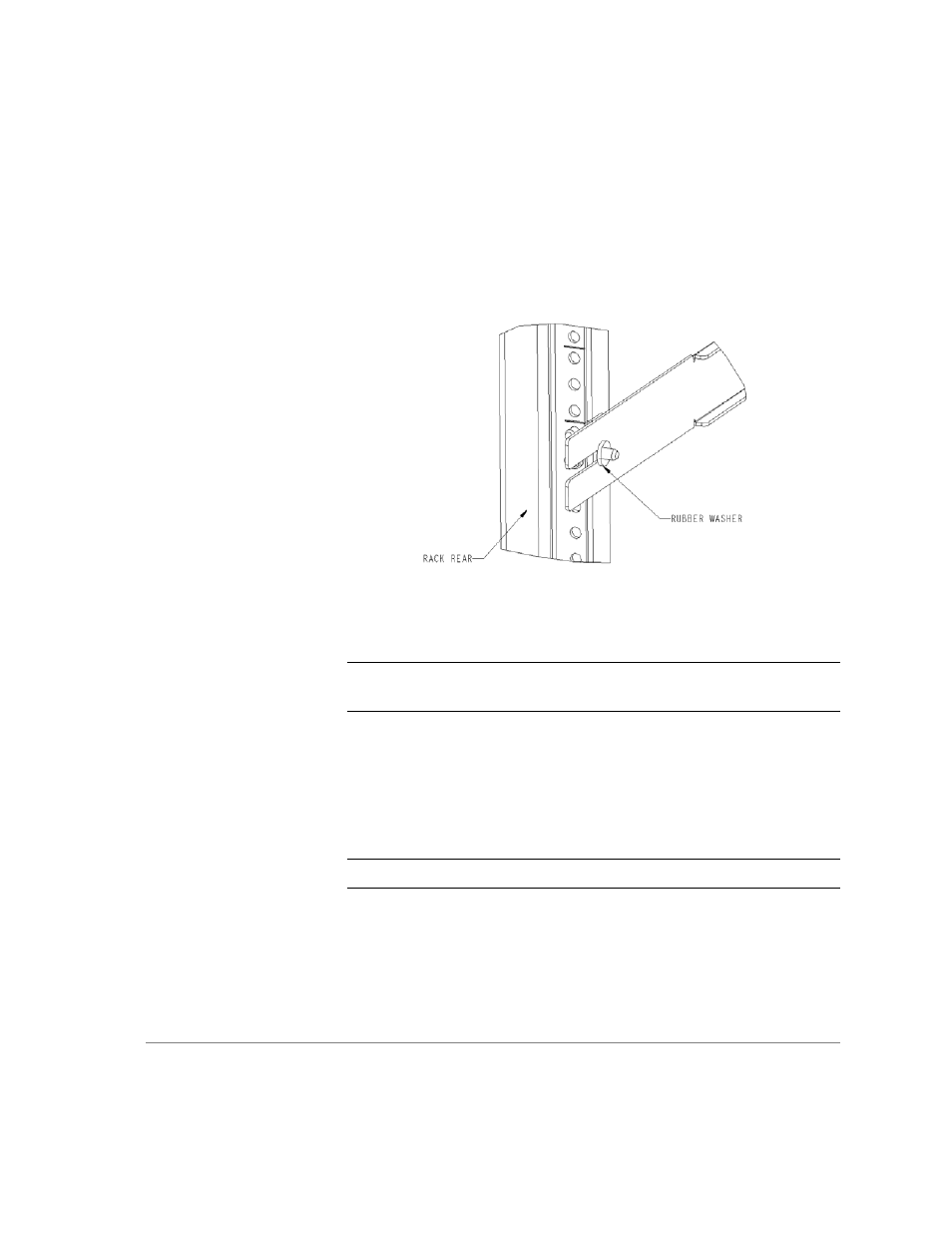

Figure 6. Installing the Rubber Washers
b. Insert the alignment pins attached to the outer rail front flange into the
center opening in the rack.
Note For the Compaq/Rittal rack, the alignment pins will be resting on
the top surfaces of the spacers.
c. Depending on the rack you are using, complete one of the following
tasks:
– For an HP rack, install one M5 Torx screw in the upper hole
location of the right rail. Then, install one M5 Torx screw in the
lower location of the left rail. See
Figure 7 .
Note Do not install the upper left and lower right screws until later.
