72
VII. Technical Information

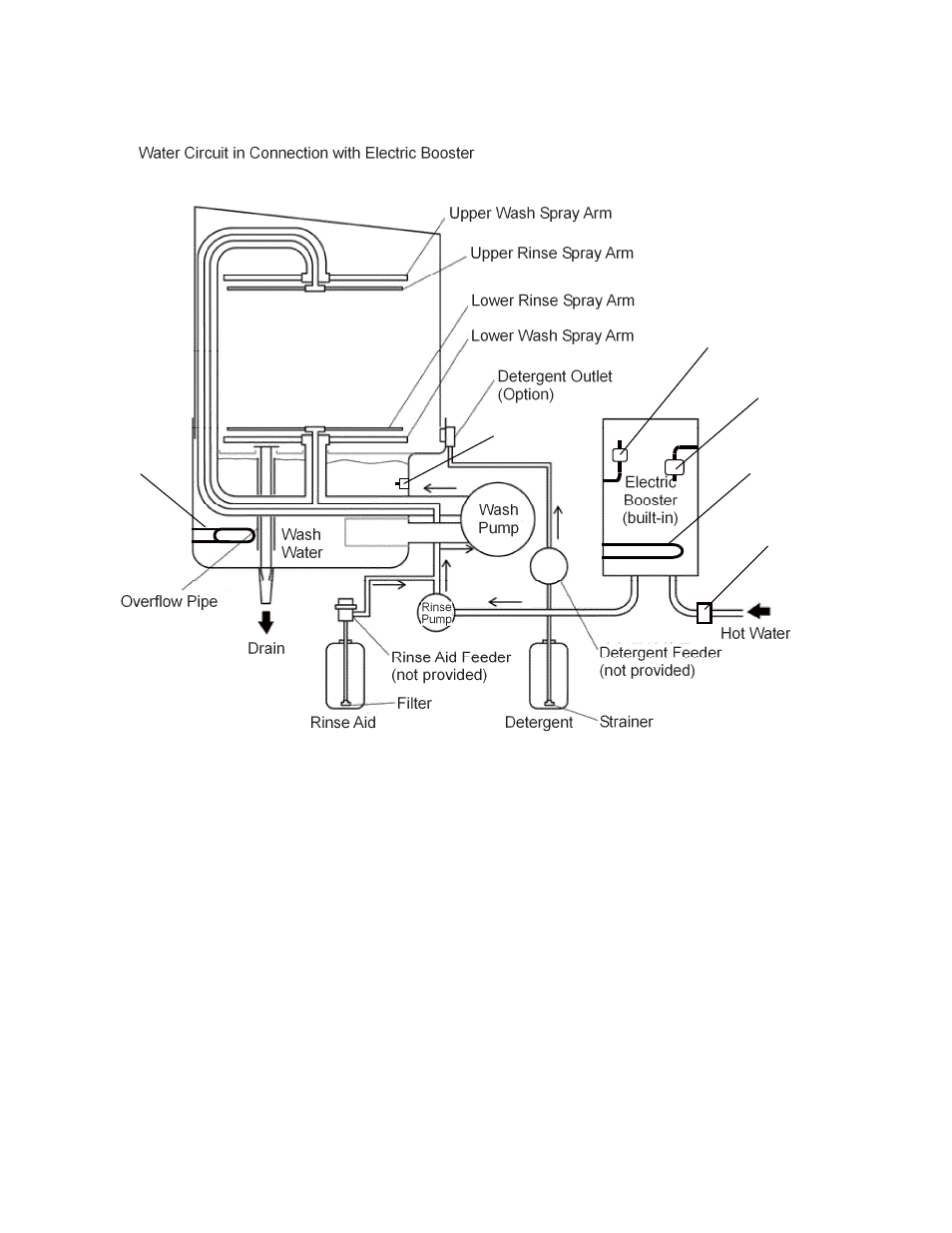

A. Water Circuit
• The wash water is sprayed by the wash pump from the upper and lower wash spray
arms into the wash compartment.
• The rinse water is sprayed by the rinse pump from the upper and lower rinse spray arms
into the wash compartment.
• The detergent is fed by the detergent feeder (not provided by Hoshizaki) through the
detergent outlet (not provided by Hoshizaki) into the wash tank.
• The rinse aid is fed by the rinse aid feeder (not provided by Hoshizaki) into the rinse
water line and sprayed from the upper and lower rinse spray arms into the wash
compartment.
Inlet Water Valve
Water Level Float Switch
Internal Booster
Tank Heater
Backup Water Level
Float Switch
Water Tank
Heater
Water Level
Sensor
Wash Compartment
