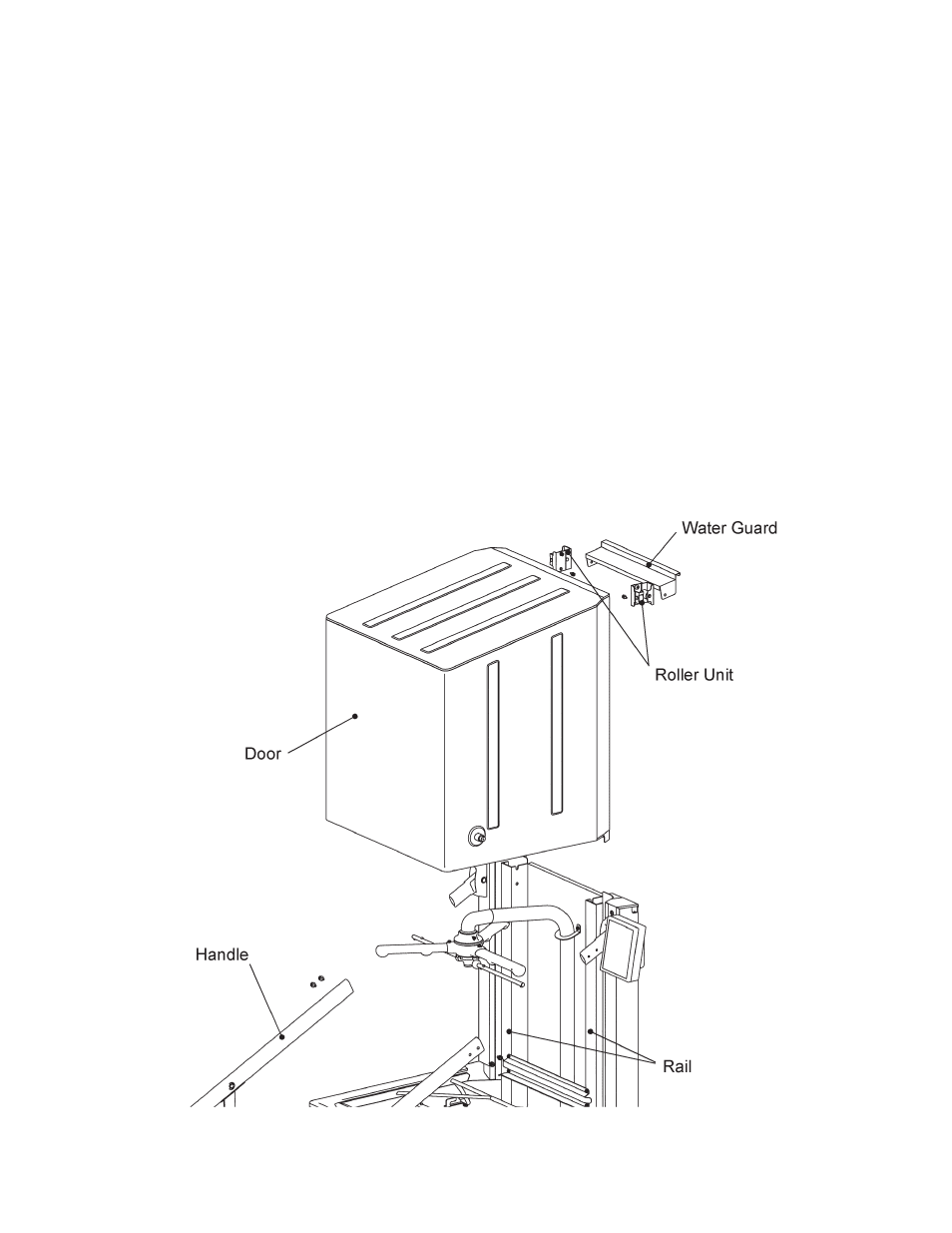

G. Removal and Replacement of Door
To remove:
1) Open the door. Remove the lower screws securing the roller units from inside the
wash compartment, then loosen the upper screws. NOTICE! Never remove the
upper screws, or the roller units will fall into the rails, and the door cannot be
removed. If the roller units should fall into the rails, use a piece of sheet metal
with a hooked end or a wire (2 mm dia) with a v-shaped end to pick up the roller
units.
2) Remove the water guard (secured with the lower roller unit mounting screws).
3) Remove the handle. WARNING! To reduce the risk of injury, follow the
instructions in “IV.F. Removal and Replacement of Handle.”
4) Lift off the door.
To replace:
1) Fit the roller units into the rails with the upper mounting screws held in place.
2) Position the door into the rails, and fi t the door into place. The roller unit and screw
positions should be aligned.
3) Attach the handle.
4) Open the door, reinstall the water guard, and screw the roller units from inside the
wash compartment.
5) Check the door for proper movement.
