HP ze2300 User Manual
Page 148
5–48
Maintenance and Service Guide
Removal and Replacement Procedures

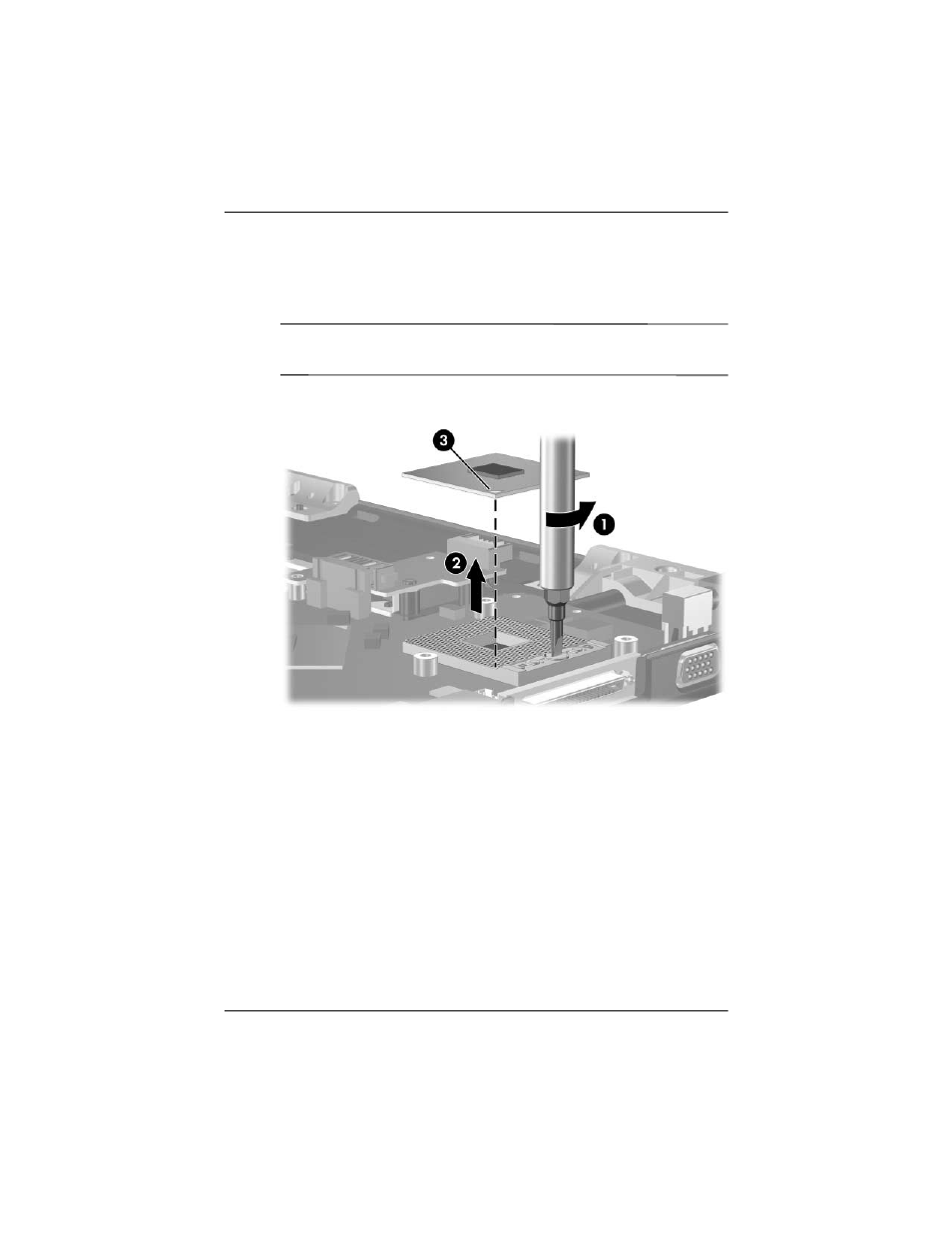

2. Turn the processor locking screw 1 one-quarter turn
counterclockwise until you feel a click.
3. Lift the processor 2 straight up and remove it.
✎
The gold triangle 3 on the processor should be aligned in the
front right corner when you install the processor.
Removing the Processor
Reverse the above procedure to install a processor.
