HP ze2300 User Manual
Page 109
Removal and Replacement Procedures
Maintenance and Service Guide
5–9
7. Remove the four PM2.5×4.0 screws 1 that secure the hard
drive frame to the hard drive.
8. Lift the frame 2 up to remove if from the hard drive.
9. Slide the hard drive connector 3 toward you and remove it.

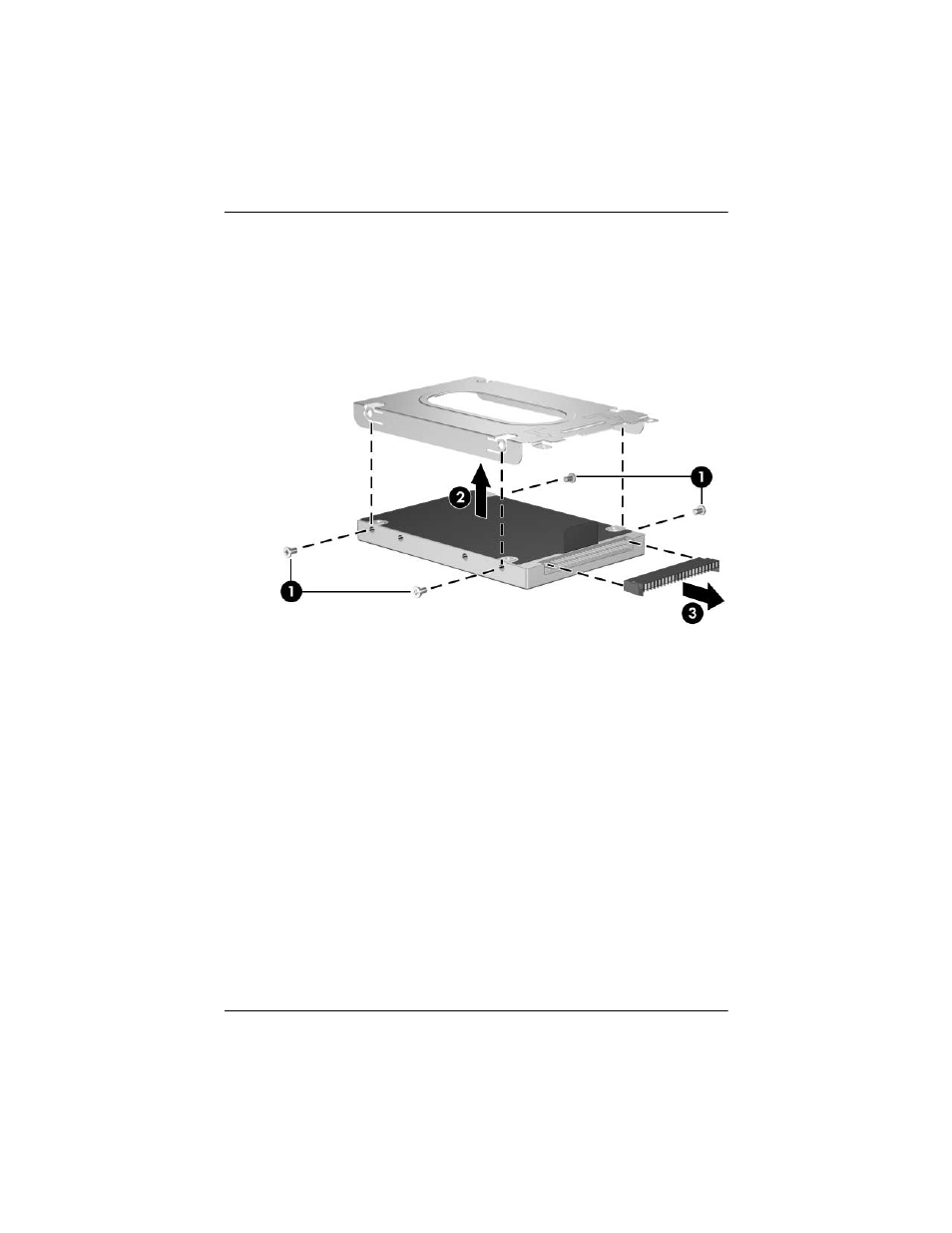

Removing the Hard Drive Frame and Connector
Reverse the above procedure to reassemble and install the
hard drive.
