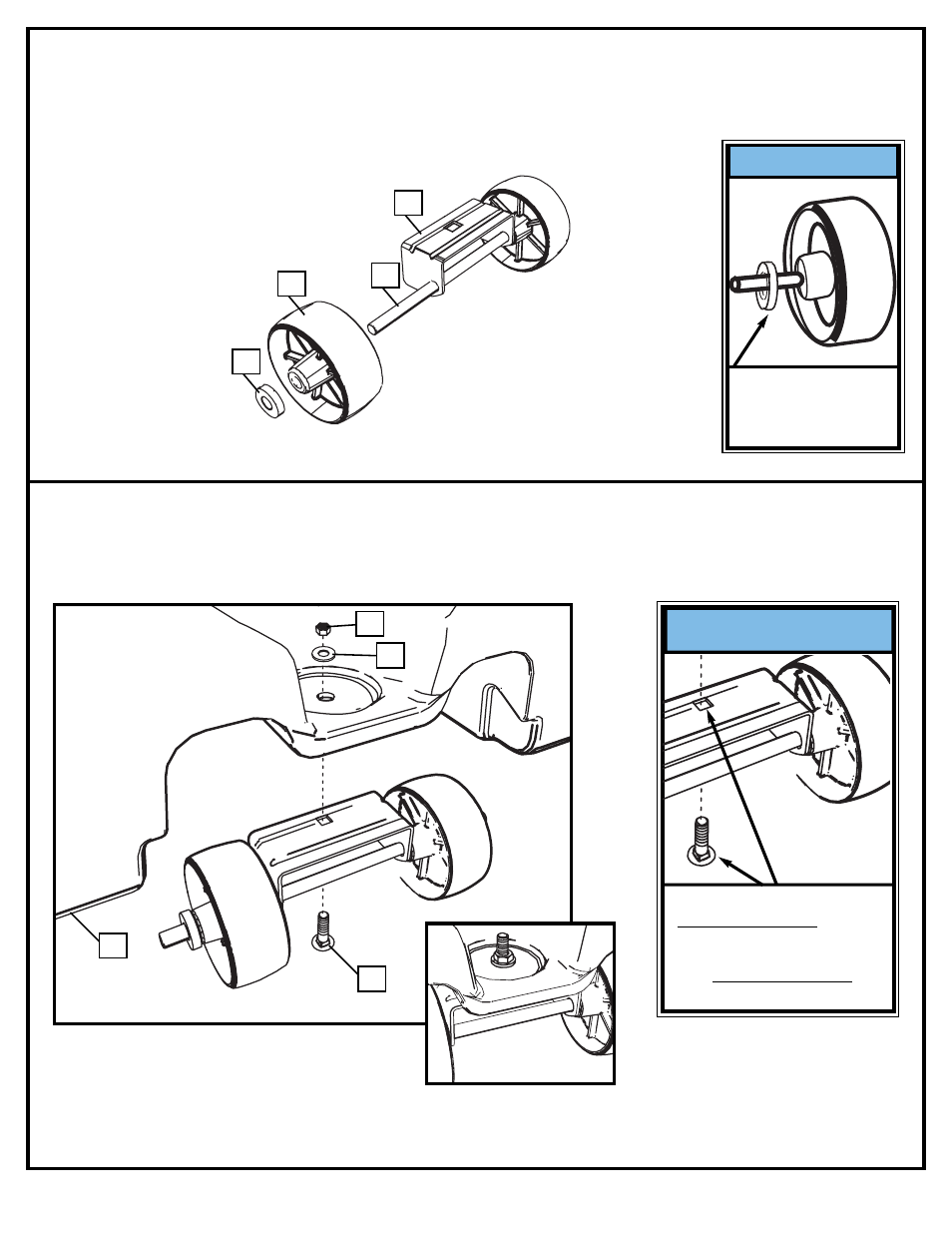

Attach wheel carriage assembly to base (1) with bolt (13), washer (22), and
nut (7) as shown. FINGER TIGHTEN - NO TOOLS REQUIRED. Assembly
will be fully tightened in next step.
3.
4.
9
2
3
10
1
13
7
22
Install wheel axle (2) through wheel bracket (9) and install wheels (3) onto
wheel axle (2) with spacers (10) as shown.
THE SPACER (10) WILL
FIT LOOSELY UNTIL
SECURED INTO THE
CAVITY OF THE BASE.
IMPORTANT!:
BE SURE THAT THE
SQUARE PORTION OF THE
CARRIAGE BOLT IS
PROPERLY SEATED IN
THE SQUARE CUT-OUT OF
THE WHEEL BRACKET.
IMPORTANT!:
