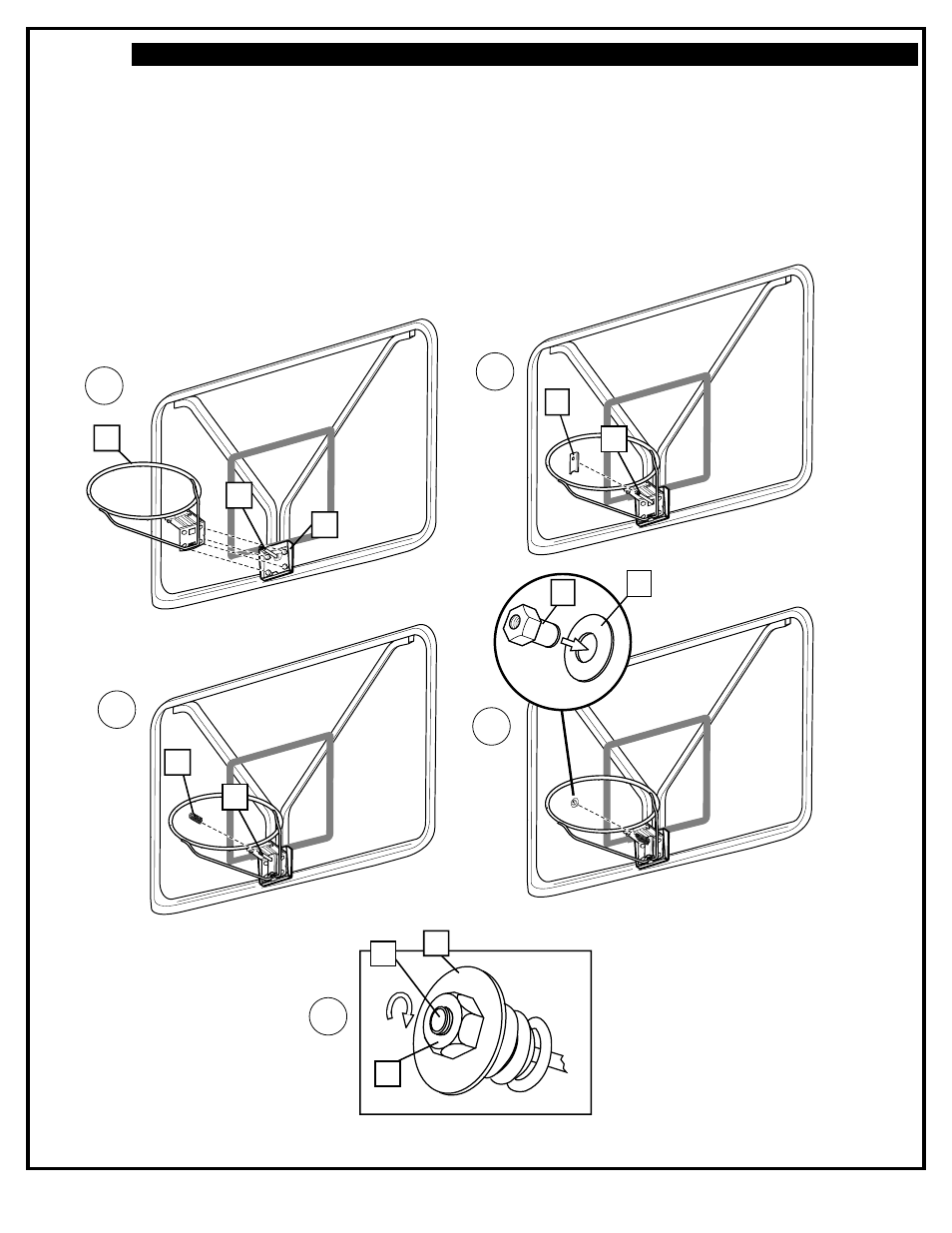

Install Slam Jam Rim to Backboard
18
29
27
31
30
A
B
C
D
E
A • Fit rim (18) securely into bracket (26) as shown (Allow "T"-bolt (27) to slip through
center hole in rim (18).
B • Install reinforcement bracket (28) onto “T” bolt (27) as shown.
C • Install spring (29) onto “T” bolt (27) as shown.
D • Install special nut (30) and washer (31) onto “T” bolt (27).
E • Tighten nut (30) until flush with end of “T” bolt (27).
27
27
8.
