3

598-1316-03

4. Plug the solar panel cable into the side of the

sensor housing. Note: Allow extra cable to hang

below the sensor housing for water to drip off

cable (drip loop).

IMPORTANT:

Allow the batteries to charge

with two days of sunshine before testing.

RECHARGEABLE

ONLY

AA SIZE

AA SIZE

AA SIZE

RANGE

ON-TIME

MIN MAX

OFF

TEST

1 MIN

5 MIN

Drip Loop

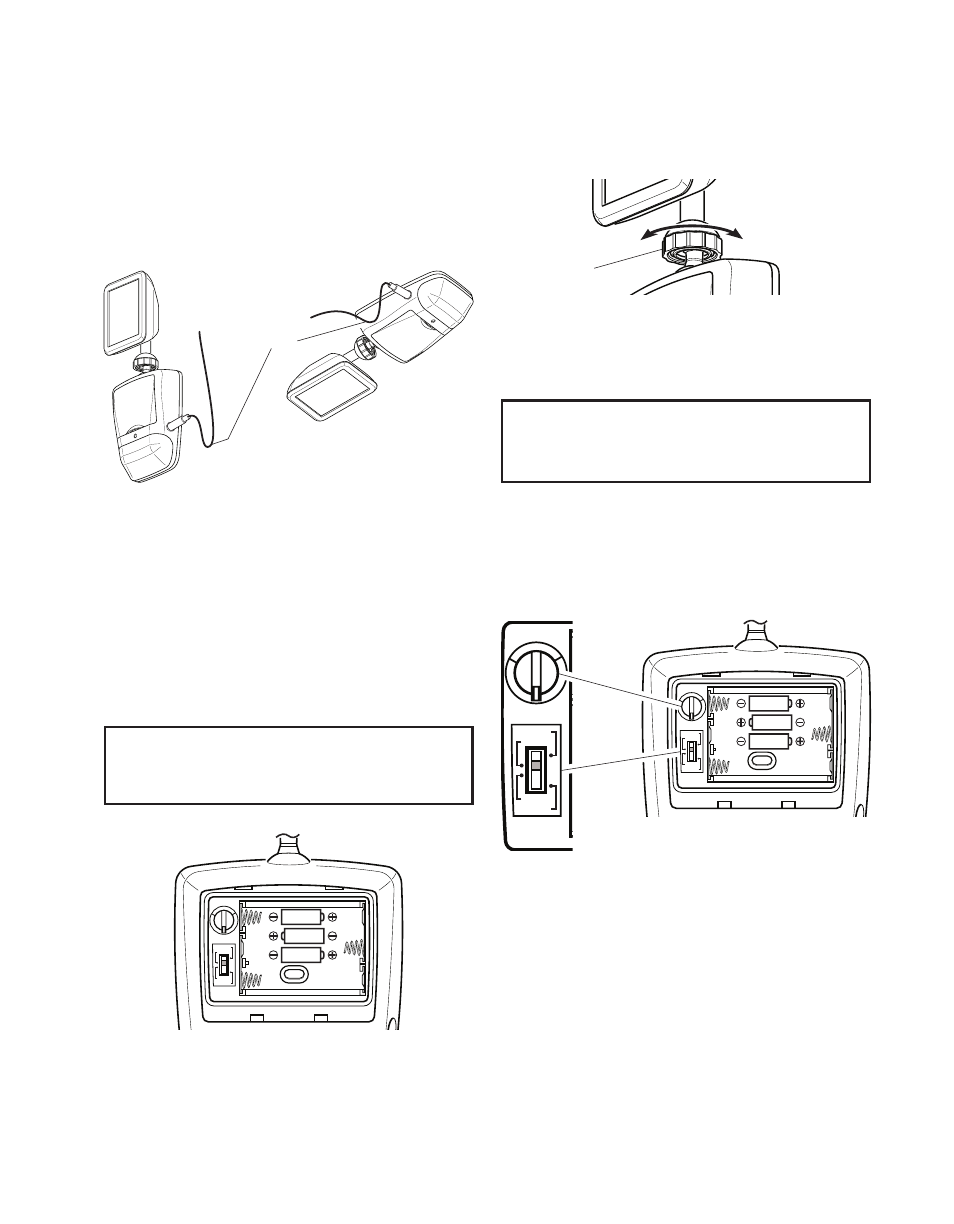

Forming a Drip Loop in the Solar Panel Cable

Wall mount

eave mount

5. Install 3 Ni-Cd rechargeable AA batteries

(included) into battery compartment according

to markings. Note: Rechargeable batteries will

eventually lose their ability to hold a charge.

When this happens, replace with Ni-Cd or

Ni-MH rechargeable AA batteries available

at most stores.

Install Batteries in Battery Compartment

test anD aDJustment

Note:

Sensor has a 30 second warm up period

before it will detect motion. When switching

modes wait 30 seconds.

1. Slide the sensor switch to the TEST position.

2. Place the RANGE adjustment in the medium

position (halfway between MIN and MAX

position).

RECHARGEABLE

ONLY

AA SIZE

AA SIZE

AA SIZE

RANGE

ON-TIME

MIN MAX

OFF

TEST

1 MIN

5 MIN

Controls in Battery Compartment

6. To adjust light direction, loosen lock nut and

rotate light to desired position. Tighten lock

nut.

Turning Lock Nut

Lock Nut

nOtice: When replacing rechargeable batter-

ies, recycle used batteries or dispose of them

in accordance with local regulations.

RECHARGEABLE

ONLY

AA SIZE

AA SIZE

AA SIZE

RANGE

ON-TIME

MIN MAX

OFF

TEST

1 MIN

5 MIN
