Cabling 41

4.

Connect the following to the USB hub:

o

USB CD/DVD-ROM drive

o

USB keyboard

o

USB mouse

o

USB diskette drive

NOTE:

Use a USB hub when connecting a USB diskette drive and/or USB CD-ROM drive to

the server blade. The USB hub provides additional connections.

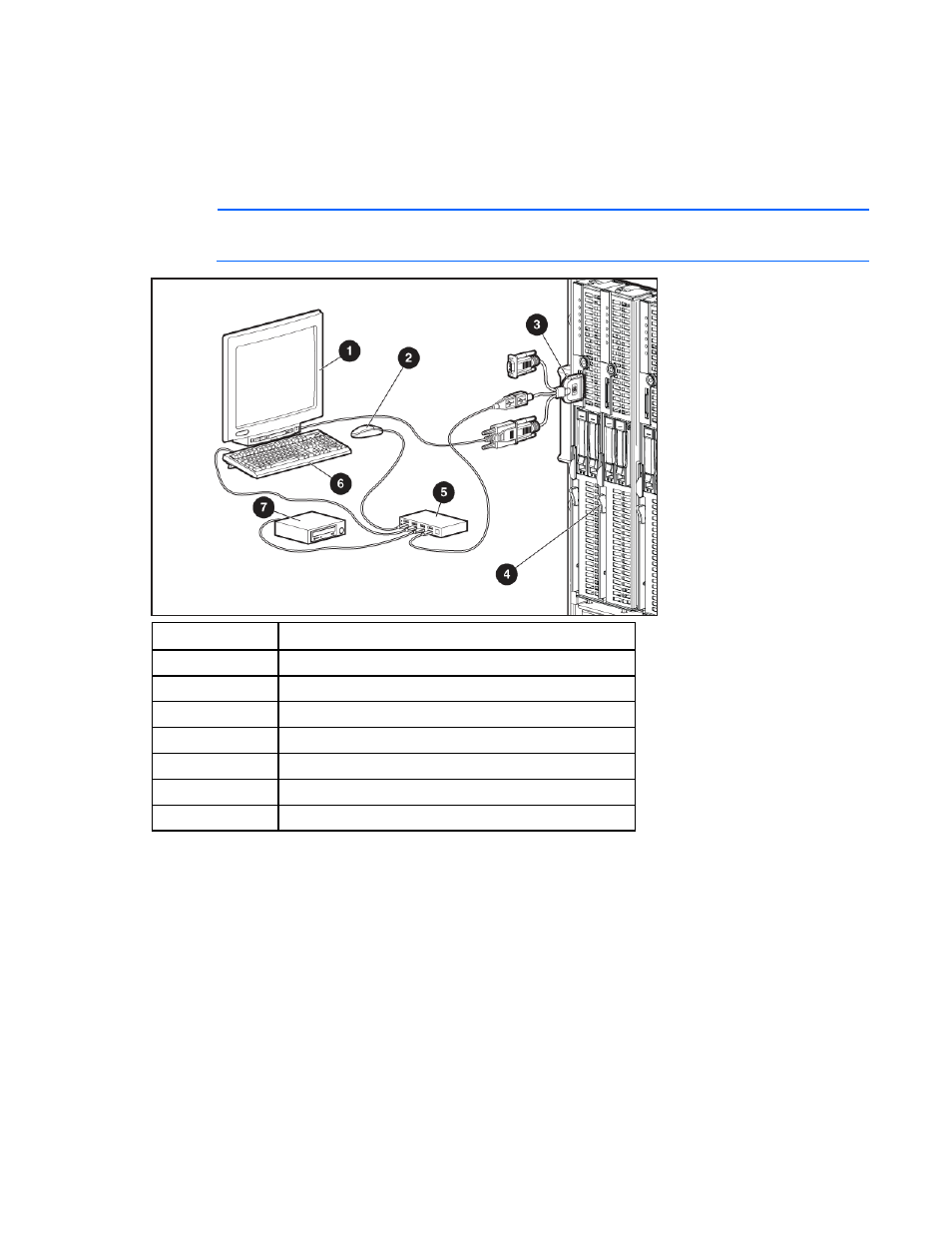

Item Description

1 Monitor
2 USB

mouse

3

Local I/O cable

4 Server

blade

5 USB

hub

6 USB

keyboard

7

USB CD/DVD-ROM drive or diskette drive
