Cabling 39

Cabling

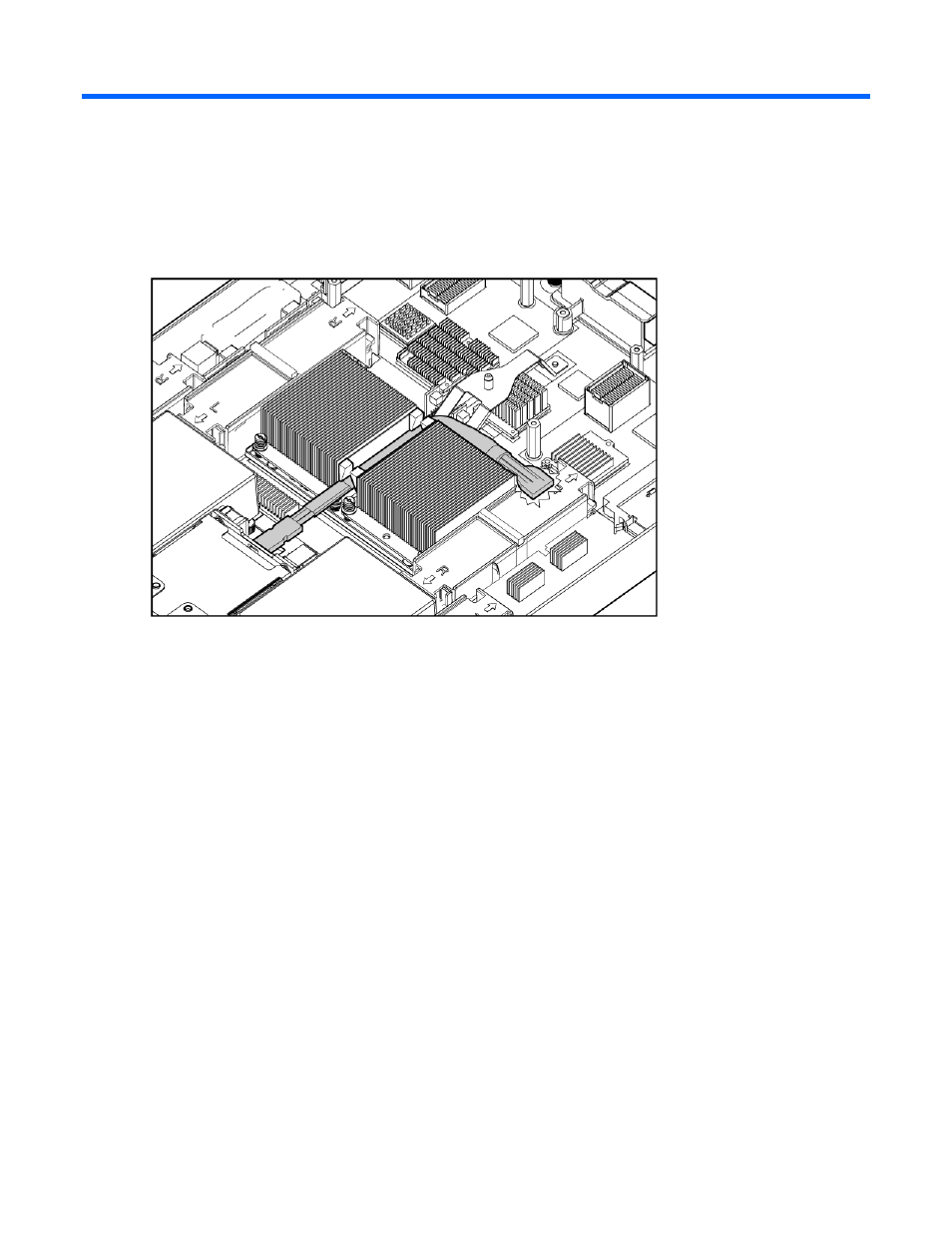

SAS cable routing

Using the local I/O cable

The local I/O cable enables the user to perform server blade administration, configuration, and

diagnostic procedures by connecting video and USB devices directly to the server blade. For local I/O

cable connectors, see "Local I/O cable (on page

13

)."

Connecting locally to a server blade with video and

USB devices

Use the local I/O cable to connect a monitor and any of the following USB devices:

USB hub

USB keyboard

USB mouse

USB CD/DVD-ROM drive

USB diskette drive

Numerous configurations are possible. This section offers two possible configurations. For more

information, see "USB support and functionality (on page

56

)."
