HREP Color Digital Video Recorder User Guide
Document 800-06847 Rev B
91
08/10

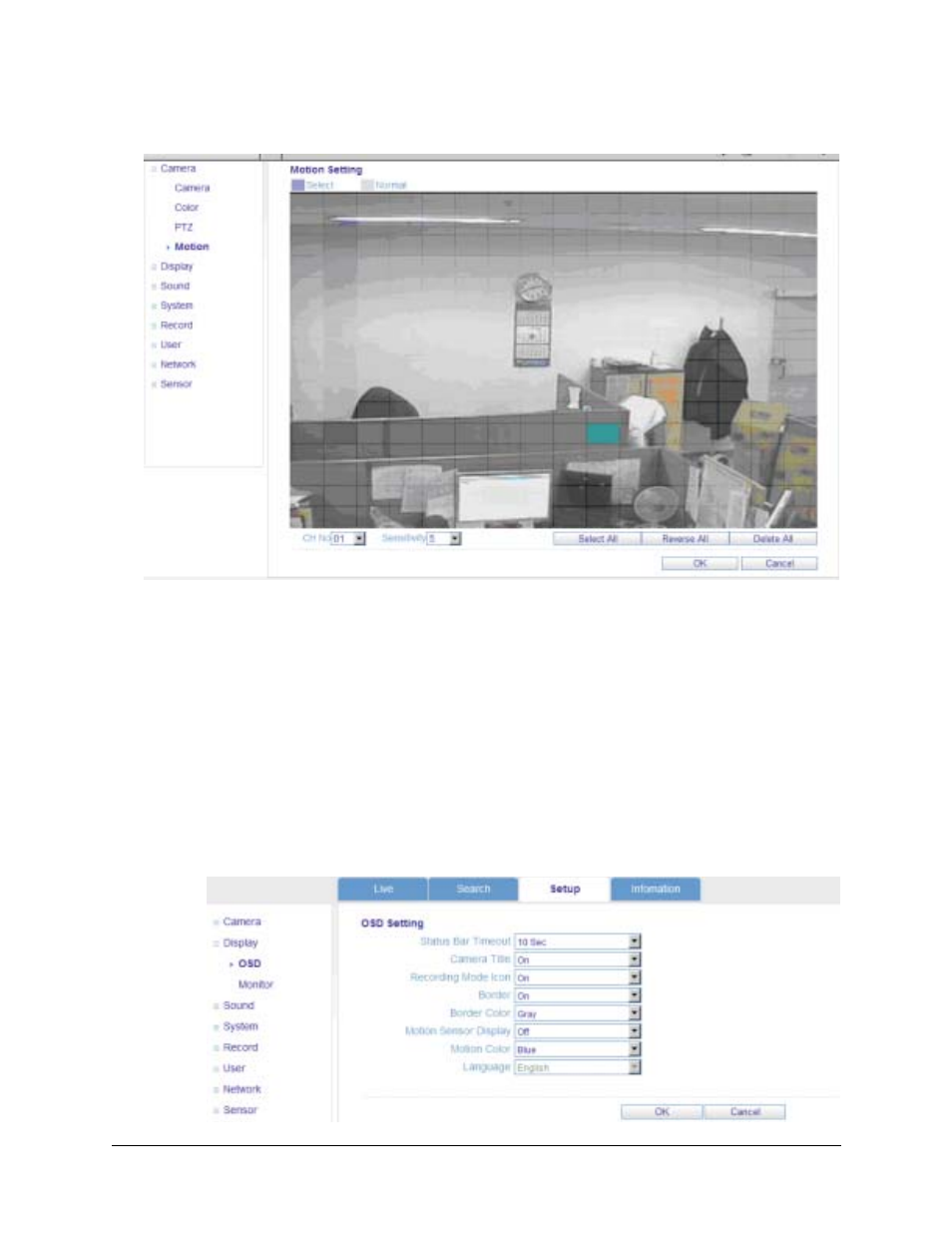

Figure 4-13
Motion Setting Configuration Window
2. Select a channel and a sensitivity level.
3. Drag your mouse on the image to select a detection area.
4. Click OK.
See
Configuring PTZ Camera Parameters
on page
31
for more information.
Configuring the On-Screen Display
You can choose which text items display over the image.
Click OSD under Display in the field on the left. The OSD Setting window opens.
Figure 4-14
OSD Setting Window
