HREP Color Digital Video Recorder User Guide
Document 800-06847 Rev B
59
08/10

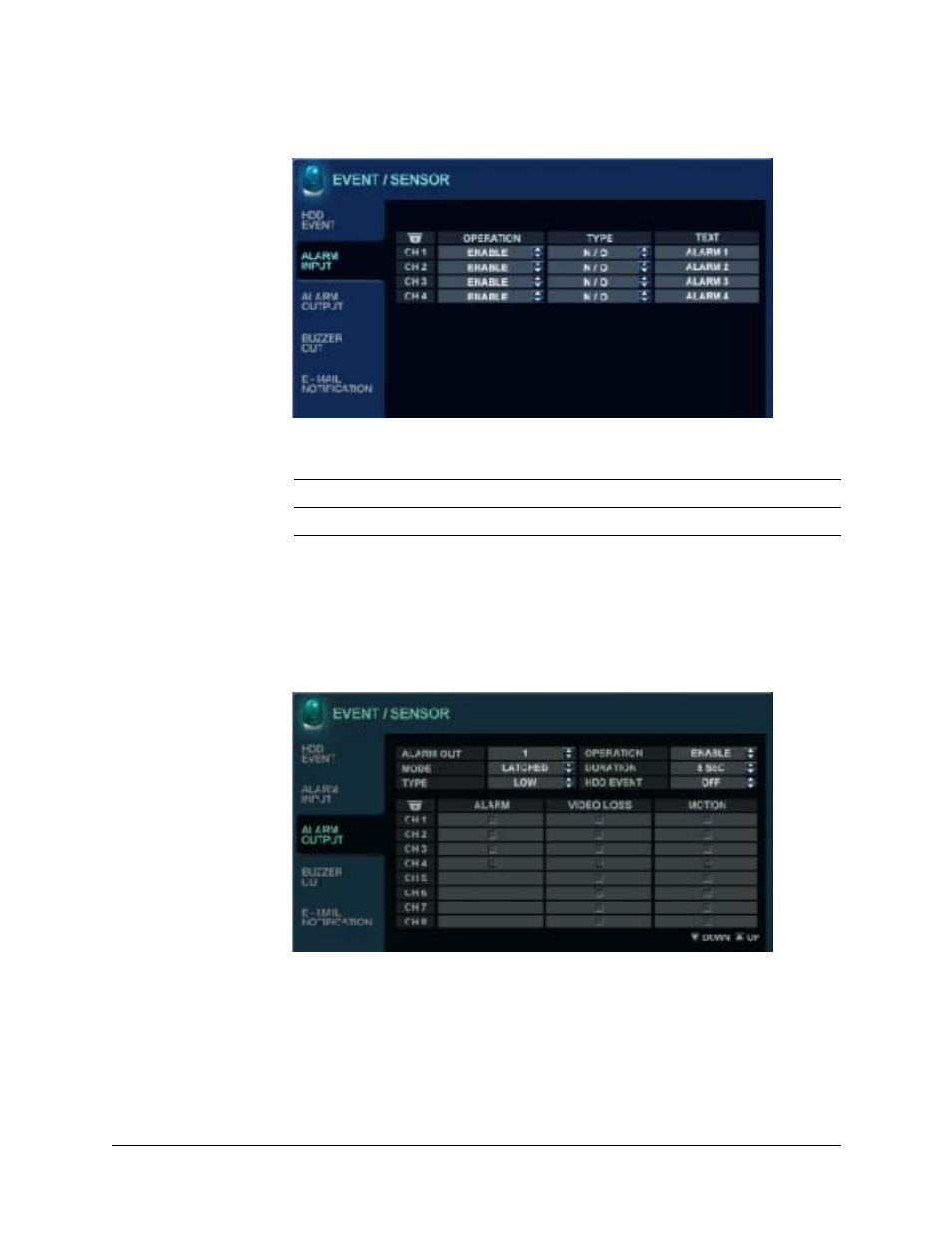

Figure 2-52
ALARM INPUT Setup Menu
2. Click OPERATION and TYPE to edit those settings to determine the behavior of each
of the alarm inputs:
Configuring Alarm Output
1. Click ALARM OUTPUT on the left side of the EVENT/SENSOR window.
The ALARM OUTPUT setup menu appears.
Figure 2-53
ALARM OUTPUT Setup Menu
The settings you choose for Alarm Output determine the behaviors and actions that will
trigger each of the alarm outputs on your DVR.
OPERATION
Enable/disable alarm inputs.
TYPE
Set alarm inputs to N/O (normally open) or N/C (normally closed).
