Heatilator • BCBV36 • 4008-033 • Rev F • 12/08 31
G. Place the Vermiculite
• Sprinkle vermiculite evenly over the areas covered by lava
rock. See Figure 14.4.
H. Place the Rockwool
WARNING! Risk of Explosion! Follow rockwool placement
instructions. DO NOT place rockwool directly over burner
ports. Replace rockwool material annually. Improperly
placed rockwool interferes with proper burner operation.
• Rockwool is shipped with this gas appliance.
• Place 1/2 in. (13 mm) diameter pieces of rockwool under
front log, on lower portion of burner tube.
• Place rockwool the full length of the burner.
• Do not pack tightly against the burner.

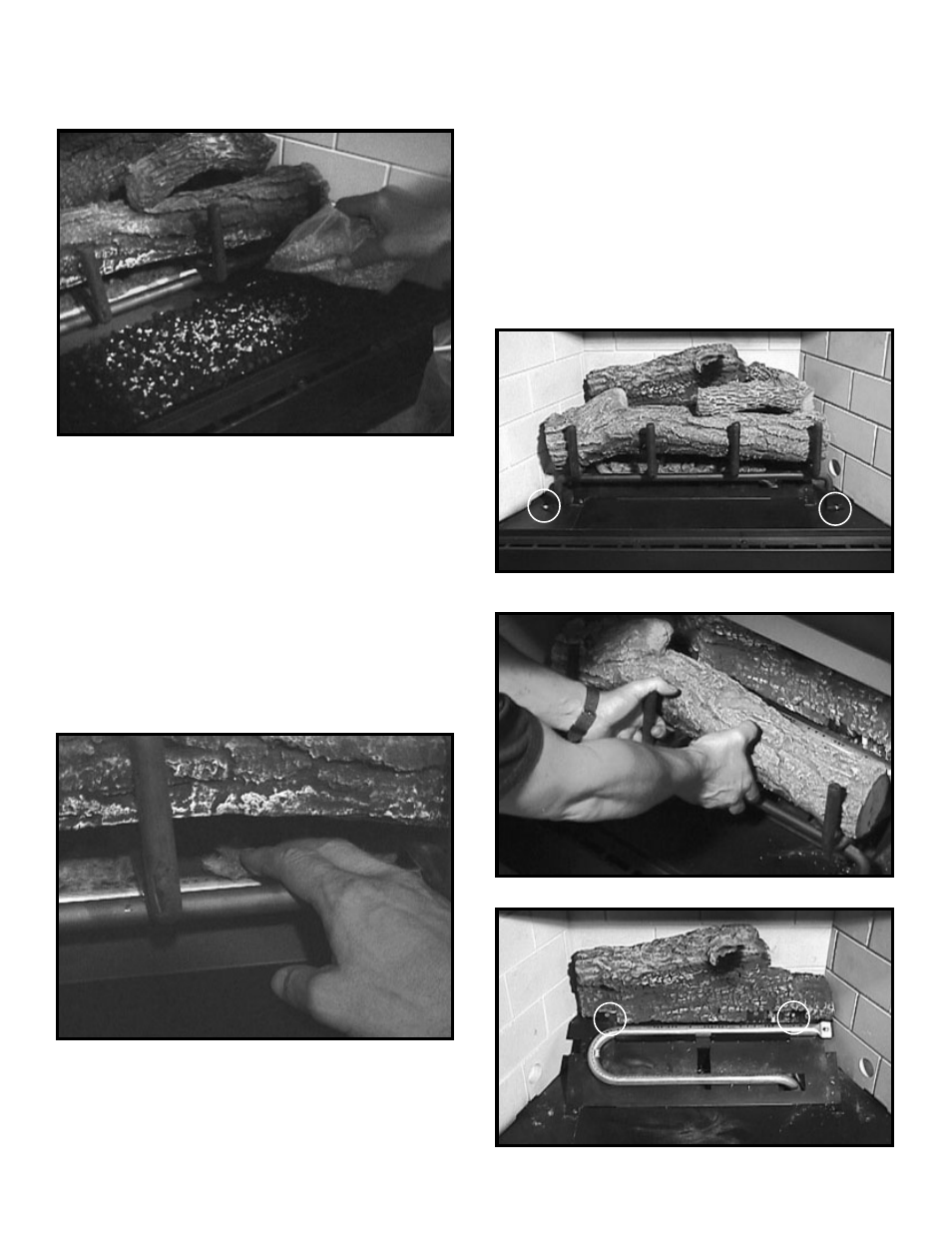

Figure 14.4 Placing the Vermiculite
Figure 14.5 Placing the Rockwool
I. Log Removal/Replacement
• Remove the lava rock from the appliance and save.
• Remove the top log which sits in the indents in the front
log.
• Remove the two screws holding the front grate/log
assembly in place (one per side from the hearth pan).
See Figure 14.6.
• Pull forward on the assembly to remove it from the
appliance and set aside. See Figure 14.7.
• Remove the two screws holding the back log in place.
Carefully lift off and set aside. See Figure 14.8.
• Reverse the order of the steps above to reinstall the
logs.
Figure 14.7 Remove Grate/Log Assy.
Figure 14.8 Remove Screws Holding Back Log
Figure 14.6 Remove Two Screws Holding Front Grate/Log Assy.
