Heatilator • BCBV36 • 4008-033 • Rev F • 12/08 30
14 14
Appliance Setup
A. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
fi rebox.

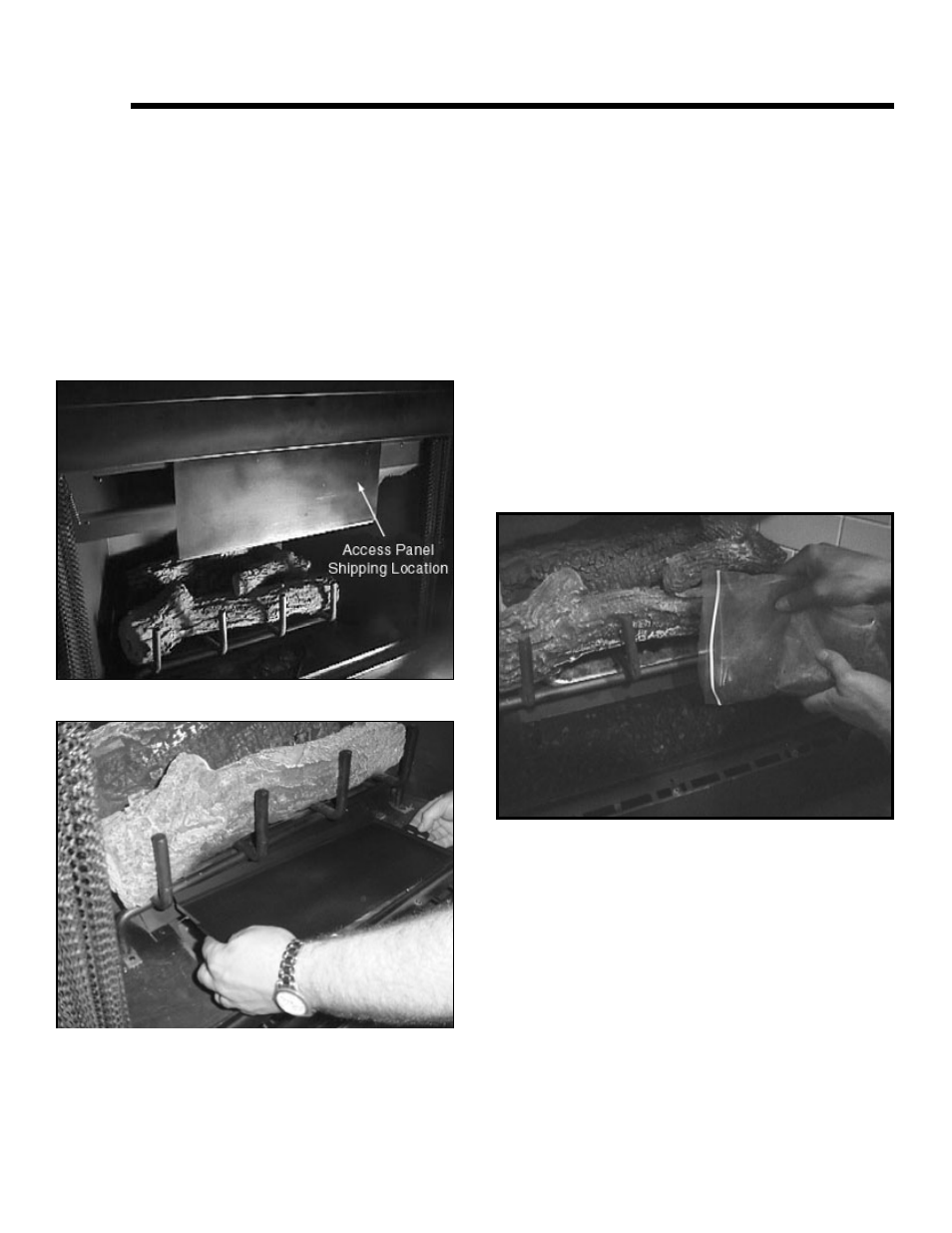

Figure 14.1 Control Access Panel Shipping Location
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories. Refer to Section 16.
F. Place the Lava Rock
• Place lava rock on top of control access panel in front
of, under and around the burner. See Figure 14.3.
Figure 14.2 Control Access Panel Installation/Removal
E. Install the Refractory
The refractory is an optional component. Refer to the
installation instructions included with the refractory.
Figure 14.3 Placing the Lava Rock
B. Place the Control Access Panel
• Remove the control access panel from its shipping
location (Figure 14.1) by removing two screws holding
it in place.
• Replace the two screws.
• Place the panel (painted side up, angle fl ange to the
back) into the compartment opening. See Figure 14.2.
