CUSTOMER CONTROLS - 9 -
18
19
20
21
22
23 AUDIO IN L, R jacks
VIDEO IN jack
IN FROM ANT. - signal input
OUT TO TV - signal out to TV
VIDEO OUT jack
AUDIO OUT L, R jacks

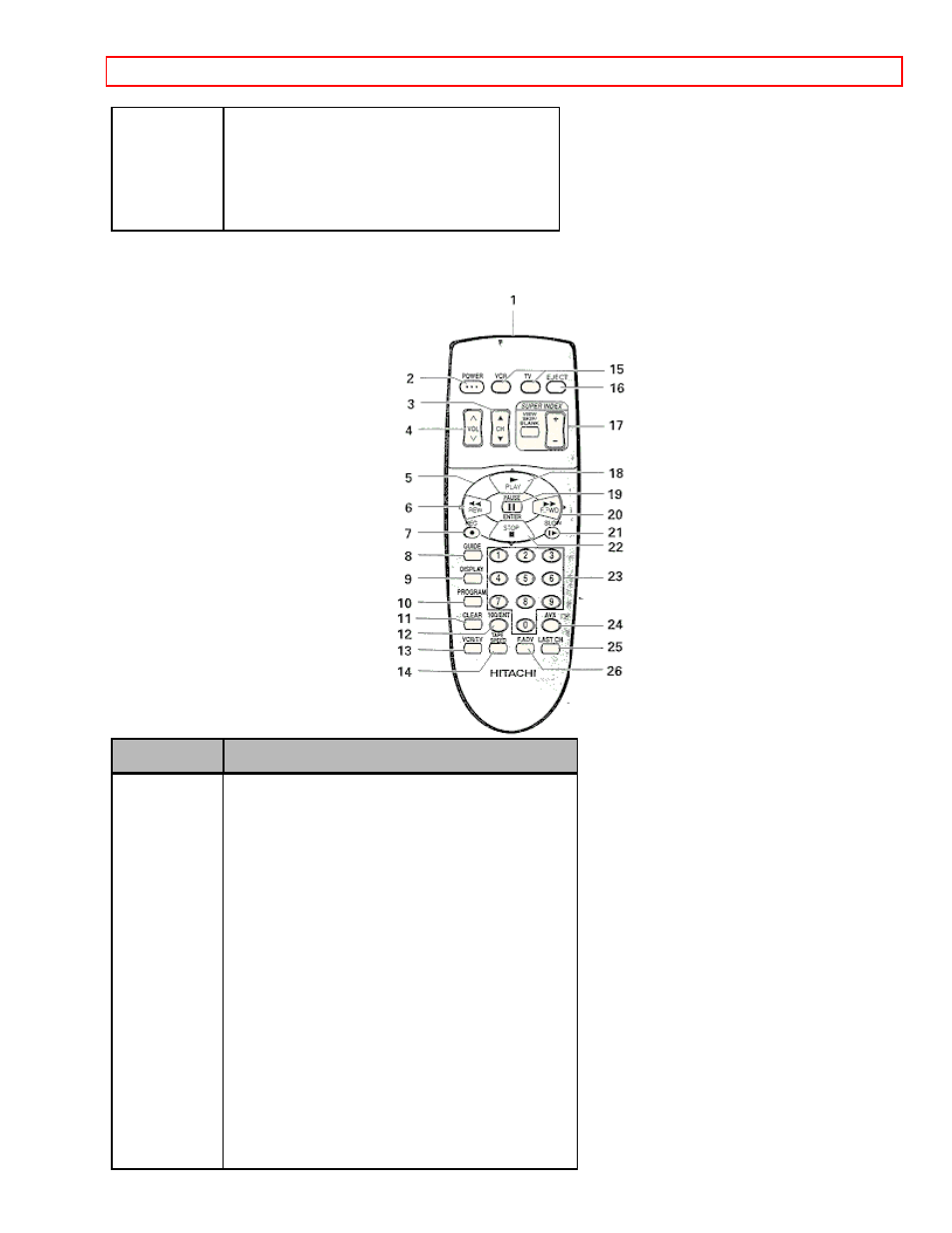

Remote Control Customer Controls
Item No. Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Transmission window
POWER button
CH (channel up/down) button
VOL button - increase or decrease
the audio volume
Cursor buttons
REW button - fast rewind or search
REC - record button
GUIDE - to recall OSD menu
DISPLAY- to recall on-screen display
PROGRAM (programming) button
CLEAR - clears time counter
100/ENT button
VCR/TV mode select button
TAPE SPEED button - select the recording speed
SP or EP
VCR, TV - Device buttons let
you set the remote to control one of the
two devices.
EJECT button
SUPER INDEX buttons - to use the
SUPER INDEX function
