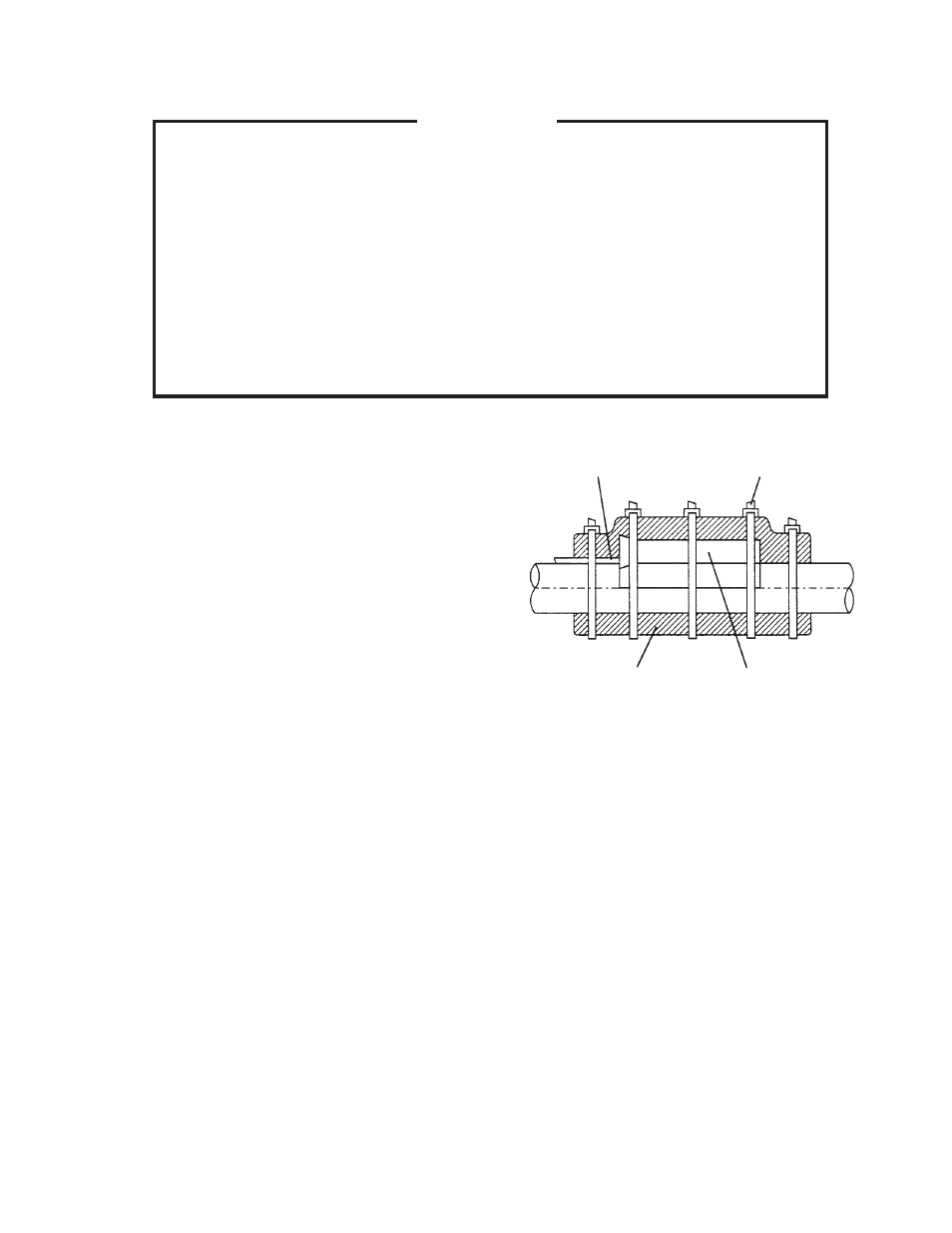

Fig. 2
Foam Insulation Thermistor Holder
Thermistor Lead Cable Tie
10. Removal and Replacement of Thermistor
CAUTION
1. Fragile, handle very carefully.
2. Always use a recommended sealant (high thermal conductive type),
Model KE4560RTV manufactured by Shinetsu Silicone, Part Code
60Y000-11, or Part Code 4A0683-01 or equivalent.
3. Always use a recommended foam insulation (non-absorbent type) or
equivalent.
4. Do not shorten or cut the thermistor leads when installing the thermistor.
1) Turn off the power supply, and unplug the
icemaker.
2) Remove the panels.
3) Remove the control box cover.
4) Disconnect the thermistor leads from
the K3 connector on the controller
board.
5) Remove the plastic cable ties, foam
insulation, thermistor holder and
thermistor. See Fig. 2.
6) Scrape away the old sealant on the thermistor holder and the suction pipe.
7) Wipe off moisture or condensation on the suction pipe.
8) Smoothly apply recommended sealant (KE4560RTV, Part Code 60Y000-11) to the
thermistor holder concave.
9) Attach the new thermistor to the suction pipe very carefully to prevent damage to the
leads. And secure it using the thermistor holder and recommended foam insulation.
10) Secure the insulation using the plastic cable ties.
11) Connect the thermistor leads through the bushing of the control box to the K3
connector on the controller board.
Note: Do not cut the leads of the thermistor while installing it.
