Non-combustible sealant, Flush hearth extension framing – Hearth and Home Technologies BIR42 User Manual
Page 42

42
Non-combustible Sealant
After completing the framing and applying the facing mate-
rials over the framing, a bead of non-combustible sealant
must be used to close off any gaps at the top and sides
between the fi replace and hearth.
Non-combustible Sealant
Note: The bottom of the fireplace
opening is 3-3/4 in. (95.3mm) above
the bottom of the fireplace. Finished
hearth must NOT extend above this
level.
Noncombustible Finishing Material
Protective Metal
Hearth Strip
30 in. Min.
Hearth Extension
1 in. (25.4 mm)
Micore and
1/2 in. (13 mm)
Durock
Finished
Floor
Bottom of
Fireplace Opening

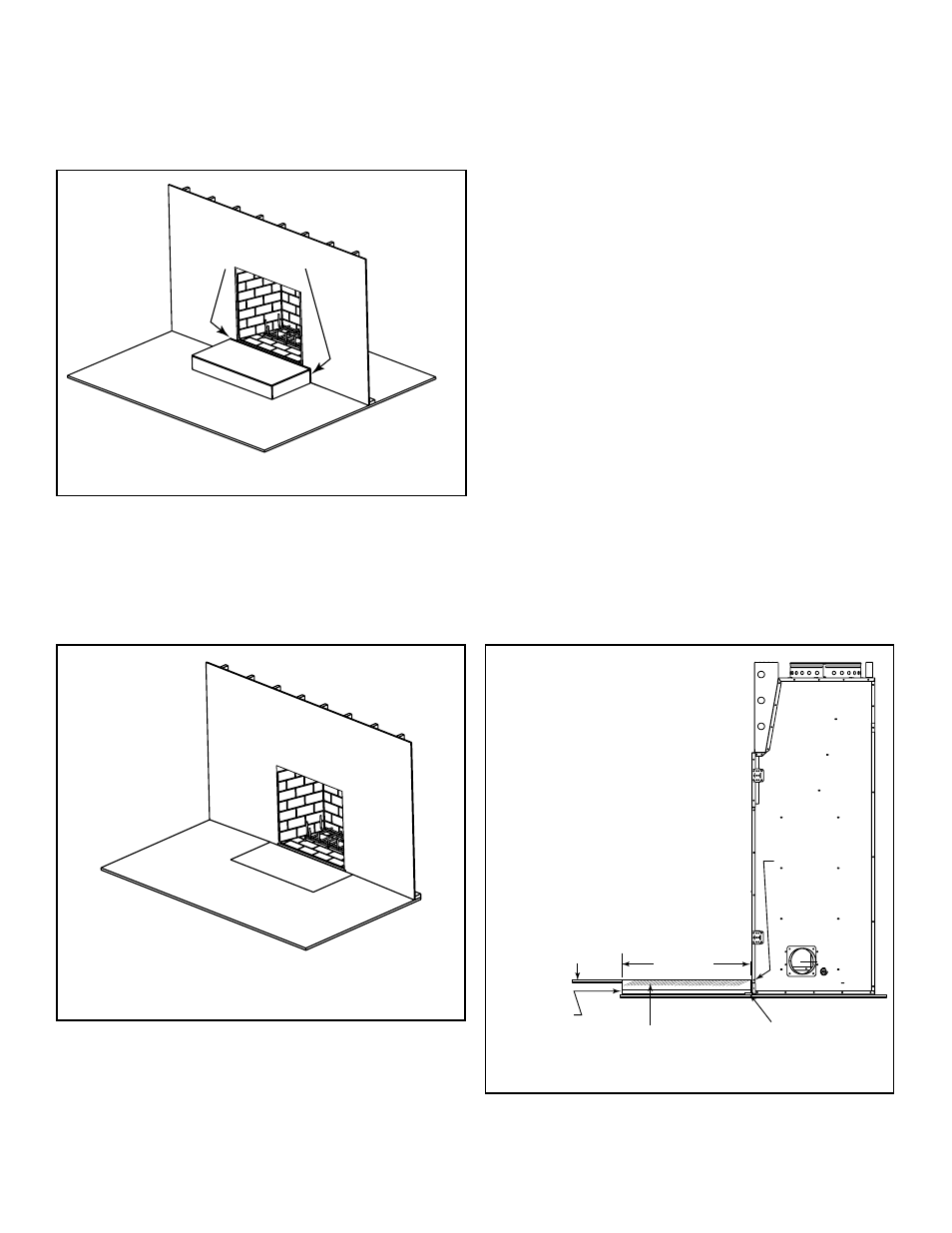

Figure 12.7 Flush Hearth Extension
Flush Hearth Extension Framing
• Fireplace must be recessed 3 3/4 in. (95.3 mm) below the
fi nished fl oor.
• Refer to Figures 12.7 and 12.8.
Figure 12.8 Flush Hearth Extension Side View
Figure 12.6 Place Non-combustible Sealant
Heatilator • Birmingham BIR42 • 4059-308 Rev E • 08/08
