46

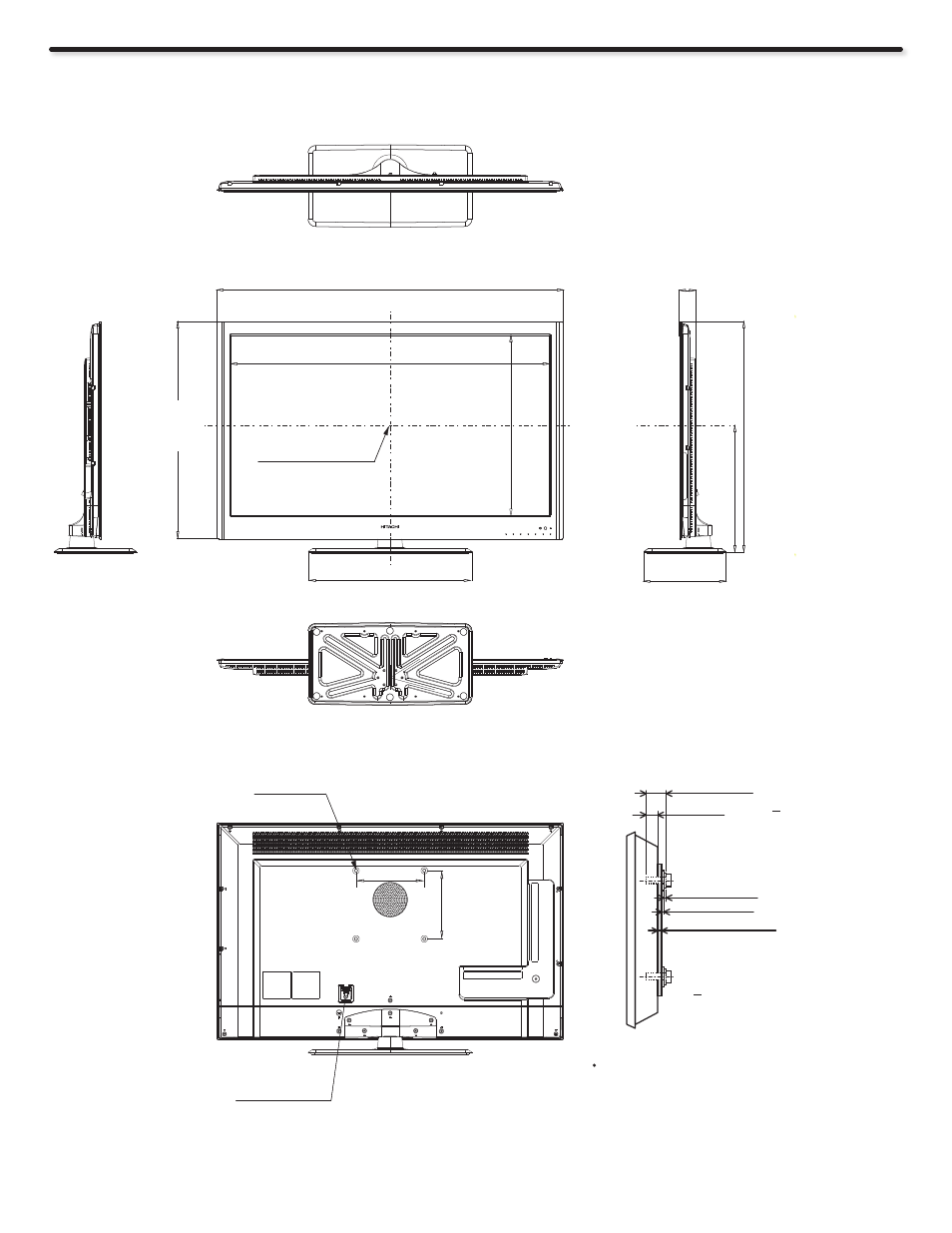

Set Dimensions
LE42S704 model (Includes Table Top Stand) Weight (lbs./kg): 38.6/17.5
Rear View
Use as Reference for Wall Mount Bracket
Units : Inches (mm)
The screw type : Thread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
25 (635.5)
36 3/4 (933.3)
(ACTIVE AREA)
18 7/8 (479.7)
20 3/4 (526.3)
(ACTIVE AREA)
14 3/4 (373.9)
26 5/8 (677.1)
CENTER OF THE SCREEN
1 7/8 (48.1)
9 1/2 (241.1)
LOCATION OF THE
POWER CORD
HOLE FOR
WALL MOUNT
(4 PLACES)
40 (1015.0)
7 7/8 (200.0)
7 7/8 (200.0)
Screw Length (A)
Insertion Length (B)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13.5~15.5 mm.
B: 8.5~10.5 mm.
C: 1 mm.
D: 1 mm.
E: 3 mm.
