Side Panel Connections
The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular
assortment of devices and features. For best performance, video and audio cables should be made from coaxial shielded wire.
There are four SIDE panel HDMI jacks provided as a convenience to allow you to easily connect HDMI or DVI signals from a DVD,
set top box, Video Game as shown in the following examples (When a DVI product is connected, the use of a separate audio device is
necessary for audio, use an Audio Amplifier and connect to the Audio In jacks).

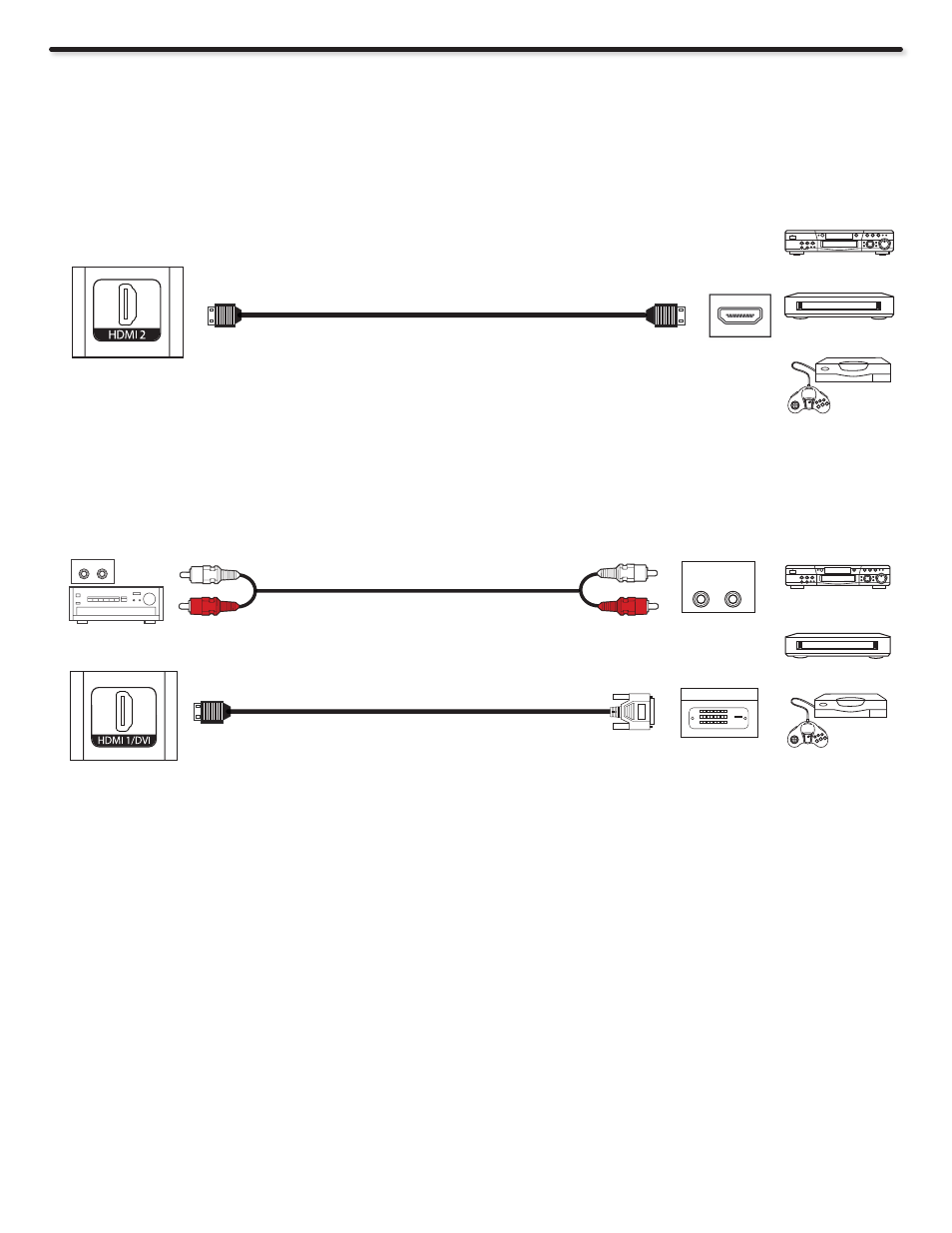

A) CONNECTING HDMI SIGNAL
DVD player
Set-Top Box
Home video game system
HDMI OUT
HDMI HDMI
HDMI DIGITAL
OUTPUT CAPABILITY
SIDE INPUT PANEL
B) CONNECTING DVI SIGNAL
DIGITAL OUTPUT
OUTPUT
L R
DVD player
Set-Top Box
Home video game system
DVI to HDMI Cable
HDMI DVI
R (Red)
L (White)
R (Red)
L (White)
DVI DIGITAL
OUTPUT CAPABILITY
Audio Amplifier
AUDIO IN
L R
SIDE INPUT PANEL
