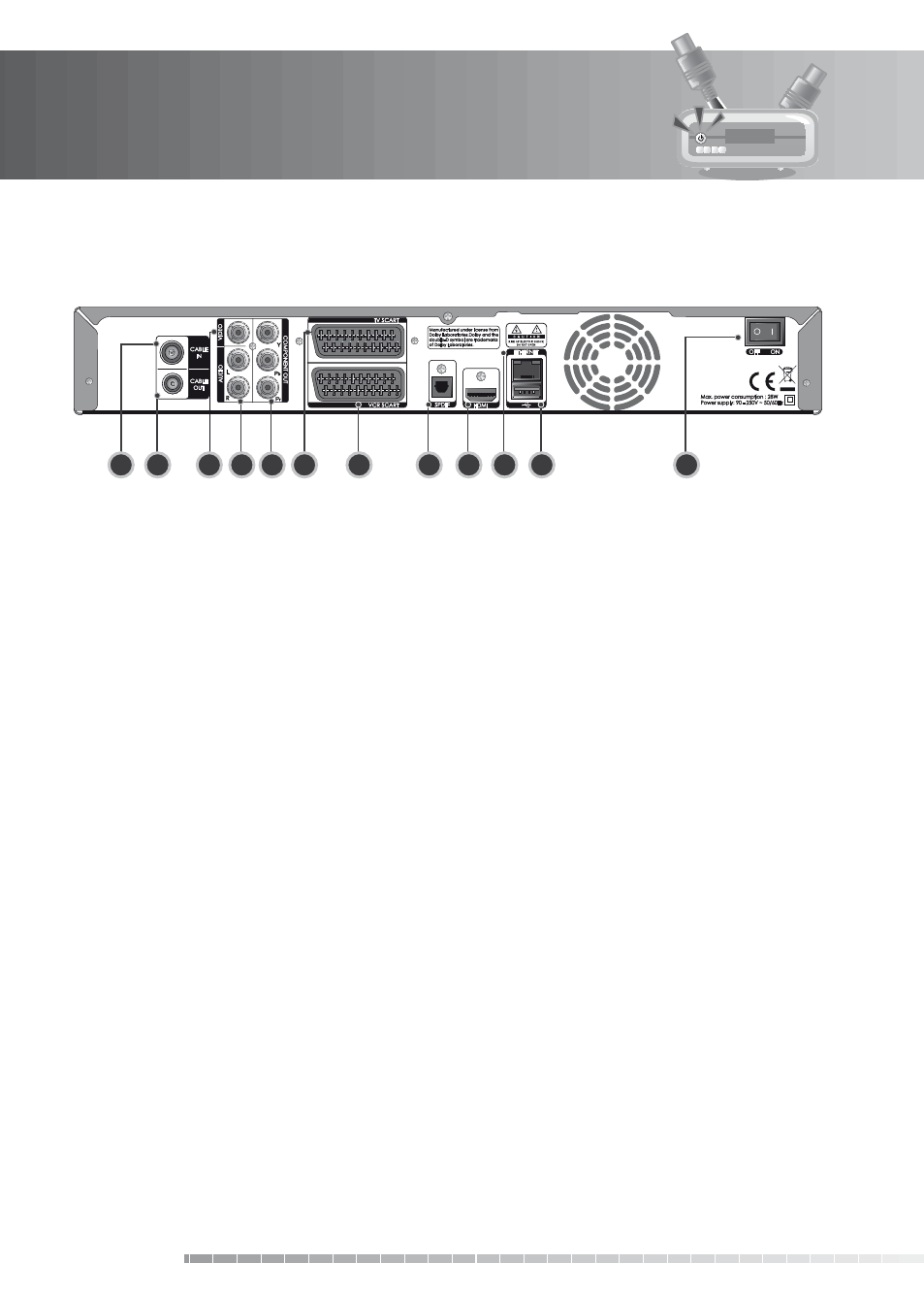

1.4 Rear Panel
1. CABLE IN
Connects a network cable
2. CABLE OUT
Connects to the RF IN of the TV or VCR
3. VIDEO
Connects to the TV or VCR using an RCA
cable.
4. AUDIO
Connects to the TV or VCR using an RCA
cable.
5. COMPONENT(YPbPr)
Connets to the TV or VCR using a
component cable.
6. TV SCART
Connects to the TV using a TV SCART cable.
7. VCR SCART
Connects to the VCR or DVD using a VCR
SCART cable.
8. SPDIF
Connects to the audio system using an
S/PDIF cable. (digital audio)
9. HDMI
Connects to the TV using an HDMI cable.
10. ETHERNET
Ethernet port (for future use).
11. USB
Connects to the USB memory or external
HDD.
12. ON/OFF
Powers on/off.
Note: The rear panel of the product is subject to change without notice.
1 2 3 4 5 7 6 8 10 9 11 12
