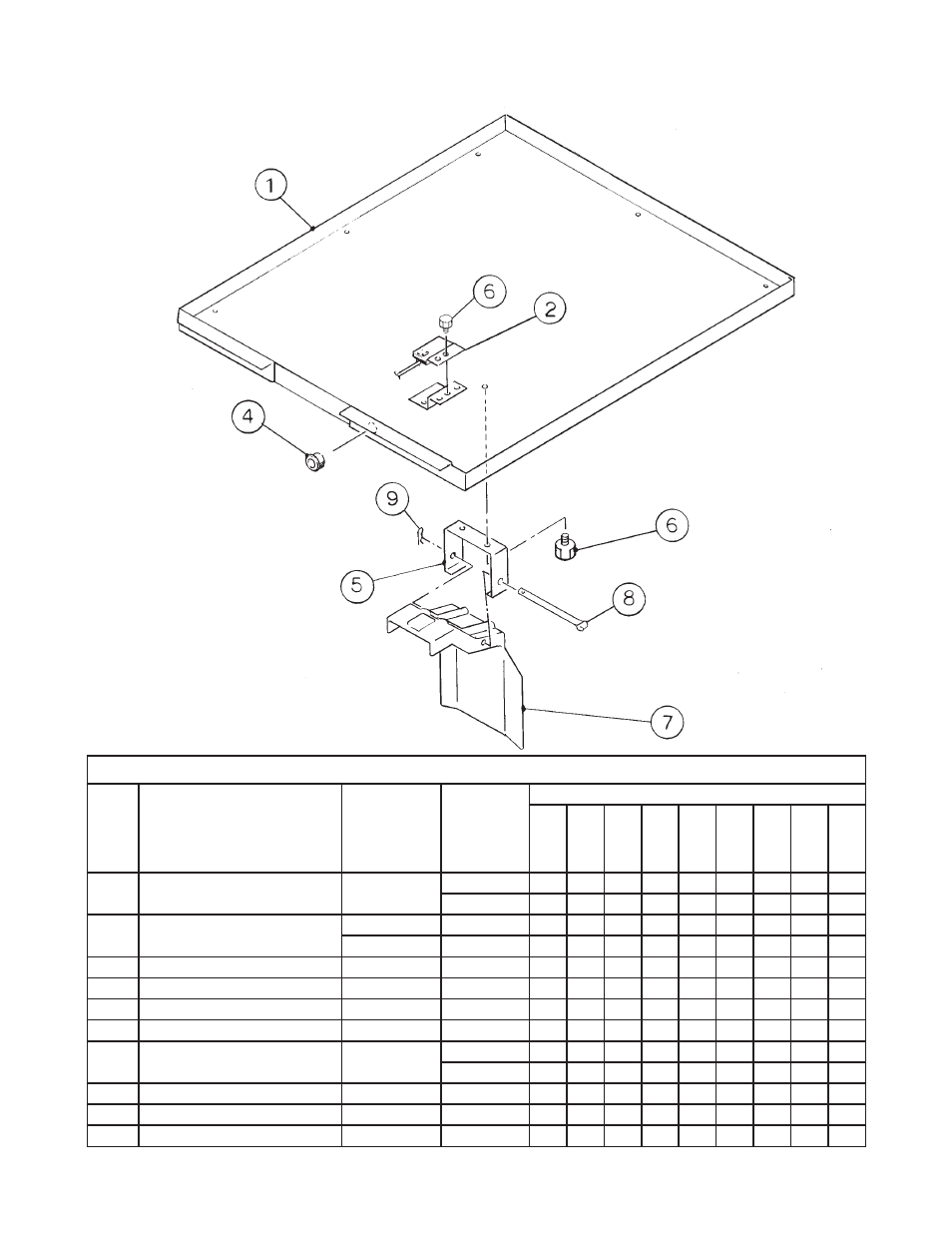

Title: F. Cover Assembly - Bin Top Model: F-500BAF/-C
Index
No. Description
Material or
Model Number Part Number
Required Number
H-0
to
K-0
K-1
to
P-0
P-1
Q-0
1 Cover - Bin Top SS 339873G01 1 -
3A1525G01 1 1
2 Proximity Switch RS-601 427223-01 1 -
- 4A2033-01 1 1
3 Bracket - Switch SS 427158-01 1 -
Truss Head Screw 4×8, SS 7C32-0408 2 -
4 Bushing SB-437-5 420470-07 1 1 1
5 Hinge SS 3A0762-01 1 1 1
6 Thumbscrew SS, ABS 415949G04 4 4 -
415949G08 4
7 Actuator ABS 208795G01 1 1 1
8 Shaft SS 412337-03 1 1 1
9 Snap Pin SS, SSP-4 715S-0004 1 1 1
F. Cover Assembly - Bin Top
F-500BAF/-C
K-1, L-0, M-0, M-1, N-0, P-0, P-1, Q-0
