7
8
9
2
33
Grease
13
14
10

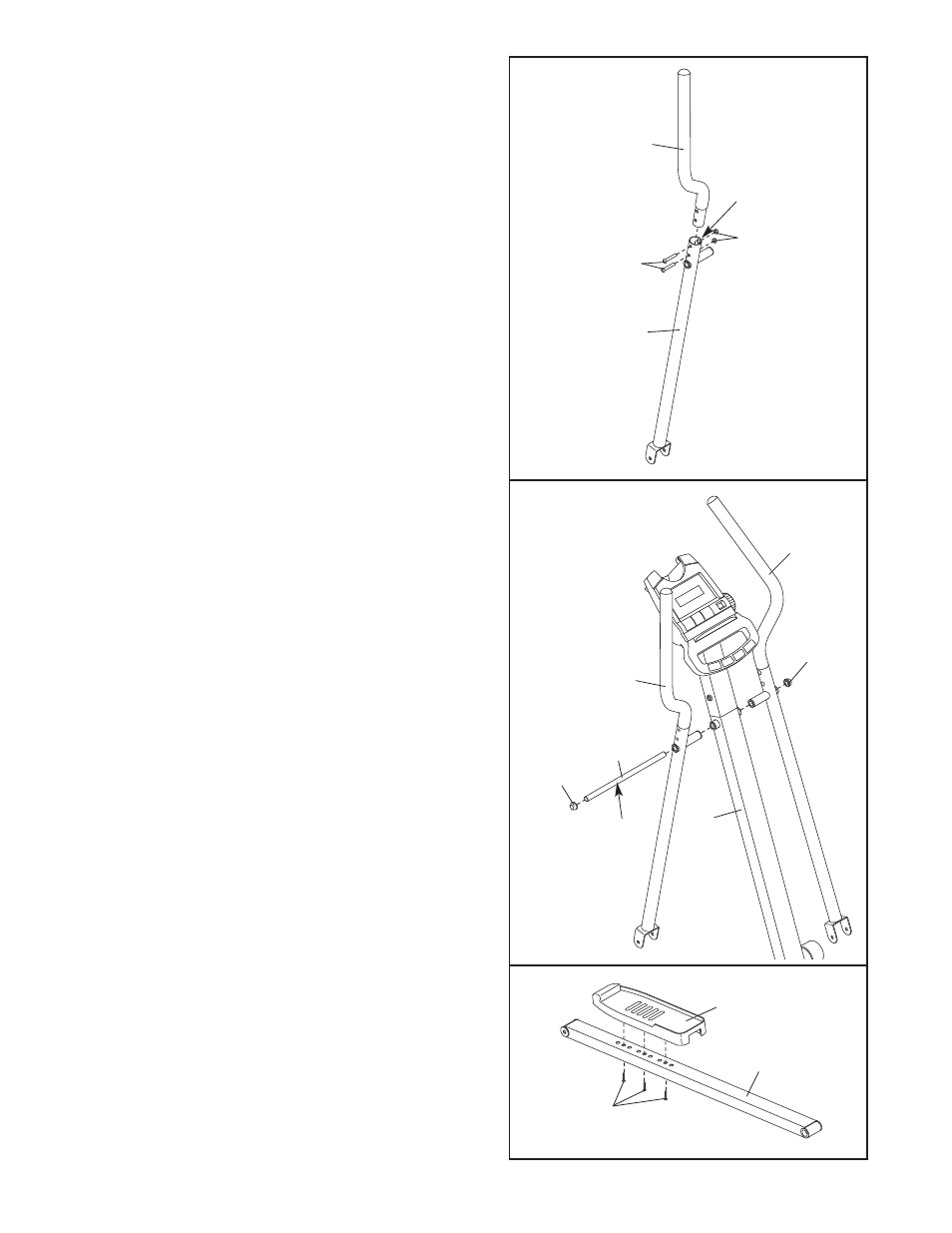

8. Gently tap an Handlebar Axle Cap (17) onto one end
of the Pivot Axle (38). Apply a generous amount of the
included grease to the Pivot Axle.
Identify the Left and Right Handlebars (9, 10), which
are marked with stickers.
Slide the Left Handlebar (9) onto the Pivot Axle (38),
and insert the Pivot Axle into the Upright (2). Make
sure that the Left Handlebar is oriented as shown.
Next, slide the Right Handlebar (10) onto the Pivot
Axle. Gently tap a Handlebar Axle Cap (17) onto the
other end of the Pivot Axle.
9. Identify the Left Pedal (13), which has an “L” molded
into its bottom surface.
Attach the Left Pedal (13) to a Pedal Arm (14) with
three M4 x 19mm Screws (33). Note: The Left Pedal
can be attached in any of three positions.
Attach the Right Pedal (not shown) to the other Pedal
Arm (not shown) in the same way.
17
17
9
38
7
9
39
46
Hexagonal
Holes
50
7. Identify the Left Handlebar (9), which is marked with a
sticker.
Insert the Left Handlebar (9) into one of the
Handlebar Legs (39). Make sure that the Left
Handlebar is oriented as shown. Attach the Left
Handlebar with two M8 x 45mm Button Bolts (50) and
two M8 Nylon Locknuts (46). Do not tighten the
Button Bolts yet.
Attach the Right Handlebar (not shown) to the other
Handlebar Leg (not shown) in the same way.
