To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver , two adjustable wrenches , and a rubber
mallet .

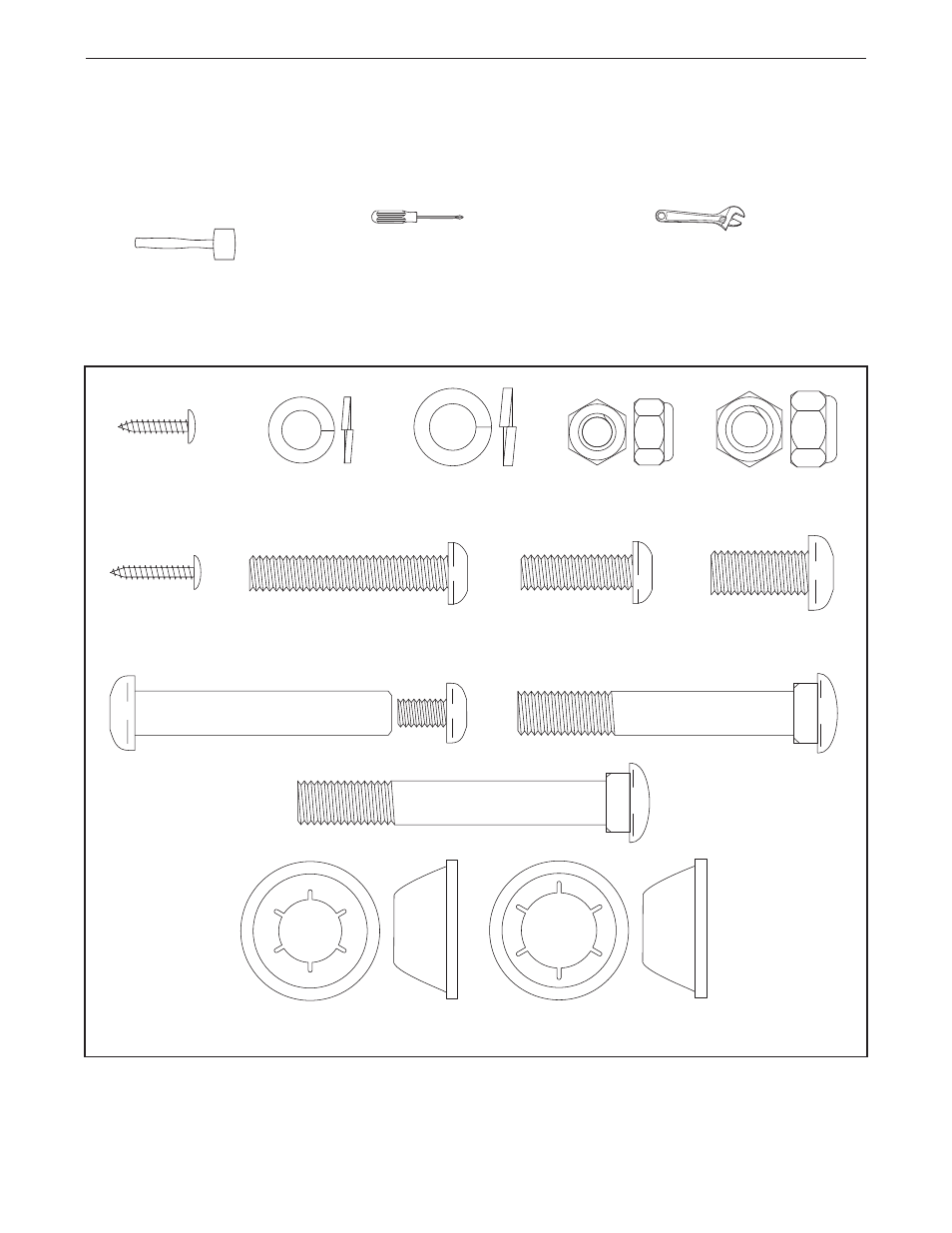

See the drawings below to identify the small parts needed for assembly. The number in parenthesis below
each drawing is the key number of the part, from the PART LIST on page 14. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
4
M8 x 25mm Button
Screw (51)–4
M8 Nylon
Locknut (46)–4
M8 Split
Washer (49)–4
M10 Split
Washer (67)–2
M10 Nylon
Locknut (29)–6
M10 x 25mm Button
Screw (21)–2
M4 x 16mm
Screw (66)–4
M4 x 19mm
Screw (33)–6
M8 x 45mm Button
Bolt (50)–4
Bolt Set (27)–2
M10 x 68mm
Carriage Bolt (19)–2
M10 x 75mm
Carriage Bolt (34)–2
Handlebar Axle Cap (17)–2 Pedal Arm Axle Cap (16)–2
ASSEMBLY
