Removing the Fan Duct
To access some components on the motherboard,
you may need to remove the fan duct.
Note: Make sure the computer is turned off and the
modem/phone cable and power cord are
disconnected from the computer.
1 Remove the side panel (see “Removing the
Side Panel” on page 4).
2 Gently lay the computer on its side.

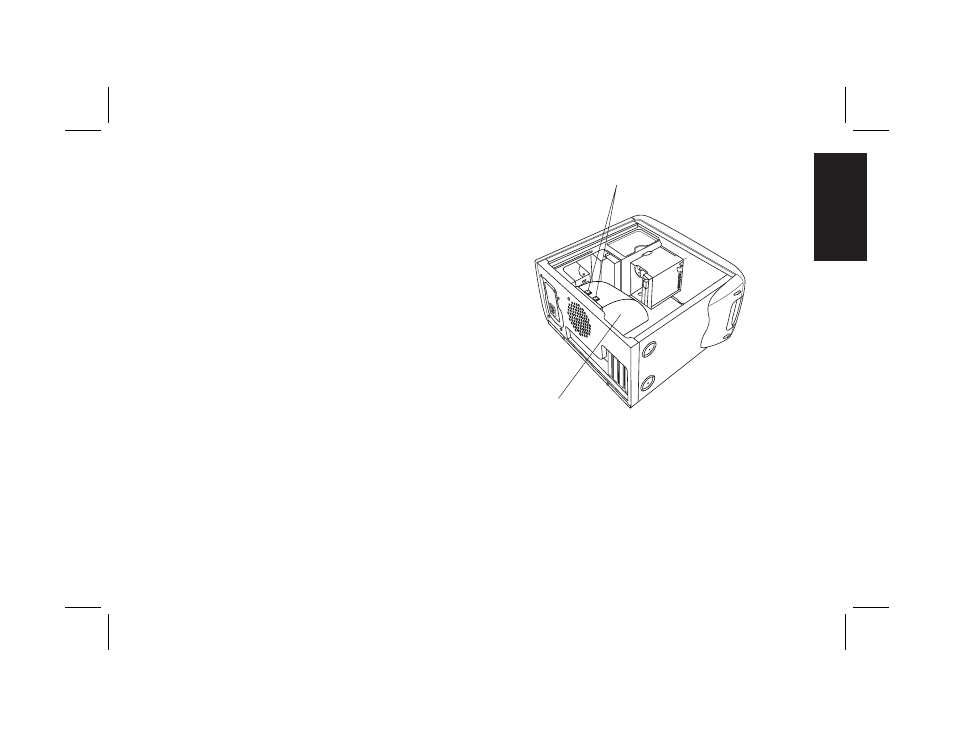

3 To disengage the fan duct (B), push down on
the two tabs (C). You can push with your
fingers or a pen.
C
B
4 Rotate the fan duct down and out to remove it
from the chassis.
