7 Push down the two retaining clips on the ends
of the memory socket.
8 Holding the new memory module by its edges
only, remove it from the antistatic packaging.
(Avoid touching the memory chips or the gold
contacts on the module.) The memory module
has one or two small notches on the lower
edge that fit into raised bumps in the memory
socket.

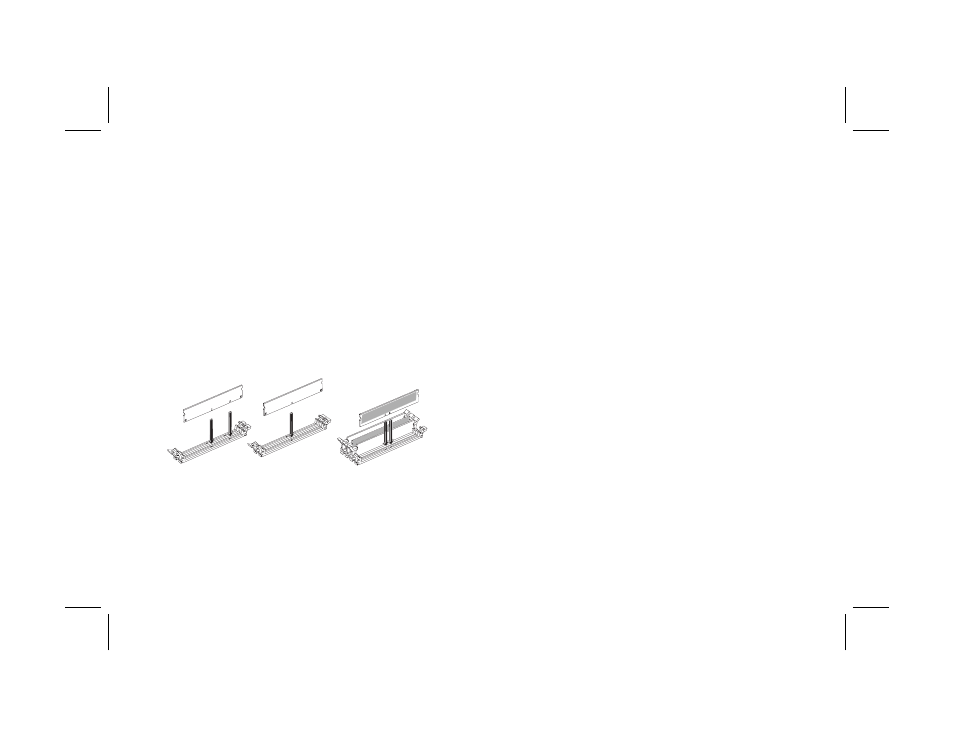

9 Hold the memory module in alignment with the
socket, aligning the notches with the bumps.
DIMM RIMM DDR DIMM
10 Push straight down on top of the memory
module until it is fully seated in the socket. The
retaining clips on the ends of the socket
automatically lock it into position when the
memory module is fully seated.
To reassemble the computer:
1 If you moved any cabling, restore the cable
connections and routing.
2 Replace the fan duct and the side panel (see
“Closing the Computer” on page 21).
3 Reconnect the power cord and all other
cables.
4 Reconnect the modem/phone cable.
5 Turn on the computer and all peripherals.
