To reinstall and perform the correct timing for different parts, follow these
procedures:

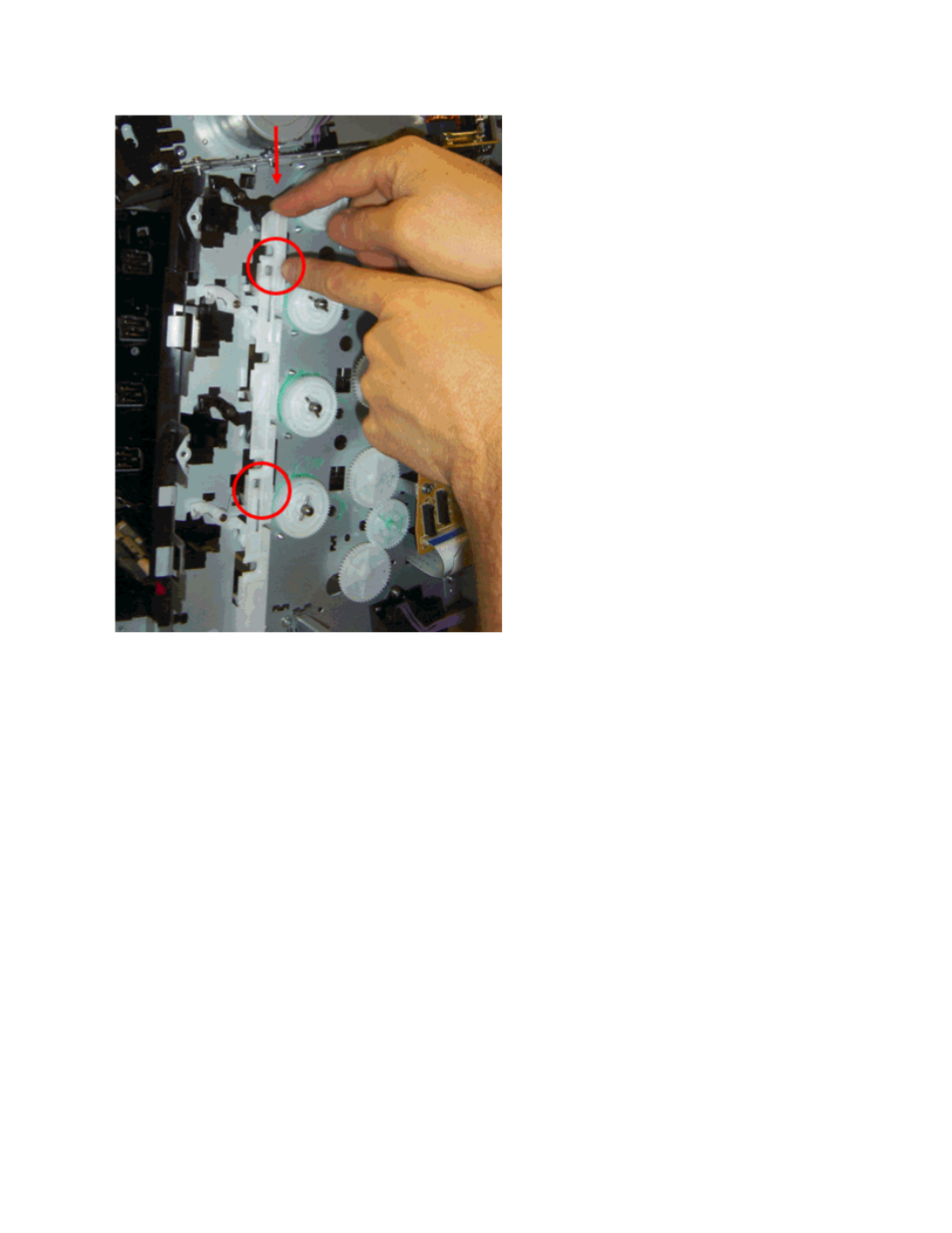

11. Attach one end the four springs to the white slide lever and install the lever back into the
machine. (** Attach the other end of the spring in step 14.) Place the white slide lever so the two
metal tabs are in place (circled below), then adjust all the black cartridge locks to be “under” the
tabs on the white slide lever. Bend the top of the white slide lever out to put the top black
cartridge lock in place. Slide the white slide lever up when all the black cartridge locks are in
place.
