18. Make sure the clips are pushed in and the MDA is seated properly.
19. At this point, reverse steps 7 on down. This will have the printer back up and running. Remember
to correctly thread the cables through the wire harnesses properly!
NOTE: The connector to the top cover is different between the simplex and duplex models. The
duplex has a larger connector, while the Simplex is much smaller.
If you experience the following issue after installing the new cartridge locks, here’s how to troubleshoot:
AISS Main Drive Ass'y (MDA) rework possible side-effects
Possible Failures After
Rework
Troubleshooting
13.01.00/13.02.00

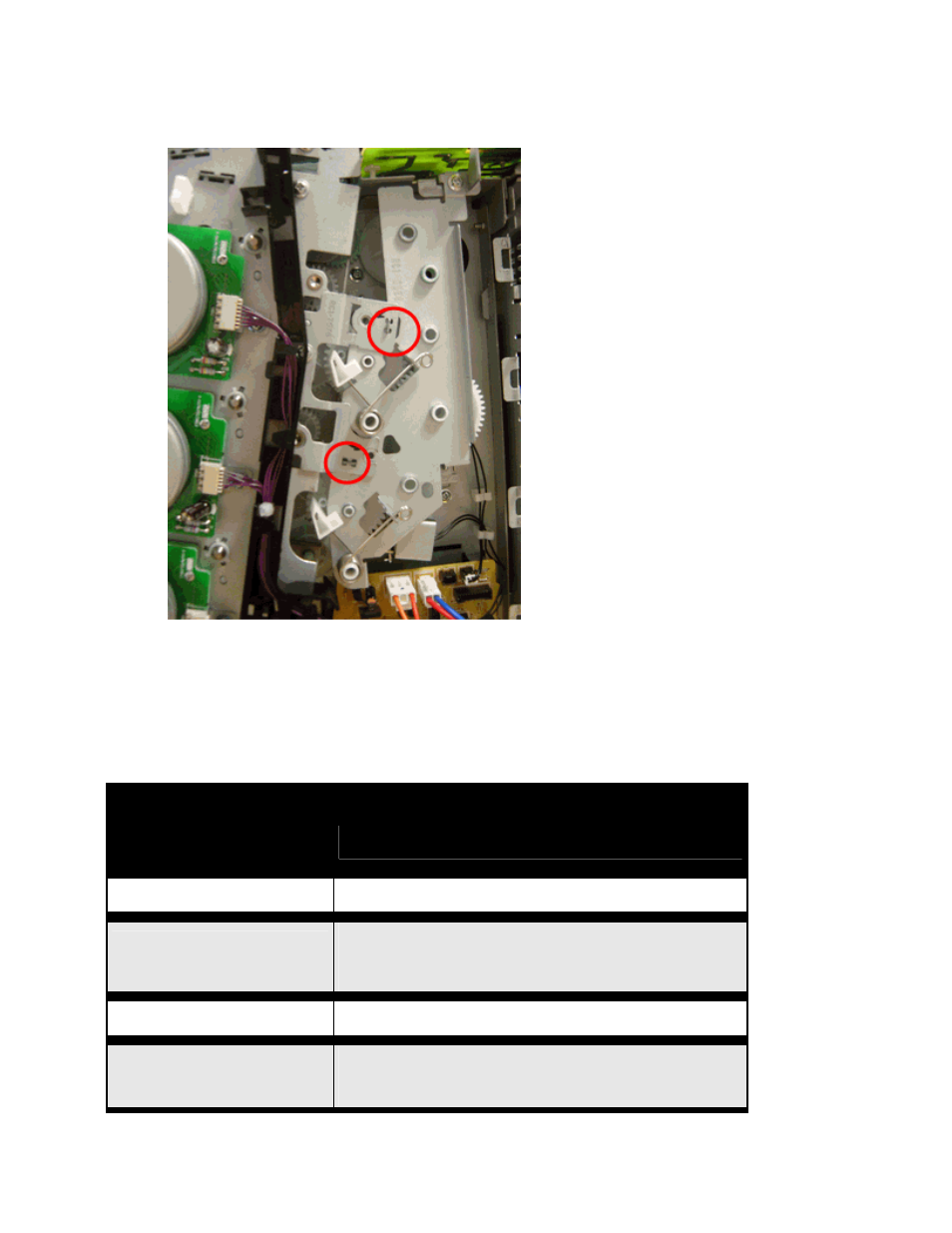

Check connection 1 (see #1 in Figure 1)
Close Top Cover/ Close Front
Door
• Check connection 4 (see #4 in Figure 1)
• Check connection 3 (see #3 in Figure 1)
Insert or Close Tray 2
Check connection 2 (see #2 in Figure 1)
• 10.92.XX
• Noise From Main Drive
Check the cartridge bottom lock (see #5 in Figure 2)
Remove the MDA and check all the Gears Alignment and
