Heatilator • Caliber Mesh CD Series-SIT Valve • 4040-849 Rev J • 06/08 55
Latches
(both bottom
and top)
Glass
Assembly
J. Install the Log Assembly
• Base logs have been permanently mounted on the grate
assembly and should not be moved. See Figure 14.2.

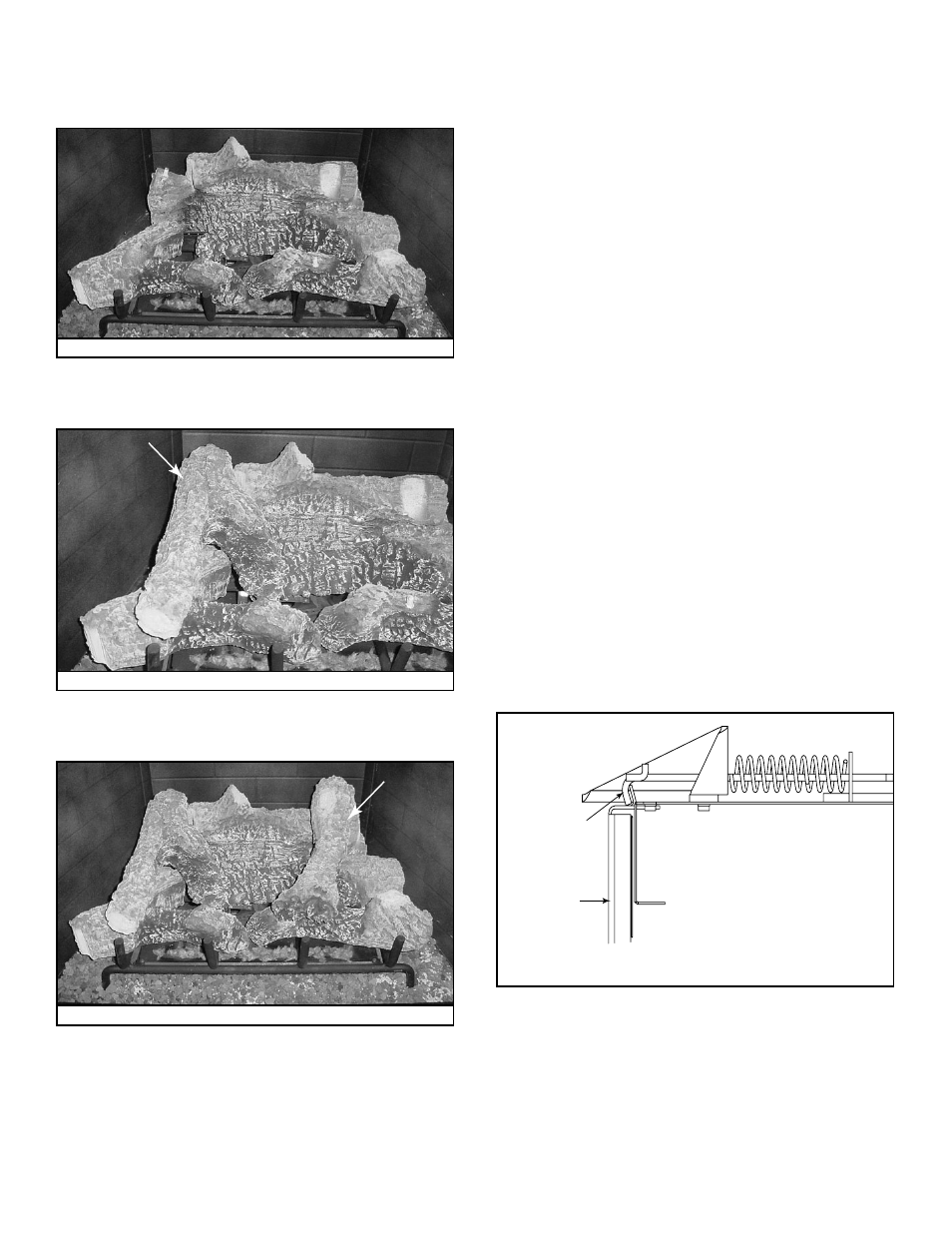

Figure 14.2 Base Logs
Figure 14.4 Placing Right Top Log
Figure 14.3 Placing Left Top Log
• Install “Y” log on left hand side of grate using locating
pins to position. See Figure 14.3
• Install right top log as shown in Figure 14.4 using locating
pins to position log properly.
Figure 14.5 Fixed Glass Assembly
K. Fixed Glass Assembly
WARNING! Risk of Asphyxiation! Handle fi xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate fi replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
Removing Fixed Glass Assembly
• Lift and pull upper grille towards you to expose two (36 in.
model) or three (42 in. model) Quick Access Latches.
• Open the control access panel to expose two (36 in.
model) or three (42 in. model) Quick Access Latches.
• Rotate bottom of screen assembly away from appliance
and lower out of top retainers.
• Release top and bottom access latches and rotate top
of the glass assembly away from top of appliance.
• Place the glass assembly on a surface that will not
scratch the surface of glass assembly.
Replacing Fixed Glass Assembly
• Replace the glass assembly on lower access latches
and rotate upper portion of glass assembly into place.
• Engage top access latches.
• Engage lower access latches.
• Reinstall top corners of screen assembly in their retainer
clips and rotate screen assembly to rest on lower
latches.
• Close access panel and reinstall upper grille.
