Heat & Glo • Escape-42DV • 2052-900 Rev. Y • 11/11 44

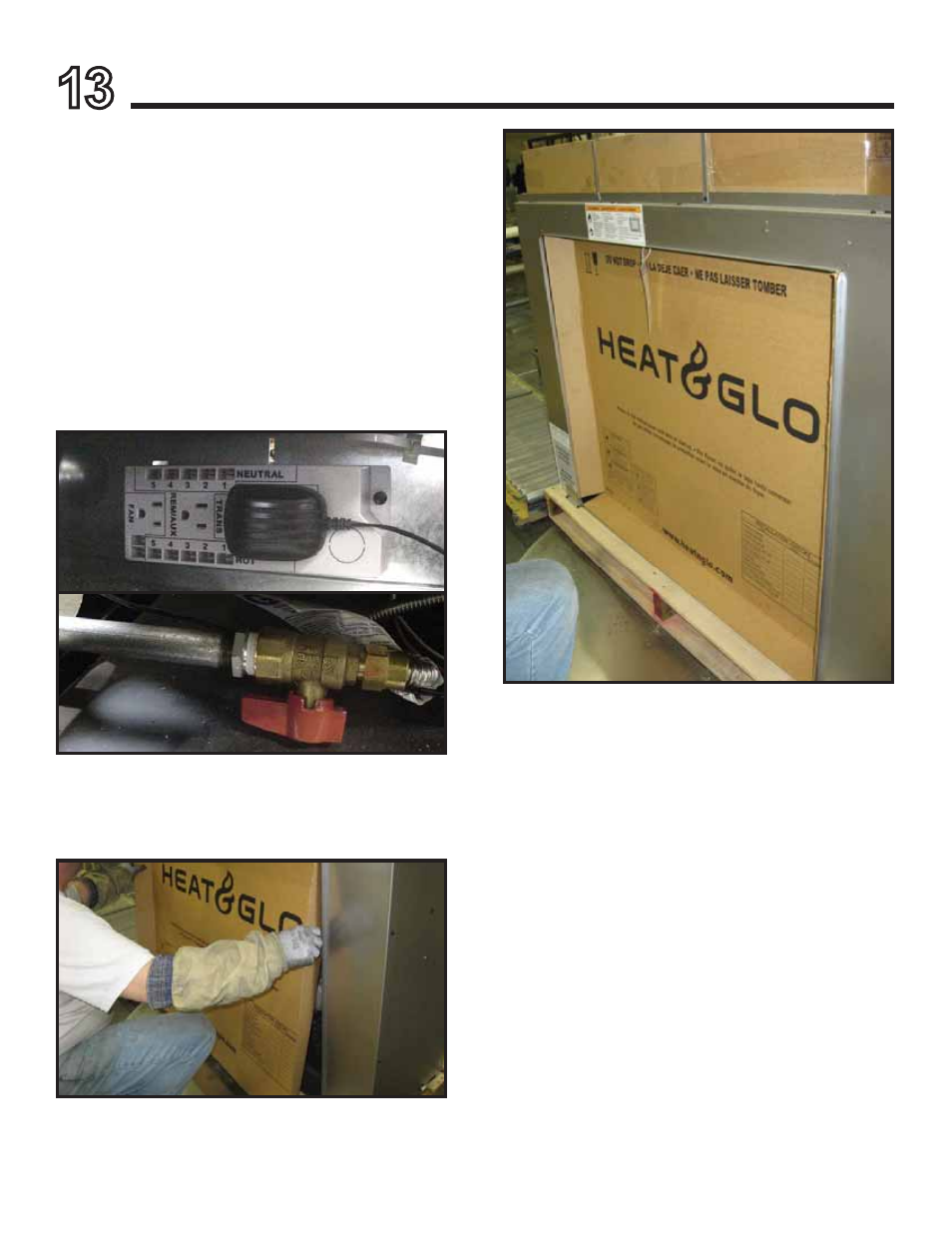

A. Splatter Guard
The splatter guard is a piece of corrugated material
used to protect the appliance during the installation
process before fi nishing work on the whole hearth is
complete. Splatter guards may be factory installed or
accompany the door of the unit, depending on the fi re-
place model. Splatter guards must be removed before
appliance is fi red.
WARNING! Risk of Fire! Close the ball valve before in-
stalling the splatter guard to prevent accidental lighting.
Remove the splatter guard before lighting the appliance.
To install the Splatter Guard:
Step 2. Crease the bottom and side fl aps of the splatter
guard using the scored line as the guide. See Figure 13.2.
Figure 13.2
Step 3. Place the top side of splatter guard behind the left
and right panel brackets and in front of the glass. See
Figure 13.3.
Figure 13.3
Step 1. Turn off gas to valve. Red gas shutoff knob is
located on ball valve. Disconnect the 3 volt transformer
from the junction box. See Figure 13.1.
Figure 13.1
13
Finishing
