Audio-out (headphone), External monitor, Audio-out (headphone) –2 external monitor –2 – HP HDX 16 User Manual
Page 131: Audio-out (headphone) external monitor

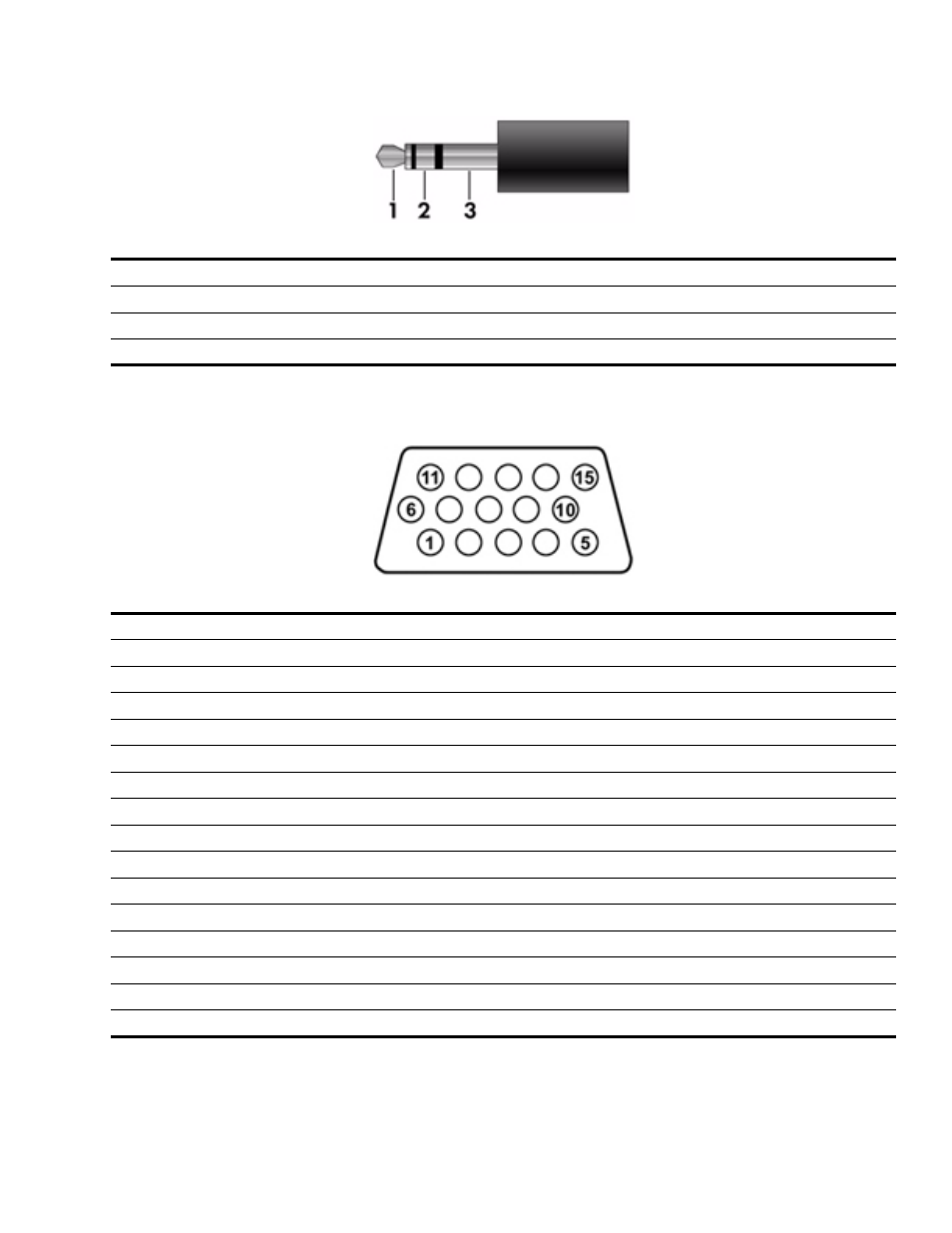

Connector pin assignments
9–2
Audio-out (headphone)
External monitor
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
