Page 48

September 1, 2008

Quadra-Fire · Garnet-T · 7016-127F

D.

Service Parts List

R

GARNET-T

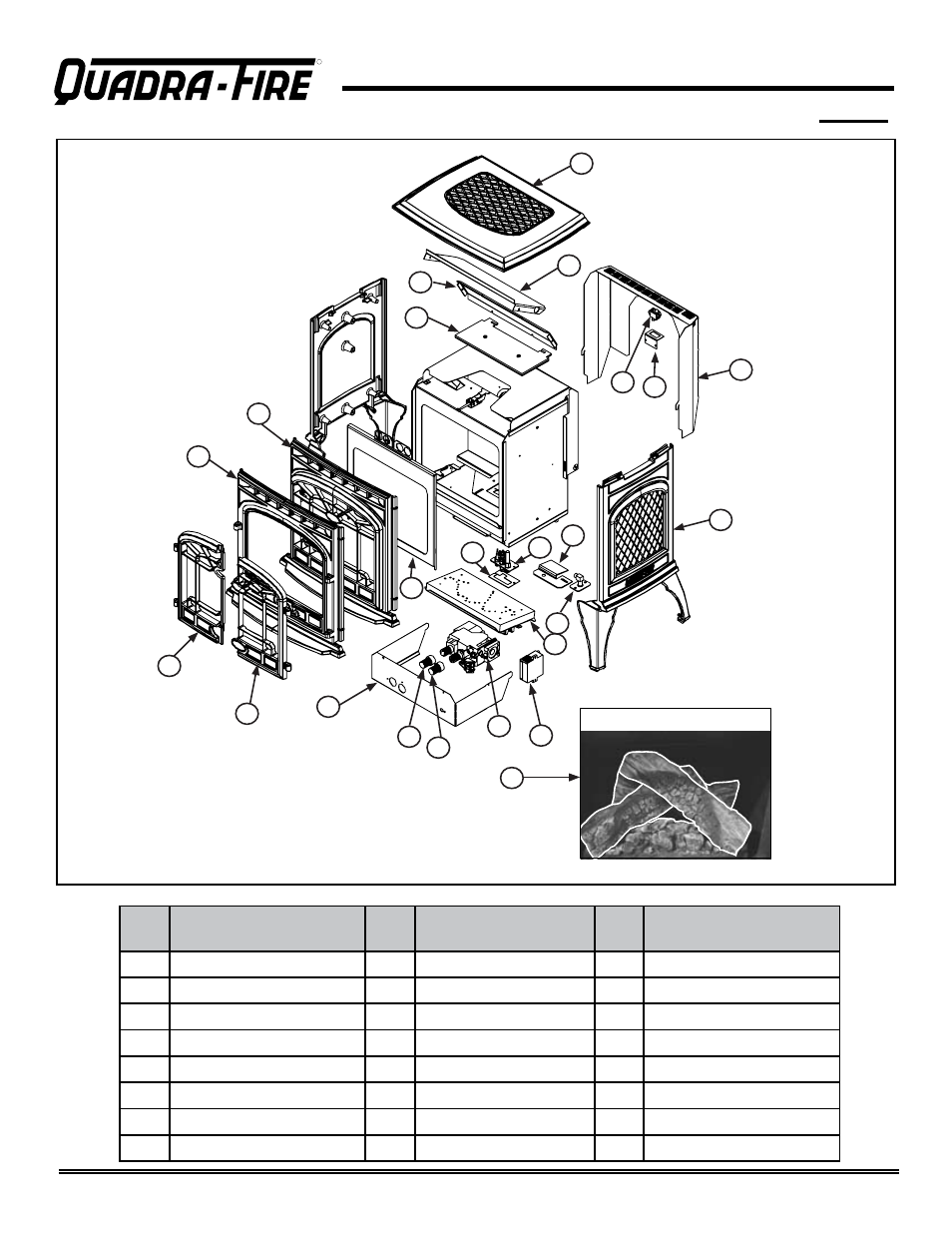

(NG, LP) Exploded Parts Diagram

Beginning Manufacturing Date: 6-16-04
Ending Manufacturing Date:

Item

#

Description

Item

#

Description

Item

#

Description

1

Valve Cover

9

Pilot Assembly

17

Baffle

2

Knob, Extension, SIT, ON/OFF

10

Air Shutter Assembly

18

Relief Door Assembly

3

Knob, Extension SIT, HI/LO

11

Side

19

Front Plate, Solitaire

4

Valve

12

Back Shield

20

Front

5

Log Set

13

Switch Bracket

21

Door, Left

6

Ignition Module

14

Switch, Rocker, ON/OFF

22

Door, Right

7

Burner Assembly

15

Baffle Back

23

Door Assembly

8

Bulkhead with Flex Tube

16

Top

24

Gasket, Pilot

1

2

3

T hree-piece L og S et

11

1

6

1 4

2

7

1 3

3

8

1 2

4

1 0

1 5

5

9

23

1 6

19

24

1 7

20

1 8

21

22
