Page 20

September 1, 2008

Quadra-Fire · Garnet-T · 7016-127F

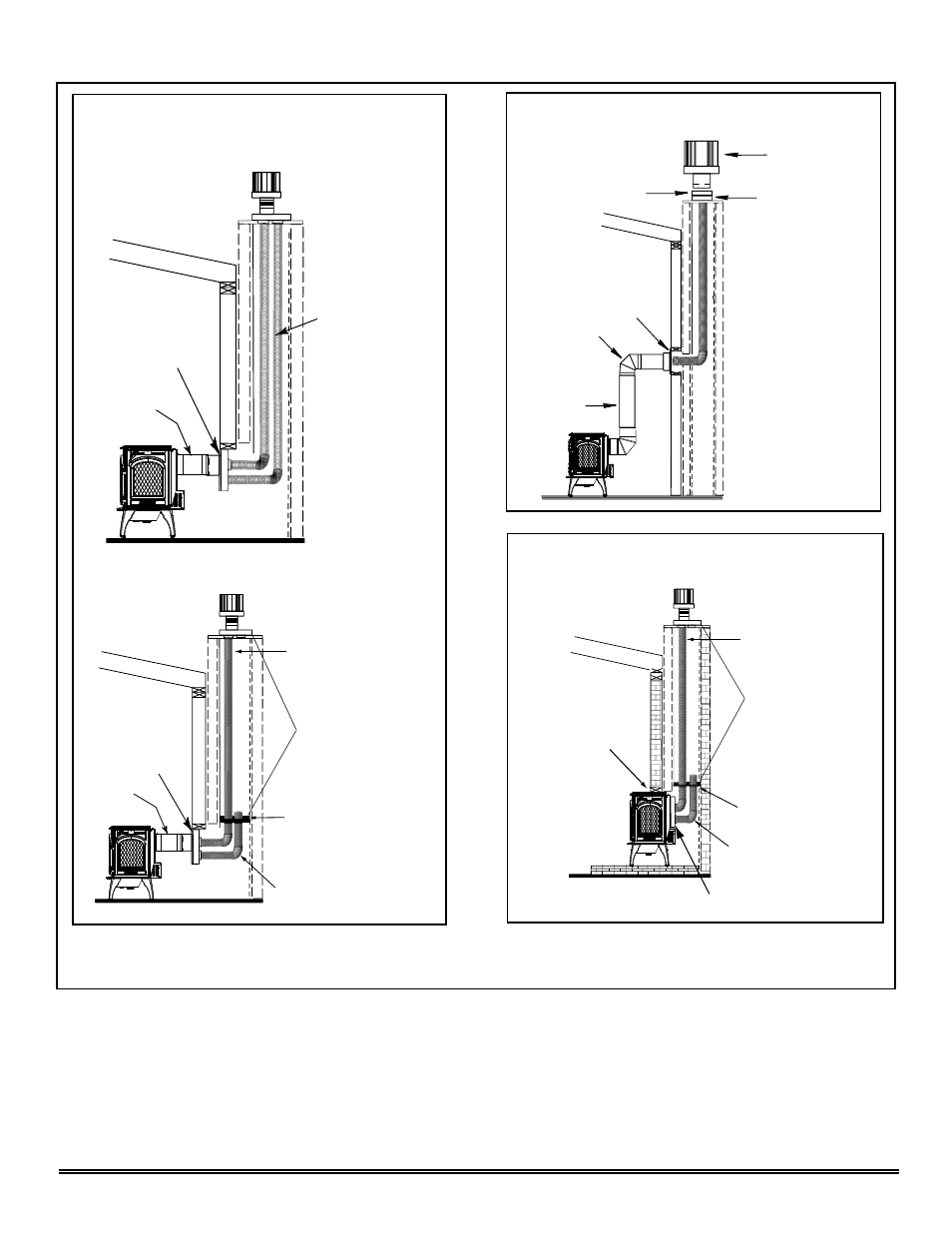

4. Existing Masonry Chimney

Figure 5.24

Type C - Up & Out Installation

Type A & B - Co-Axial to Co-Linear

Chimney Liner

Termination Cap

Co-Axial to

Co-Linear

Connector

25 ft. (8m) of 3 in.

(76mm) Flex Liner

Exhaust Section

Pipe Length

Optional

4 ft. (1m) of 3 in.

(76mm) Flex Liner

Air Intake Section"

4

ft

The chimney must be sealed from
the 4 ft. (1m) section to
termination using a smoke shelf
or a damper. The seal should be
6 in. (152mm) below the end of
the 4 ft. (1m) Air Intake section.

This section of the
chimney must be
sealed

Chimney Liner
Termination Cap

25 ft. (8m) of 3 in.

(76mm) Flex Liner

Exhaust Section

4 ft. (1m) of 3 in. (102mm)

Flex Liner

Air Intake Section"

Chimney must be sealed
from 4 ft. (1m) section to
termination using a smoke
shelf or a damper*. Seal
should be 6 in. (152mm)
below end of 4 ft. (1m) Air
Intake section.

This section of the
chimney must be sealed

Co-Axial to Co-Linear Connector

Alcove Clearance to
Combustibles must
be maintained.

Type D - Hearth Mount

Type A

Type B

Chimney Liner

Termination Cap

Co-Axial to

Co-Linear

Connector

3 in. (76mm)

Flex Liner

Pipe Length

Optional

Showing two 35 ft.

(11m) Sections of

Flex Liner

TERMINATION CAP

FLASHING

4 in. (102mm)

FLEX LINER

TOP ADAPTOR

RETRO

CONNECTOR

90° ELBOW

DIRECT

VENT PIPE

*In the Commonwealth of Massachusetts, the word damper
shall be replaced with the words flue restrictor.
