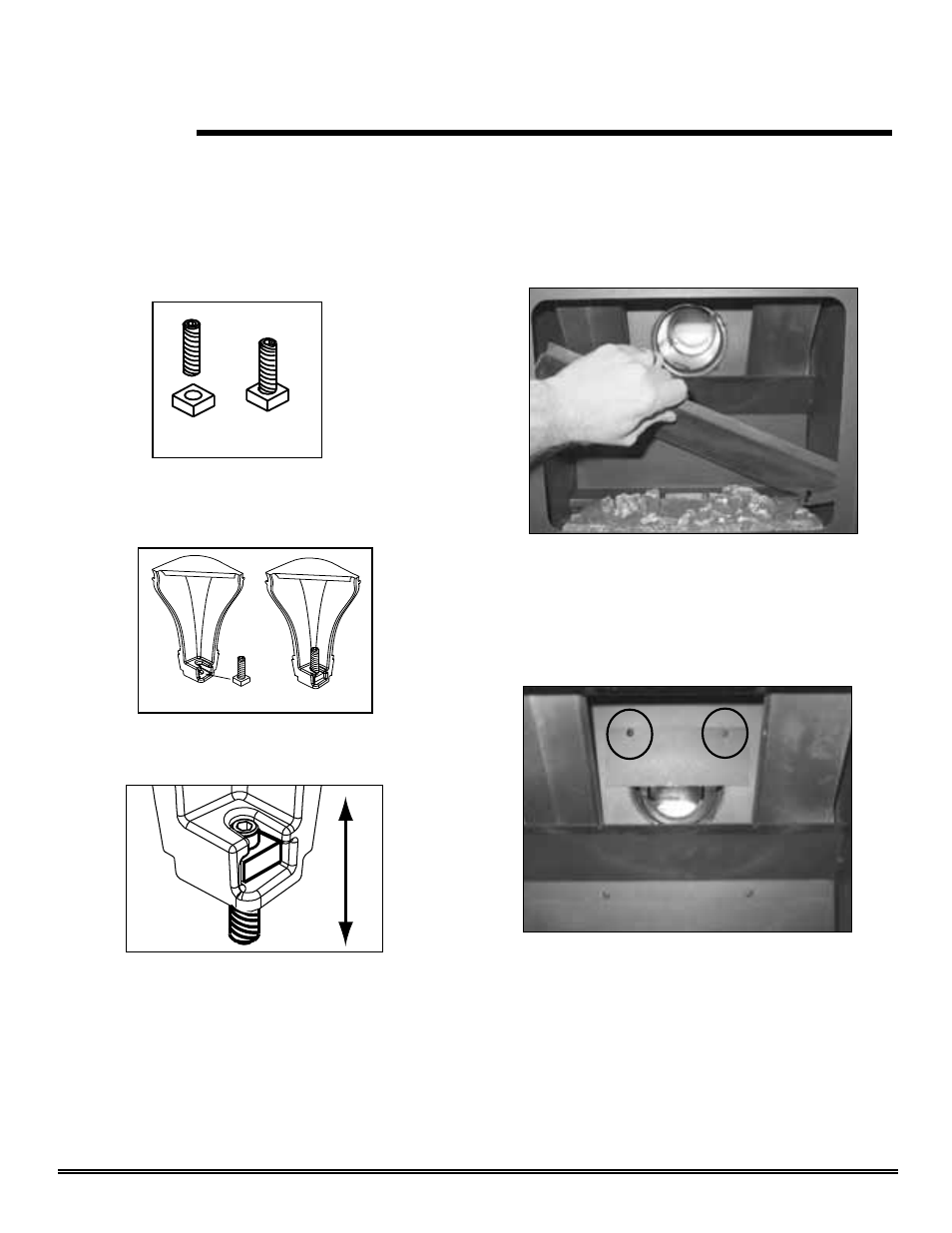

Appliance Setup

A. Remove Shipping Materials

Remove shipping materials from inside or underneath the
firebox.

B. Leg Leveling System

Figure 8.1

Thread Allen bolts through nuts until flush. The

Allen bolts and nuts are included in the component pack inside
the appliance firebox.

Figure 8.2

Slide assembled nuts and bolts into the slots on

the legs with the nuts on the bottom.

Figure 8.3

Use a 5/32 in. 4mm) Allen wrench to adjust legs

up and down to desired level.

C. Flue Restrictor Installation

Figure 8.4

Installation of the flue restrictor requires the

removal of the baffle located inside the firebox. Remove the
baffle by first removing the two screws holding the baffle in
place (one on each side). Lift the baffle out of the bracket
along the back of the firebox, angle the baffle slightly and
remove it from the firebox.

Figure 8.5

With the baffle removed, remove the two screws

located in the back of the firebox. Reuse the screws to install
the flue restrictor.

When your installation falls within a shaded area on the
vent graph (page 11) a flue restrictor must be installed
for proper operation.
