Hasselblad H1D
Parts & Components
A. Rubber eye cup
B. Hot shoe
C. Eyesight adjustment wheel
D. Exposure compensation button
E. Exposure method / mode button
F. Integral flash unit
G. Flash unit button
H. Viewfinder release button

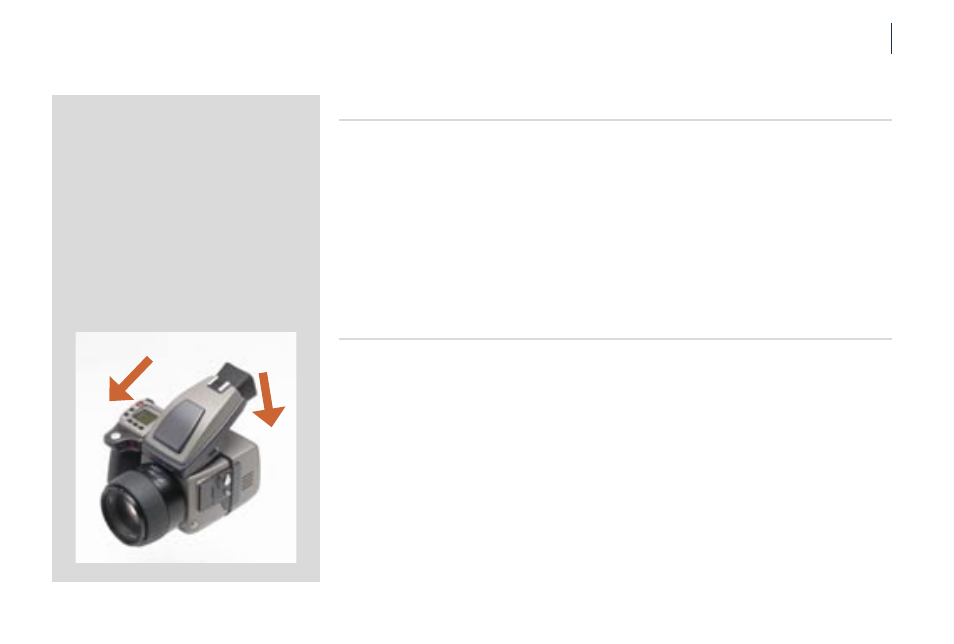

Attaching and removing the viewfinder
While holding the viewfinder at a slight angle and resting it on the top of the camera, slide
the viewfinder forward until the front locating pin is in position in the recess in the front
edge of the viewfinder screen aperture on camera body. Press the rear part of the viewfinder
firmly downwards until it clicks into place.
Ensure that both sides of the viewfinder are seated correctly and that it has been firmly
attached. Failure to do so could cause an intermittent malfunction if the databus interface
connections between the viewfinder and camera body are not positively secured.
To remove, grasp the viewfinder in the right hand and while depressing the viewfinder release
button, li the rear of the viewfinder up and away from the camera body.
