Bottom panel features, Side panel features (transmitter only) – Extron electronic DVI 104 Tx/Rx User Manual
Page 9
DVI 104 Tx/Rx • User’s Guide
5
f
Label — a label on the top panel identifies the unit as the
transmitter or receiver and also identifies the fiber optic port
numbers and the power input.
Bottom panel features
The bottom panels of both the transmitter and receiver have a
label that identifies the unit’s serial number and a second power
LED that lights blue when the unit is receiving power.

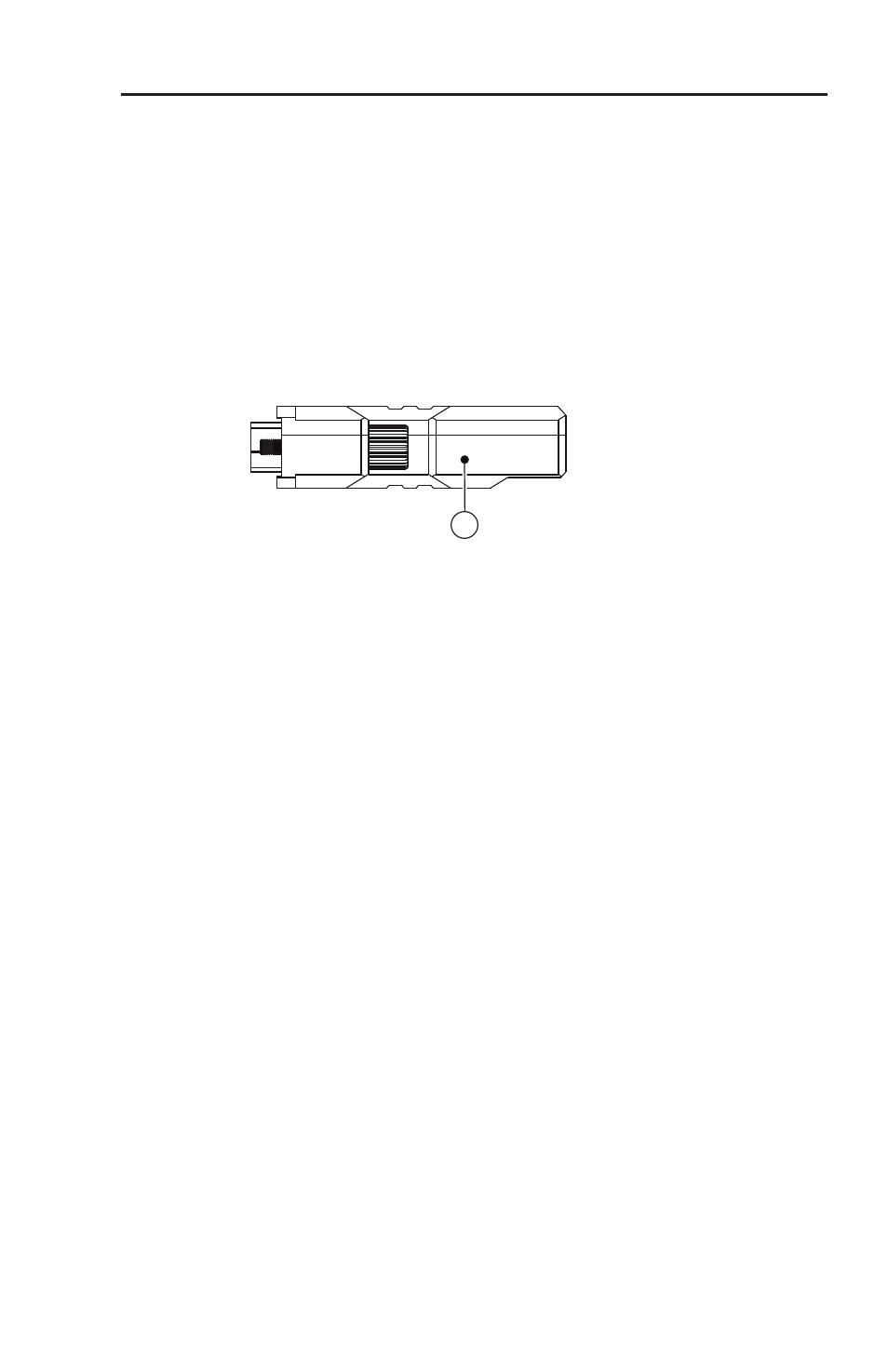

Side panel features (transmitter only)
7
g
EDID minder storage button (transmitter only) — A recessed
switch activates the transmitter to capture and store EDID
information from the display device. This allows the source
device to provide a signal with a resolution and refresh
rate matching the needs of the display device. (For more
information, see the next section, “Setup and Operation”.)
