Description – Extron electronic DVI 104 Tx/Rx User Manual
Page 5
DVI 104 Tx/Rx • User’s Guide
1
Description
The DVI 104 Tx and DVI 104 Rx are fiber optic transmitter/
receiver units that extend DVI signals up to 1,640' (500 m) using
four multi-mode fiber optics cables.
The transmitter plugs directly into the source device and the
receiver plugs directly into the display device.
The transmitter/receiver pair can handle DVI video signals with
resolutions up to 1920 x 1200 or 1080p @ 60 Hz.
Optional four-fiber Multi Mode cables are available in varying
lengths.

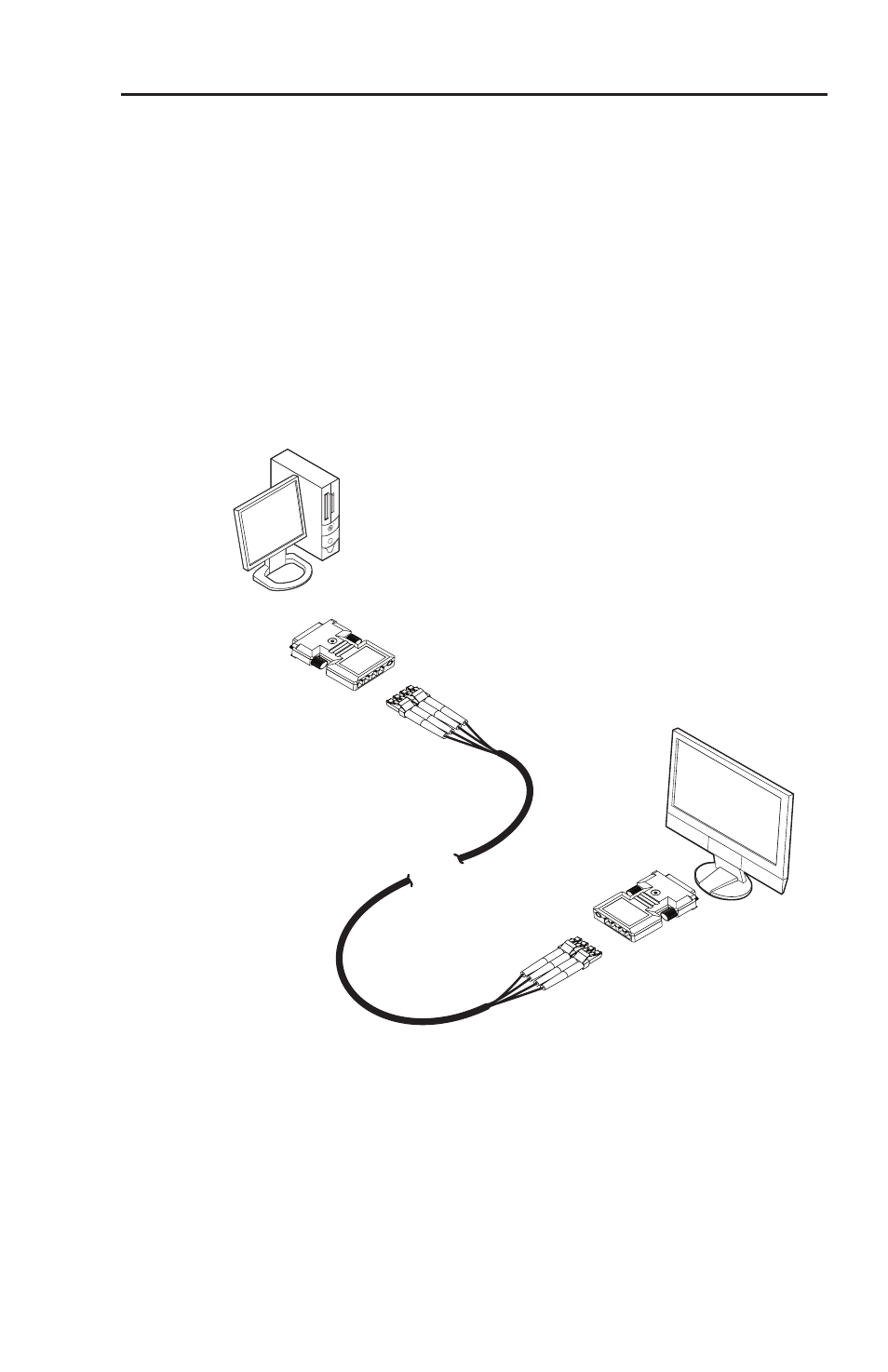

PC with DVI Output
DVI 104
Transmitter
DVI 104
Receiver
Hi-res Flat
Panel Display
with DVI-D Input
4 Multi Mode
Fiber
Up to 500 m (1640')
