9 9 9 9 9

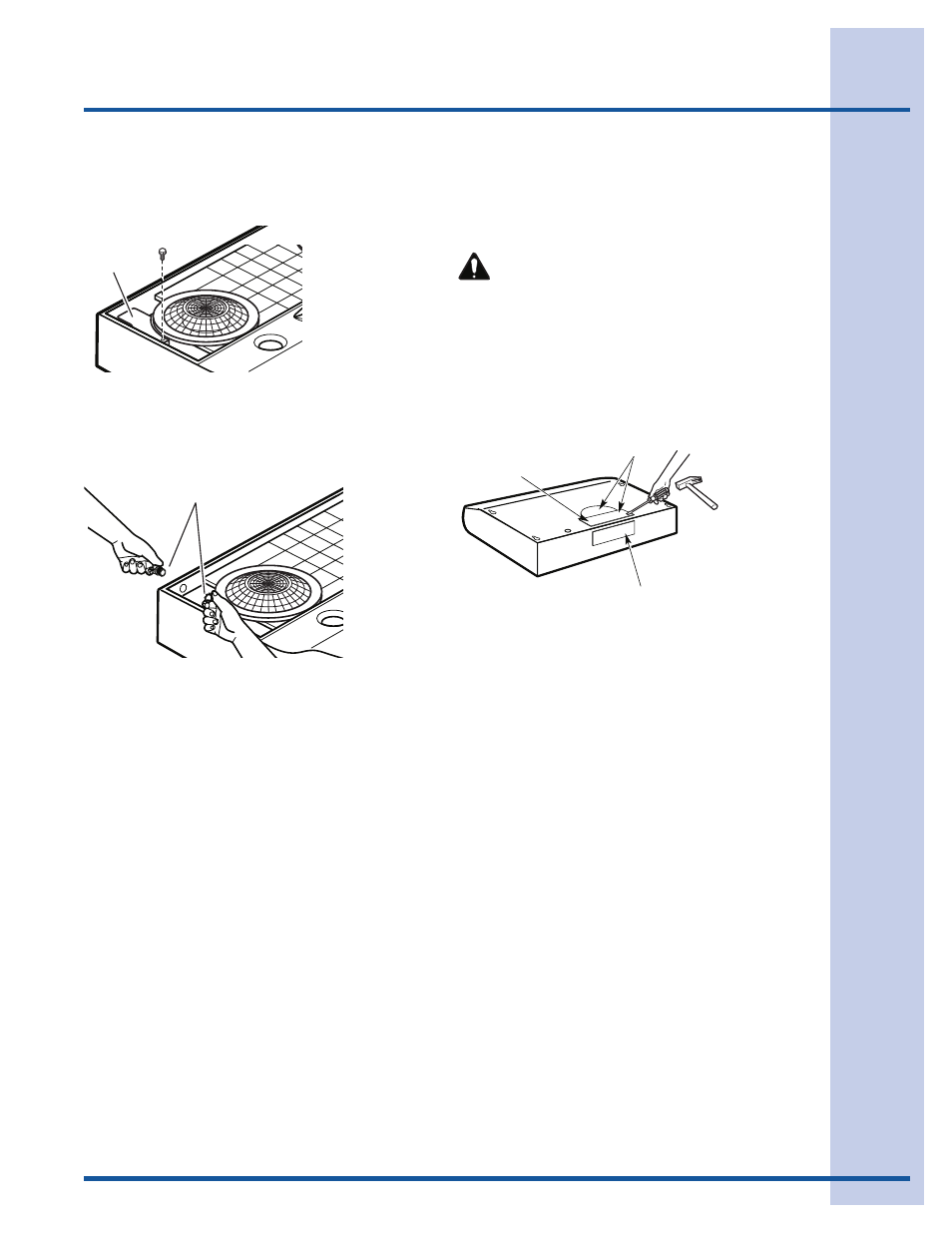

Step 4 Step 4 Step 4 Step 4 Step 4
Remove the junction box cover.
J-Box
Cover
Remove either the top or the back wiring knockout
according the preference and install an approved
wiring clamp
wiring
clamp
Step 5 Step 5 Step 5 Step 5 Step 5
Remove the duct knockouts using a flat blade
screwdriver and a small hammer.
Use the screwdriver by knocking out the pannel in
similar fashion to a scalpel.
Take care of sharp edges.
Attention! Attention! Attention! Attention! Attention!
If it is intended to use the hood in the recirculating
version do not remove any duct knockouts and order
the necessaruy charcoal filter from your supplier.
Rectangular
vertical
discharge
Rectangular
horizontal
discharge
Round
vertical
discharge R1
R1
R2
R1 R1 R1 R1 R1= Remove rectangular duct knockout only.
R2 R2 R2 R2 R2 = Remove semicircular and rectangular duct
knockouts.
Installing the hood
