Installing the hood – Electrolux 316488521 User Manual

Page 8

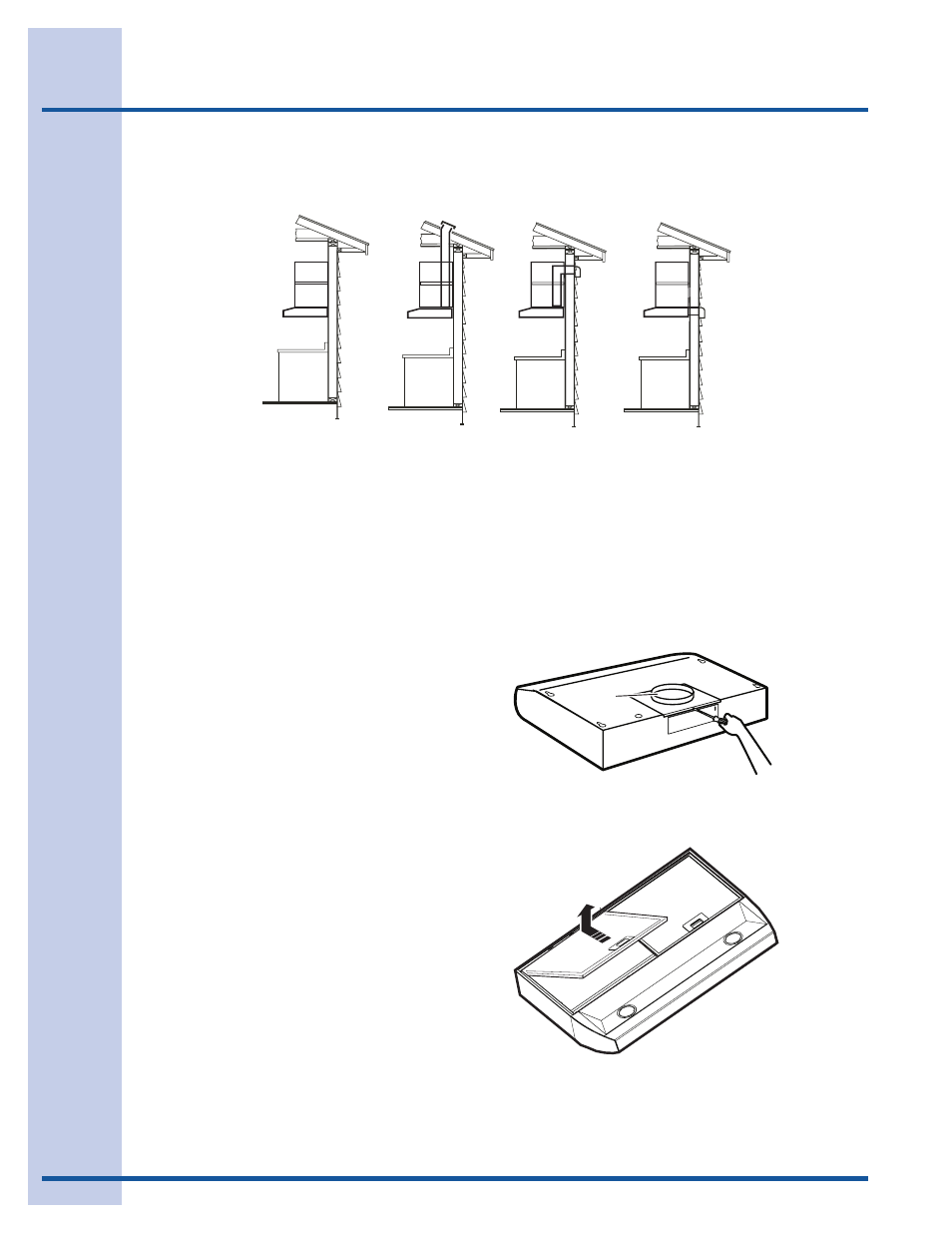

Examples of possible ducting

Horizontal discharge

Vertical discharge

ertical discharge

Recir

Recirculating

culating

Installing the hood

Ductwork installation guidelines

For safety reasons, ducting should vent directly
outdoors (not into an attic, underneath the house,
into the garage or into any enclosed space).
Keep duct runs as short and straight as possible.
Duct fittings (elbows and transitions) reduce air flow
efficiency.
Back to back elbows and „S“ turns give very poor
delivery and are not recommended.
A short straight length of duct at the inlet of the
remote blower gives the best delivery.
Transition to duct from the integral blower or remote
duct transition as close to the downdraft as is pos-
sible.

In order of preference, use
1st. 10" round duct
2nd. 8" round duct
3rd. 3-1/4" x 14" duct
4th. 7" round duct
5th. 3-1/4" x l0" duct
6th. 6" round duct

The use of flexible metal round duct should only be
used when no other duct fitting exists. Limit use to
short lengths and do not crush when making
corners.

After having choosen the vent option

After having choosen the vent option, proceed as
follows:

Step 2

Step 2
Remove the round transition from its seat by
unscrewing the its fixing screws (save the screws).

7" Round

Transition

Step 3

Step 3
Remove the grease filters.

This manual is related to the following products:

EI36WC40GS EI30WC40GS
