2.4.2 Connector Descriptions
LAN LED Indicators
This LED indicates the link (amber), activity (amber) status of network conditions. The detailed information is explained as
follows:
z Link Indicator (amber)
This LED lights to indicate a successful network connection.
z Activity Indicator (amber)
This LED lights when there is network packets sent or received through the RJ-45 port.
USB Port
These connectors can be used for the USB devices.
PS/2 Mouse Connector
This connector is for a mouse using a PS/2 plug (mini DIN).
PS/2 Keyboard Connector
This connector is for a standard keyboard using a PS/2 plug (mini DIN).
RJ-45 Network Connector
This connector can be used to connect the built-in 32-bit 10/100-T Ethernet network LAN Controller to a host or Hub.
Audio output Connector
This connector is used to connect to an outward speaker.
Power Switch & LED

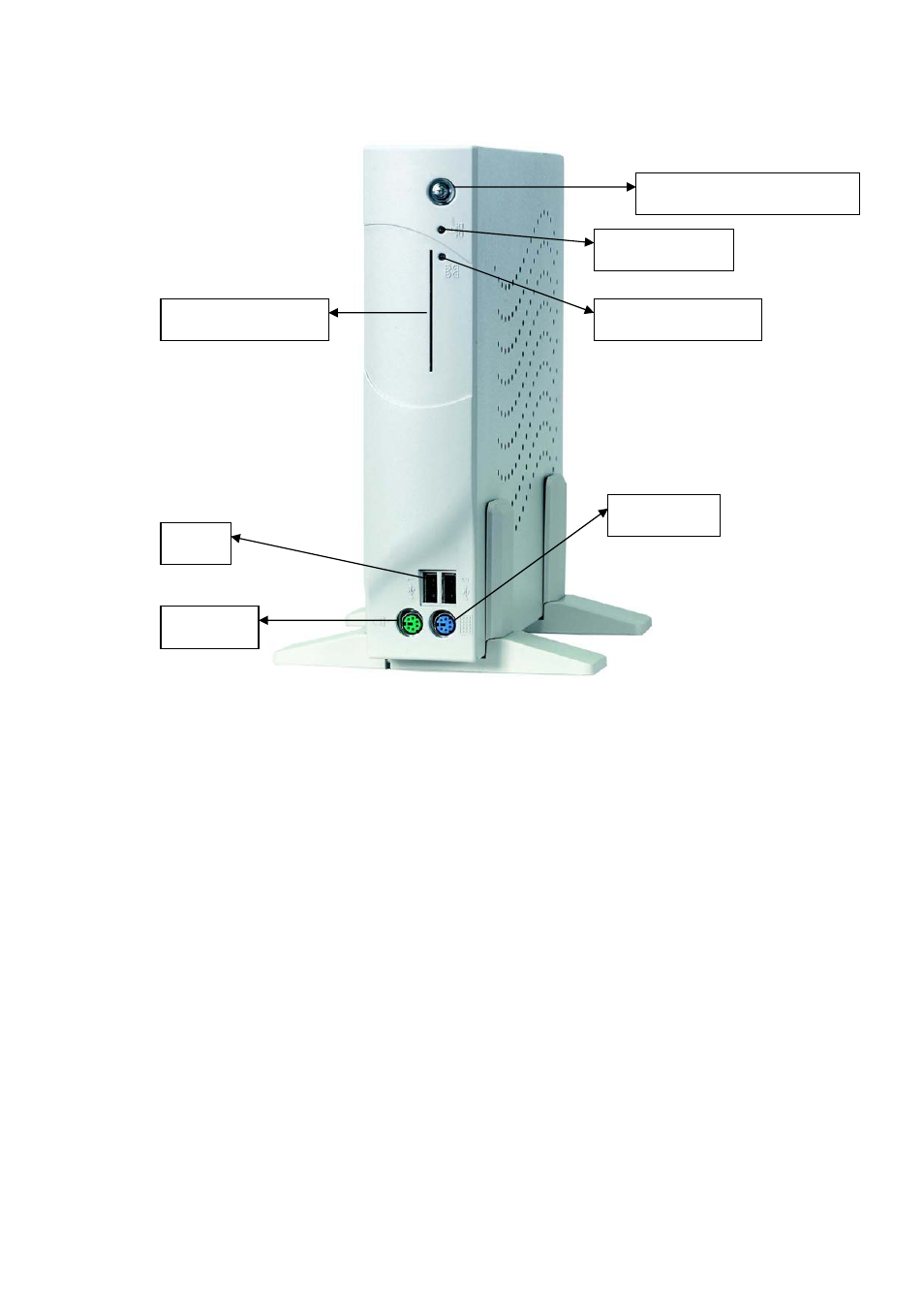

LAN Active
Smart Card LED Smart Card Slot
Keyboard
USB
Mouse
BOSSTX2 CE 5.0 User's Manual
