8

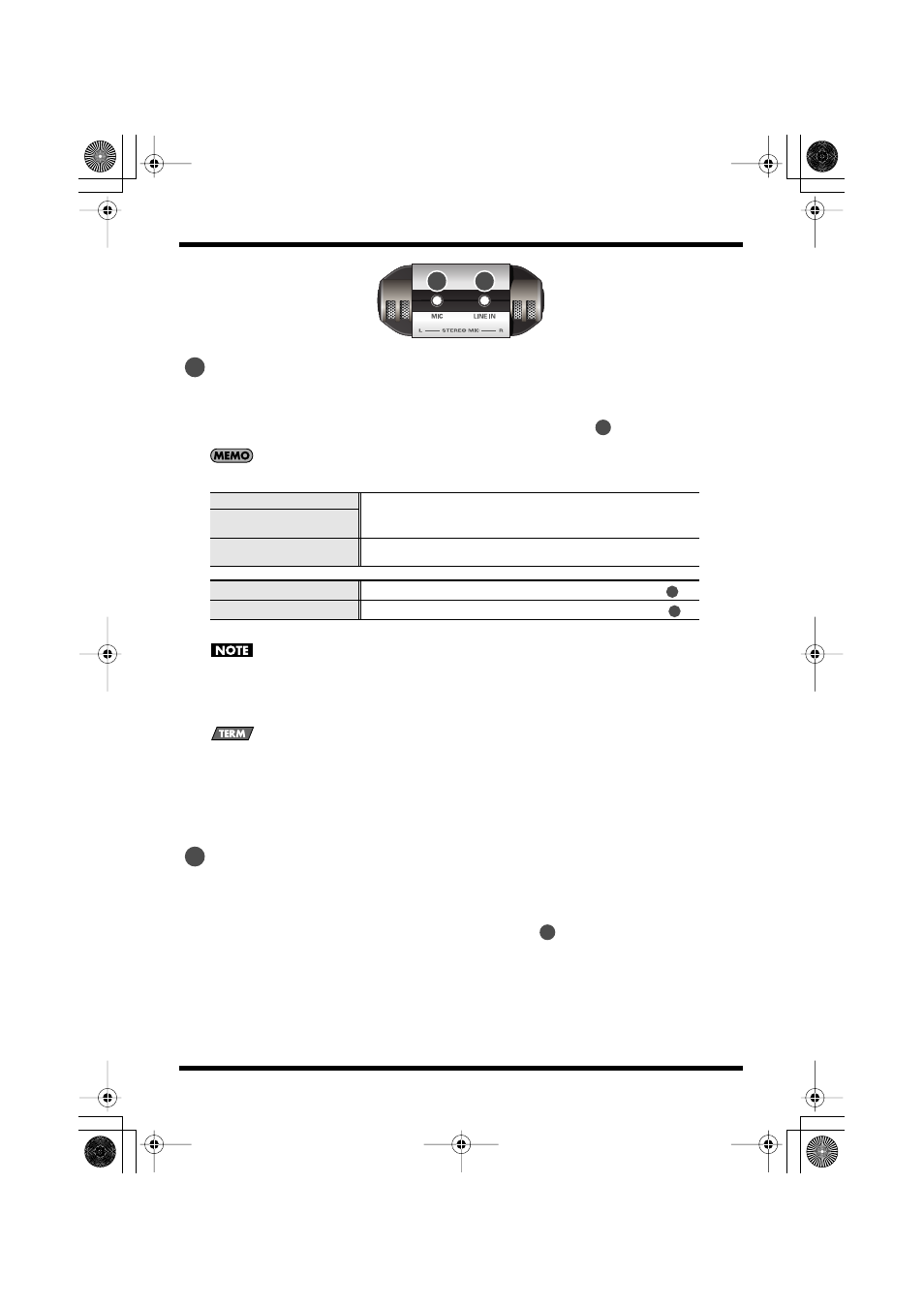

Names of things and what they do
fig.names4.eps_60
MICROPHONE INPUT jack
The MIC input jack is used to connect an external microphone.
➜ “Using external microphones” (p. 33)
The volume can be adjusted using the [(+) and (-) INPUT LEVEL buttons ].
When connecting an external microphone, please choose the setting according to the microphone type.
• When connecting a dynamic microphone or a battery-powered microphone, be sure to use the
Screen> to set the unit so plug-in power is not supplied to the microphone.
The microphone may be damaged if used with the improper setting.
• If a cable is connected to the [LINE IN Jack], then no sound is input via the [MIC Input Jack].
Dynamic microphone
The durable dynamic microphone is suitable for vocal or instrumental recordings. It does not require a power
supply.
Condenser microphone
The sensitive condenser microphone is suitable for recording quiet sounds, such as live instrumentals or meetings.
It requires a power supply from either batteries or plug-in power.
LINE IN jack
When inputting audio signals from audio equipment or digital instruments, use a cable
with a stereo-mini plug to connect the R-09 to the device.
➜ “Recording from cassettes or CDs” (p. 39)
Volume is adjusted with the [(+) and (-) INPUT LEVEL buttons ].
Dynamic microphone
Use the
Battery-powered condenser
microphone
Plug-in powered condenser
microphones
Use the
Stereo microphone Set to stereo with the [EXTERNAL MICROPHONE TYPE Switch ].
Monaural microphone Set to monaural with the [EXTERNAL MICROPHONE TYPE Switch ].
20 19
19
14
22
22
20
14
