Instruction Manual
IB-106-340 Rev. 3.0
December 2003
Rosemount Analytical Inc. A Division of Emerson Process Management
Maintenance and Service 9-25
Oxymitter 4000
37260014
4
NOTE: A STANDARD SPS 4000 IS EQUIPPED WITH
TEFLON TUBING AND BRASS FITTINGS. OPTIONAL
STAINLESS STEEL TUBING AND FITTINGS ARE ALSO
AVAILABLE. REFER TO SECTION 11, REPLACEMENT
PARTS, FOR ORDERING INFORMATION.
1
2
3
25
5
6
8
9
7
12
10
11
13
14
15
21
23
24
22
18
19
20
2
(REF.)
16
17
1. Elbow
Fitting
2. Tubing
3. Straight
Fitting
4. Elbow
Fitting
5. Bracket
6. Screw
7. Conduit
Fitting
8. Reference Air Pressure Regulator
(Optional)
9. Straight Fitting (Optional)
10. Elbow Fitting (Optional)
11. Tubing
(Optional)
12. Elbow Fitting (Optional)
13. Screw
14. Elbow Street Fitting (Optional)
15. Elbow
Fitting
16. Reference Air Flowmeter (Optional)
17. Calibration Gas Flowmeter
18. Tubing
19. Check
Valve
20. Flare
Fitting
21. Elbow
Fitting
22. Elbow Street Fitting (Optional)
23. Straight Fitting (Optional)
24. Tubing
25. Flowmeter
Bracket

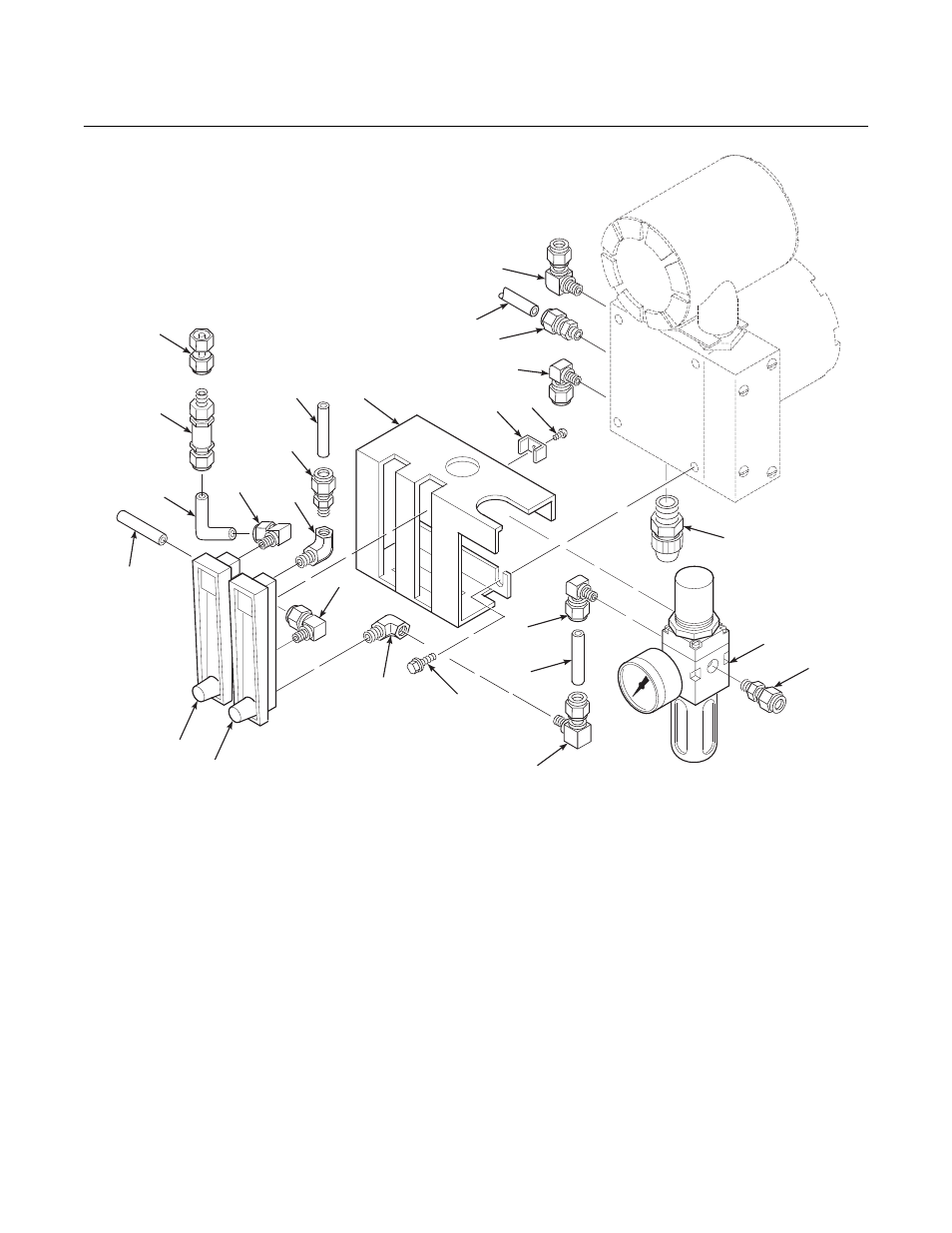

Figure 9-15. Calibration Gas and Reference Air Components
