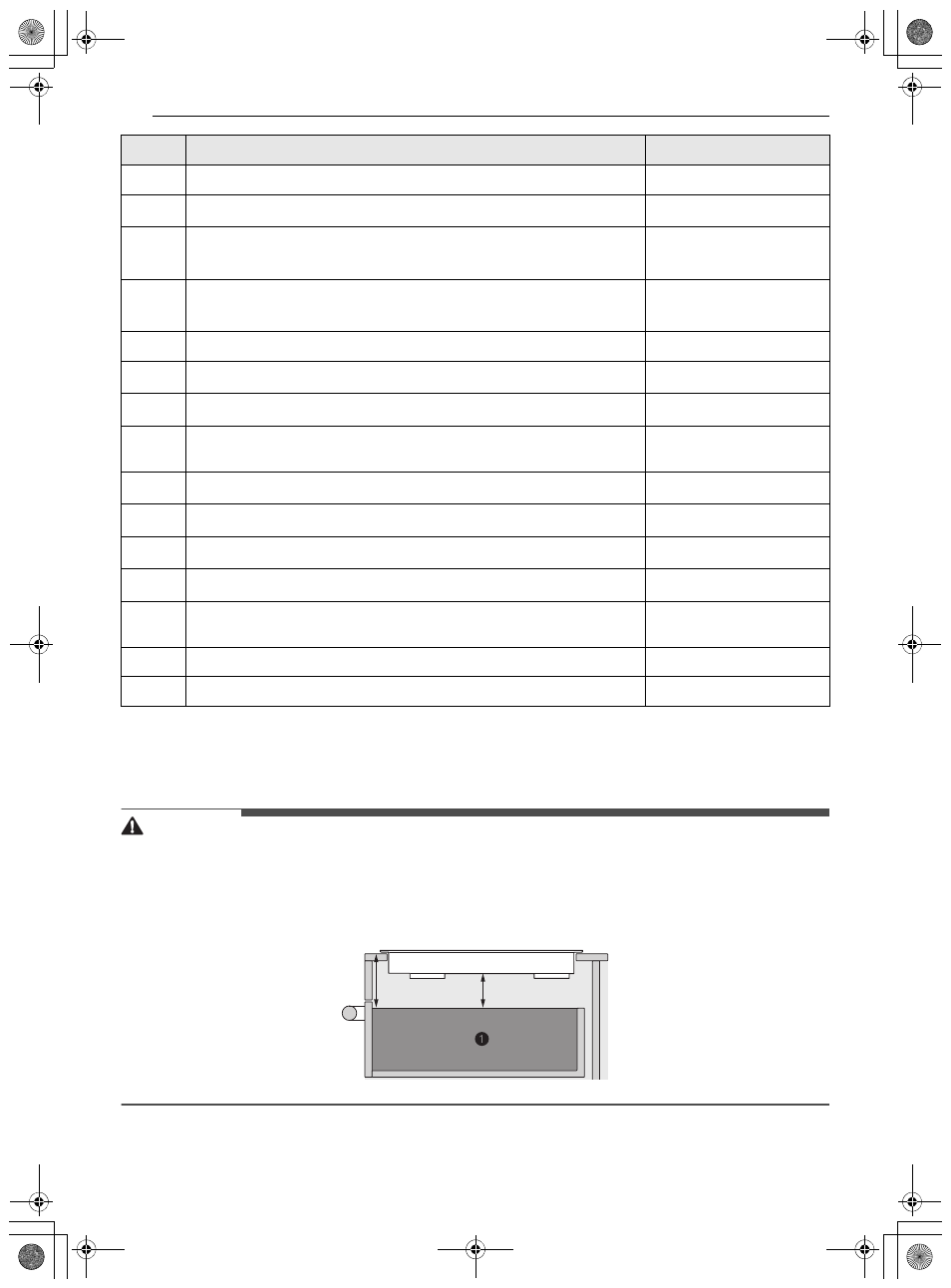

12 INSTALLATION
All dimensions are stated in inches and millimeters (mm).
Allow 2
″
(50 mm) space below the armored cable opening to clear the electric cable and allow space for
installation of the junction box on the wall at the back of the cooktop.
Thickness of glass: 3/16" (4 mm)
CAUTION
• To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located
above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a
range hood that projects horizontally a minimum of 5
″
(127 mm) beyond the face of the cabinets.
• It is very important to keep 3 5/16" (84 mm) distance between the cooktop and a drawer or oven a
underneath it.
G Height of conduit 1 1/8" (29 mm)
H Distance from side edge of cutout to side of counter 2 1 1/8" (28 mm)
I Width of cutout 2 34 3/8" (873 mm)
1 34 1/2" (876 mm)
J Depth of cutout 2 19 13/16'' (503 mm)
1 19 15/16'' (506 mm)
K Depth of bottom cabinets 24" (610 mm)
L Distance from front of counter to front edge of cutout 2 2 3/16" (55 mm)
M Distance from rear edge of cutout to nearest combustible surface 2 2 1/16" (52 mm)
N Height below cutout (Empty space is needed underneath the cooktop
for optimum performance.) 2 5 5/8" (142 mm)
O Depth of overhead cabinets 1 13 ″ (330 mm)
P Clearance from top of cooking surface to bottom of overhead cabinets 2 30" (762 mm)
Q Clearance from top of cooking surface to bottom of overhead cabinets 2 36 ″ (914 mm)
R Clearance from countertop to bottom of adjacent cabinets 2 18
″
(457 mm)
S Distance from edge of cooktop to nearest combustible wall (either side
of unit) 2 2" (50 mm)
T Junction box (approximate location) 10 ″ (254 mm)
U Junction box (approximate location) 12
″
(305 mm)
- Dimension/Clearance 36" Cooktop
3 5/16 " (84 mm) 5 5/8 " (142 mm)
