9
8

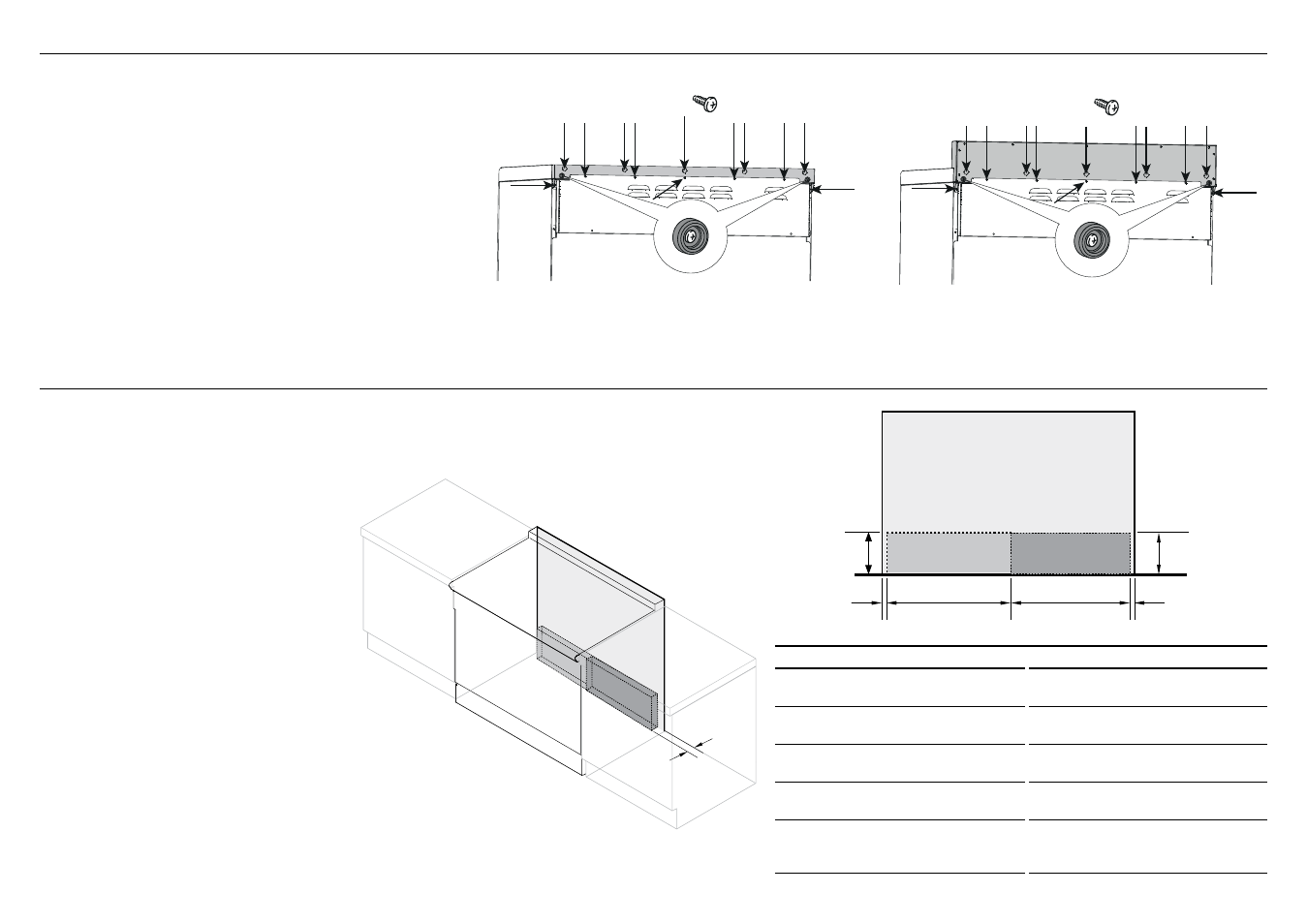

FITTING THE OPTIONAL BACKGUARD
Island trim and backguard
● It is mandatory to install and use the appliance with either
the island trim or the optional backguard correctly in place.
● The island trim is already fitted to the appliance while the
backguard can be purchased as a separate kit.
● If replacing the island trim with the backguard, assemble it
by using the same screws/spacers used for fixing the island
trim.
Grounded outlet (Gas Gas)
● The electric cord with 3-prong ground plug
(NEMA 5-15P) has a length of 72” (1830mm).
Grounded outlet (Dual Fuel)
● The electric cord with 4-prong ground plug
(NEMA 14-50P) shall have a minimum length
of 48” (1220mm) beyond the back of the
range.
9
LOCATION OF ELECTRICAL & GAS SUPPLY
Final position of cooker against wall
Left side
of cavity
Floor
Gas Electricity
E
B C
A D D A
SUPPLY AREA DIMENSIONS inches (mm)
A Distance from either edge of
Range to supply area 3/16” (5)
B Height of gas supply area (from
floor) 2 15/16” - 4 15/16” * (75-125)*
C Height of electrical supply area
(from floor) 2 3/16” - 4 1/8” * (55-105)*
D Width of gas and electrical
supply areas 14 3/4” (375)
E Depth of supply area (ie
maximum protrusion of gas and
electrical connection from wall) 3 15/16” (100)
* Depending on adjustment of feet
12 x
Fig. 1.3a
A
B
12 x
Fig. 1.3b
A
B
