12
!2

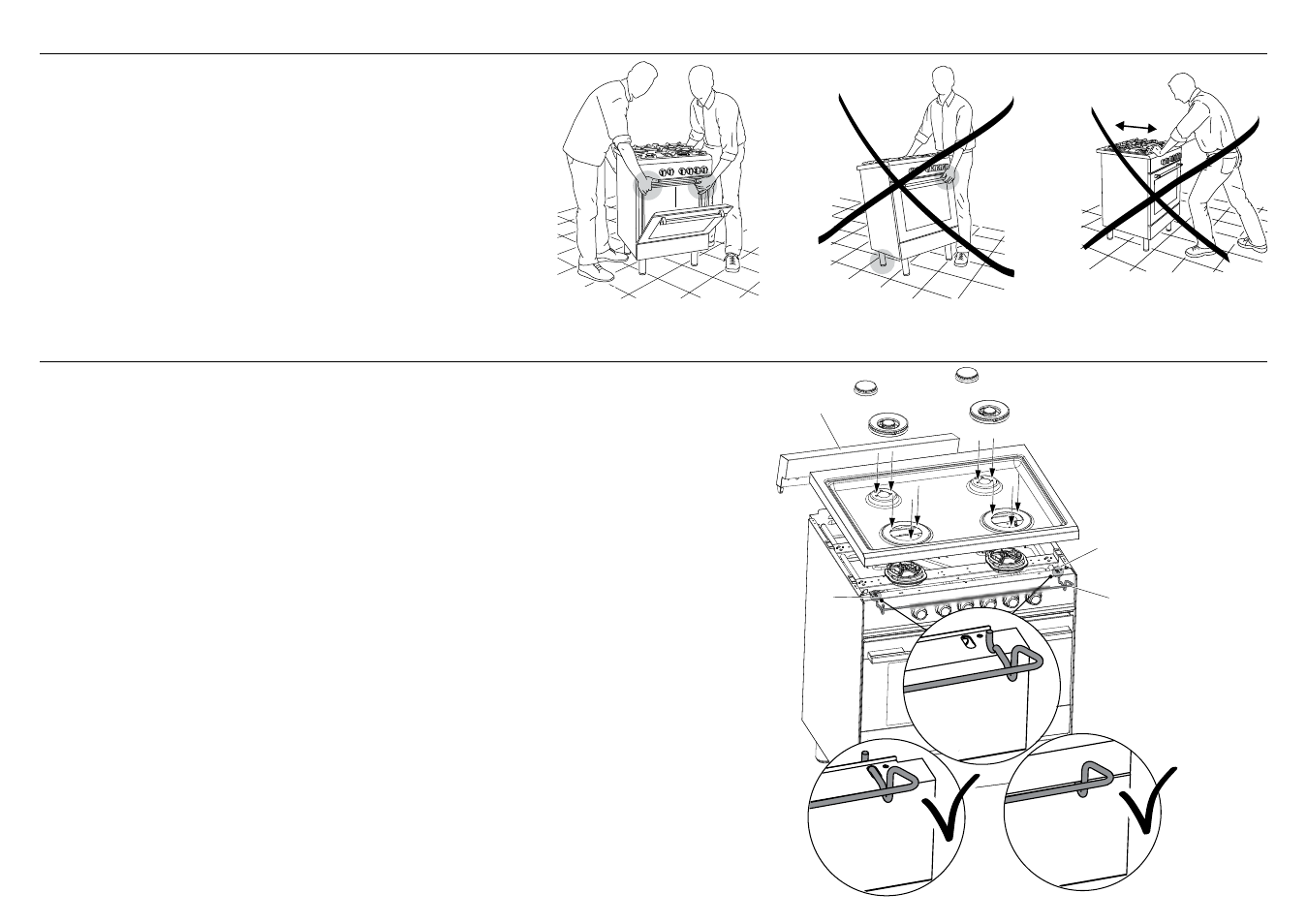

MOVING THE RANGE
!3
INSTALLING THE COOKTOP FRONT GUARD
Models without hob rail only
To increase the clearance between the front edge of the cooktop and
the burners it is possible to install the cooktop front guard supplied with
the appliance.
IMPORTANT
To install or remove the guard it is necessary to remove the cooktop.
Attempting to install or remove the guard without disassembling the
cooktop will result in permanent damage to the appliance.
Install the front guard as shown:
1 Remove the backguard or island trim A (see ‘Fitting the optional
backguard’)
2 Remove the grates, the burner caps and the flame spreaders.
3 Unscrew cooktop fixing screws B .
4 Remove the cooktop. Note: Take extra care not to damage the gaskets
fitted above the burner cups (below the cooktop). If they are damaged
they must be replaced.
5 Install the front guard C by inserting the wire terminals into the
corresponding holes above the control panel D .
6 Reassemble the cooktop and the other components.
Note: Take extra care not to damage the gaskets fitted above the burner
cups (below the cooktop).If they are damaged they must be replaced.
C
B
D
D
A
IMPORTANT!
● When raising the range to upright position always ensure two
people carry out this manoeuvre to prevent damage to the
adjustable feet.
● Be careful: do not lift the range by the oven door handle, the
hob rail or the cooktop trim as this may damage the appliance.
● When moving range to its final position DO NOT DRAG.
Lift feet clear of floor.
