Pressure regulator installation
All heavy duty, commercial type cooking equipment must have a
pressure regulator on the incoming service line for safe and efficient
operation, since service pressure may fluctuate with local demand.
●
The regulator supplied with this range must be installed before
any gas connections are made.
●
Use supplied pressure regulator only.
!6
GAS CONNECTION
1

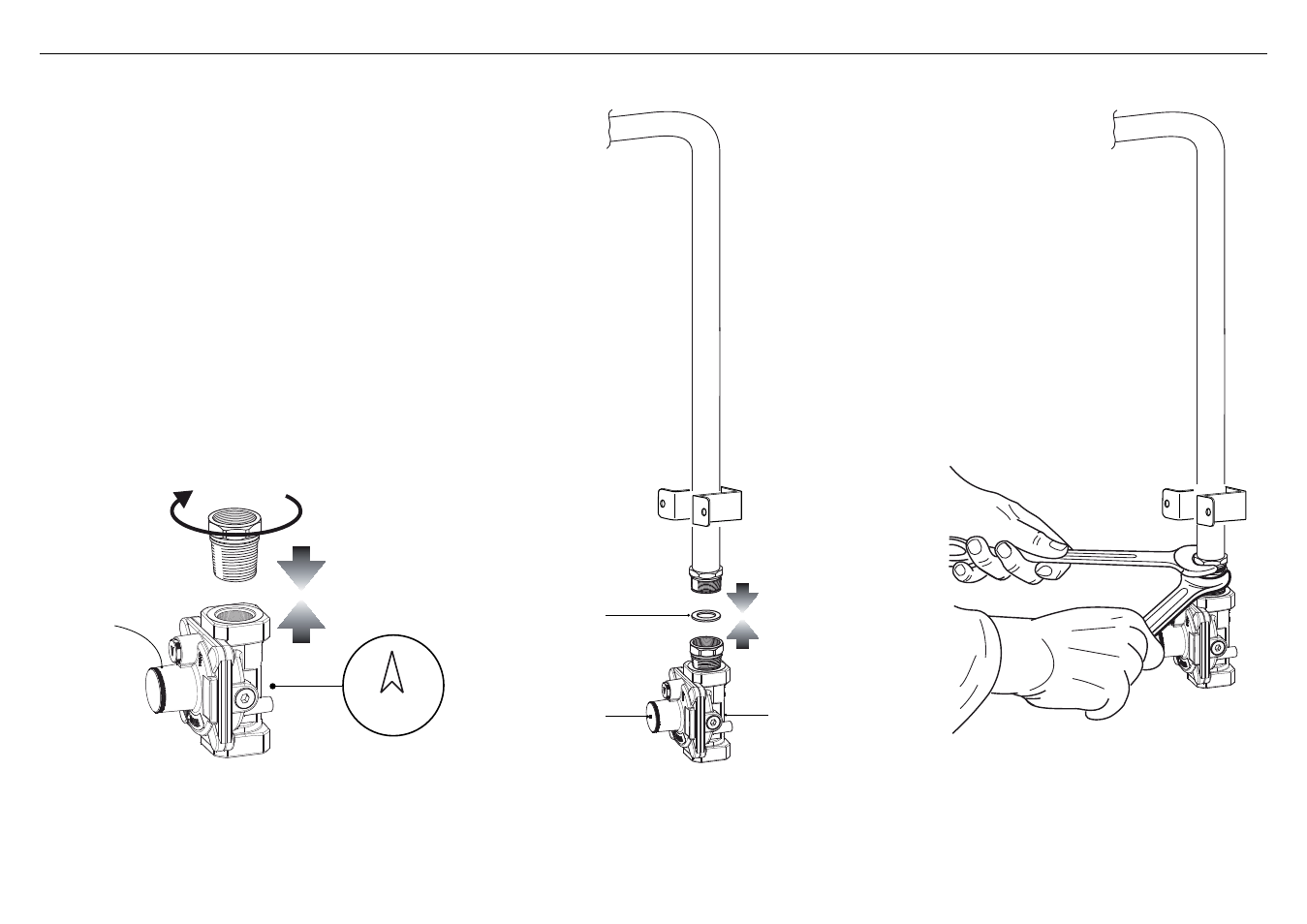

Connect the 1/2” (12.7mm) NPT (conical) male connector
to the pressure regulator and tighten by using a wrench.
Do not over tighten the connector.
Over tightening may crack regulator.
2
Connect the 1/2” (12.7mm) NPT connector and pressure regulator
group to the range manifold male pipe fitting ensuring the supplied
gasket is positioned between.
The regulator cover must be oriented toward the front side of
the range.
Arrow
Regulator cover
Lock
Gasket
Arrow (not visible)
Regulator cover
IMPORTANT!
Use two wrenches to tighten the connection.
