13
!4
INSTALLING THE ANTI-TIP BRACKET

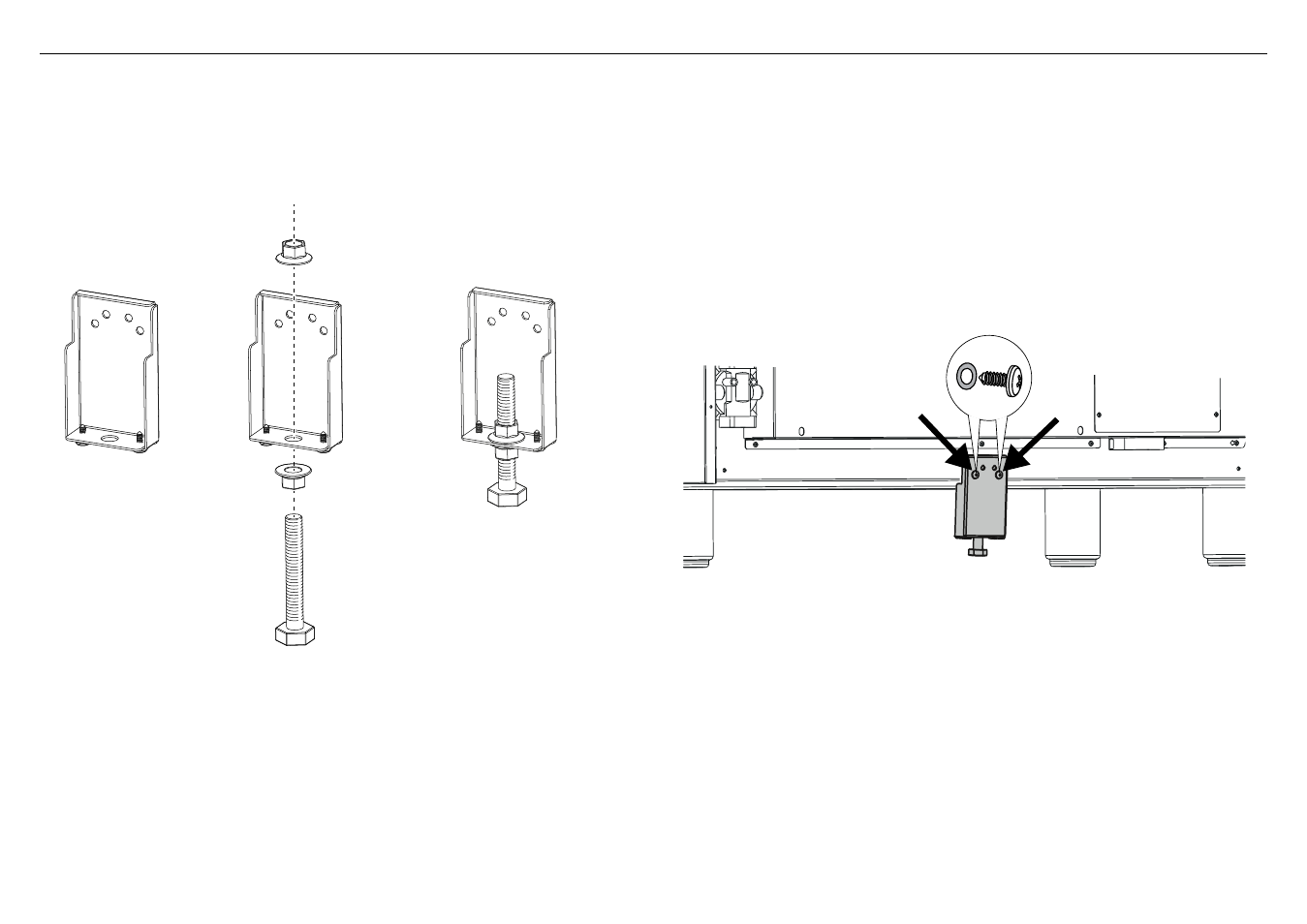

1 Thread the bolt through the adjustable bracket and fix in place using the two supplied nuts.
Ensure the nuts are well tightened.
2 Fix the adjustable bracket to the back of the range (centered on the lower edge) using the
two supplied screws and washers.
The anti-tip bracket has two components:
● the adjustable bracket
● the stability bracket
IMPORTANT!
You must install both parts of the anti-tip bracket and ensure they are
properly fitted together to prevent the range from tipping.
To fit the anti-tip bracket
1 2 3
