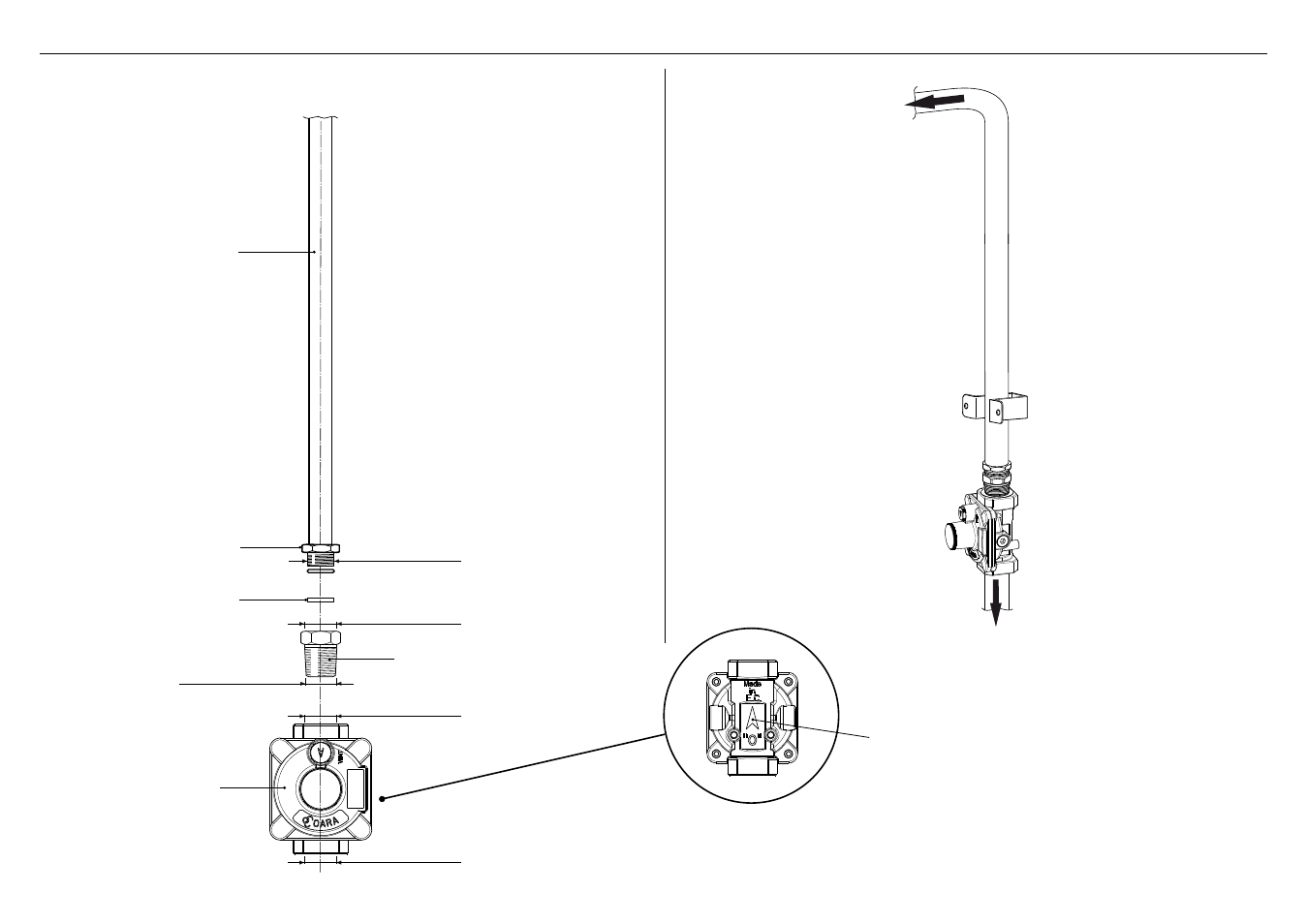

Gas connection specification
!6
GAS CONNECTION
Range manifold
1/2” G cylindrical
(ISO 228-1) male
To range
1/2” G cylindrical
(ISO 228-1) female
Male pipe fitting
Gasket
Connector
1/2” NPT
(conical) male
1/2” NPT
female
Pressure regulator
1/2” NPT
female
To mains connection
Arrow
IMPORTANT!
Check the correct positioning of the gas regulator.
The arrow on the back of the gas regulator must
be oriented toward the connector.
