32

Note 1: In order to protect the bubble from dirt and scrape, please put on the gloves

before installing the bubble.

Note 2: The camera module on the mechanical part is very sensitive. Please be careful

when installing this part.

13. Turn on the power, and start to operate the EPTZ3100.

Note: When turning on the power, EPTZ3100 will enter self-inspection mode, and carry out

a self-testing program. After finishing self-inspection, you can start to operate the

EPTZ3100.

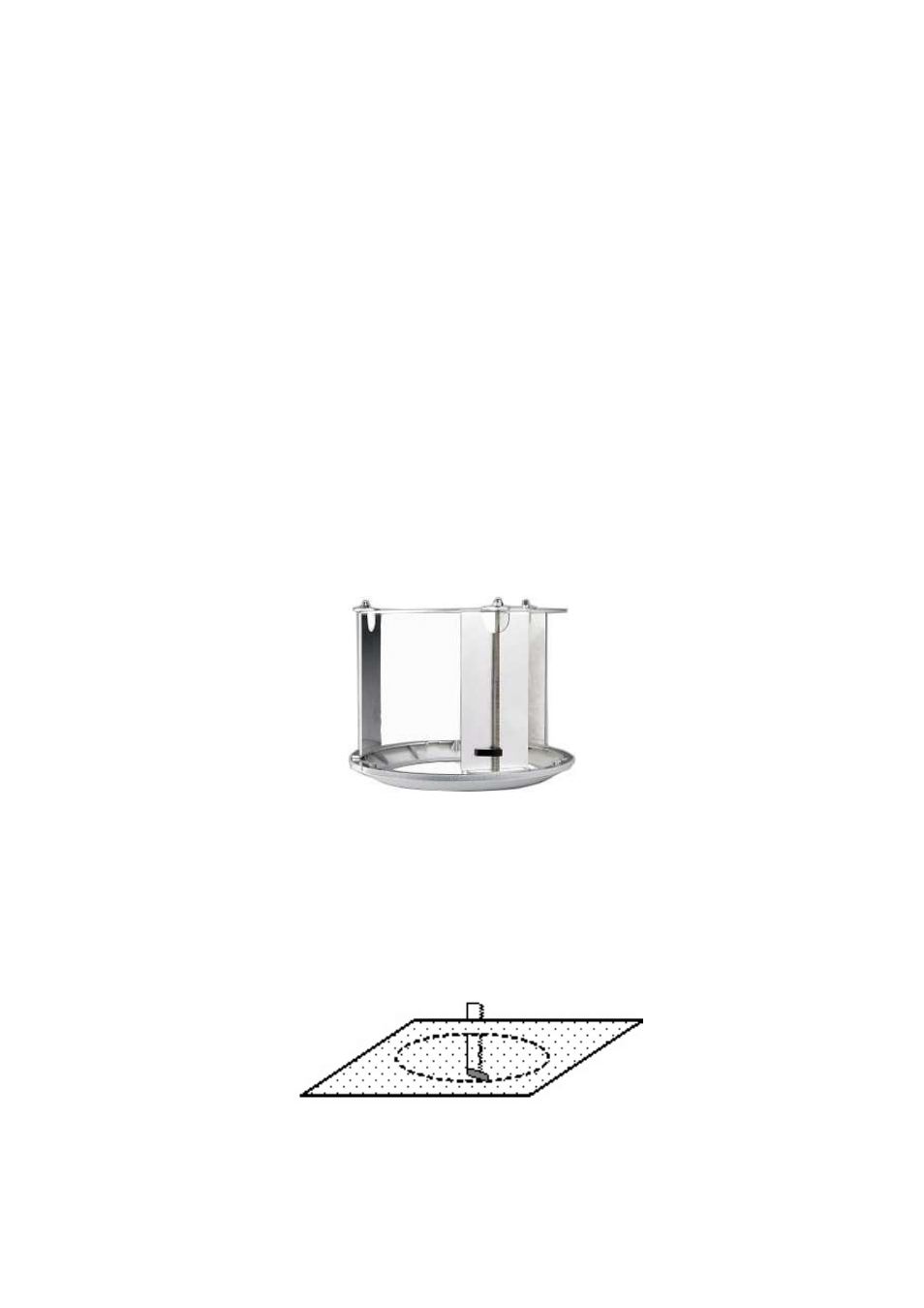

2.4.4. EPTZ3100 Dome Camera Ceiling Mount Installation

(Indoor Recessed Mount Bracket & Surface Ring)

The indoor recessed mount bracket and surface ring are used for ceiling mount installation.

Installation steps are described below:

1. Use the ceiling template provided to cut the ceiling.

Cut the ceiling
