5. ATTACH CART LEGS TO COOKING BOX ASSEMBLY
Parts Required:
1 x Cooking Box Assembly (#2)
2 x Large Step Screws (#E)
Installation:
• Flip the Cooking Box Assembly on its lid into the
cardboard packaging it came in. Note 5A.
• Open the Cart Leg Assembly with the handle on
one side and the wheel on the other. Line the holes
up to the pegs on the underside of the Cooking Box
Assembly. Note 5B
• Use a Large Step Screw to secure the Cart Leg Assembly
to the Cooking Box. Note the detail in 5C.
• Repeat for the opposite side.

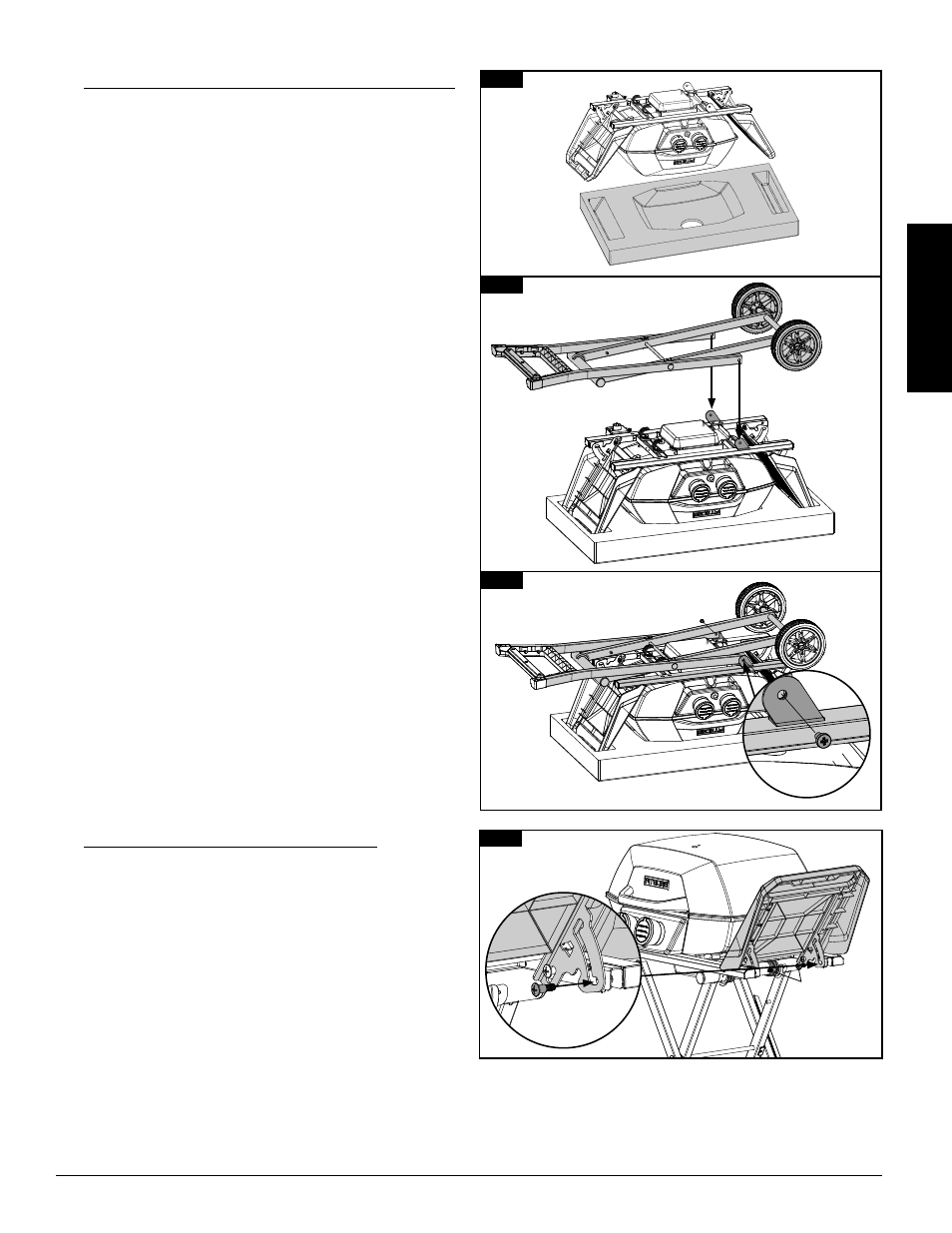

5A
5B
5C
2
E
6
F
F
6. SECURE THE SIDE SHELF TO THE GRILL
Parts Required:
4 x Small Step Screw (#F)
Installation:
• Turn the assembly right side up and reference the
Tailgating and Travel Position section to expand
the grill into a standing position.
• Pull the right side table up, shown in illustration 6.
• Secure two Small Step Screw into the slide latch cut
out to attach the side table to the grill support. Note
the detail in 6.
• Repeat on opposite side of the left side table.
